Model/Modelo/Modèle
88776-p
Series/Series/Seria
Invari
TM
Read all instructions prior to installation.
Lea todas las instrucciones antes de hacer la instalación.
Veuillez lire toutes les instructions avant l'installation.
Register Online
Regístrese en línea
S'enregistrer en ligne
www.brizo.com/customer-support/product-registration
To reference replacement parts and access additional
technical documents and product info, visit www.brizo.com
Para referencia sobre las piezas de repuesto y acceder a
documentos técnicos adicionales e información del producto,
visite www.brizo.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.brizo.com
?
www.brizo.com
1-877-345-BRIZO (2749)
brizosupport@brizo.com
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :

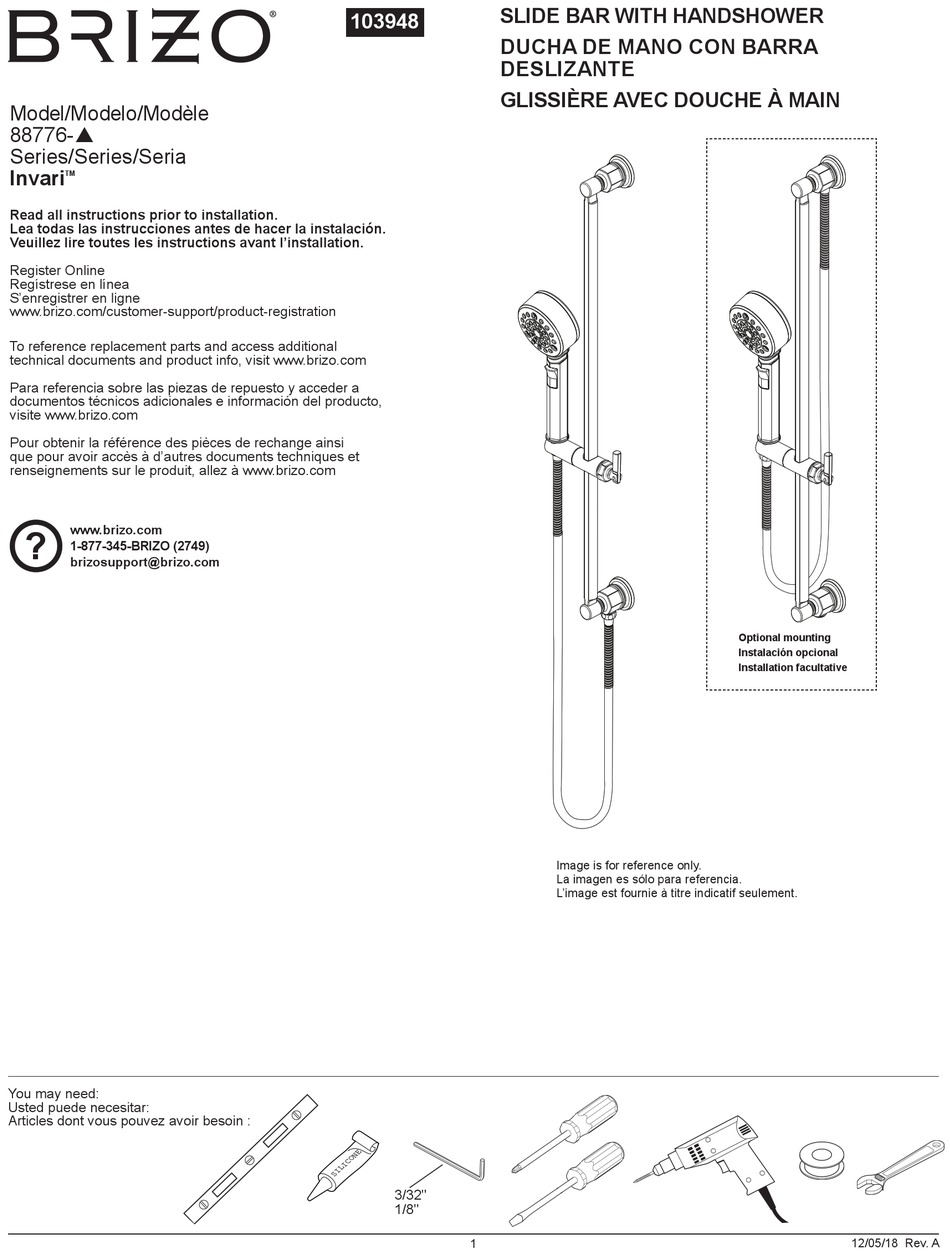

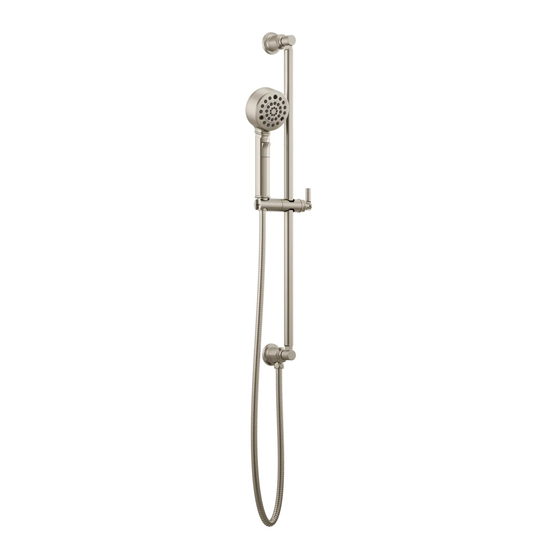

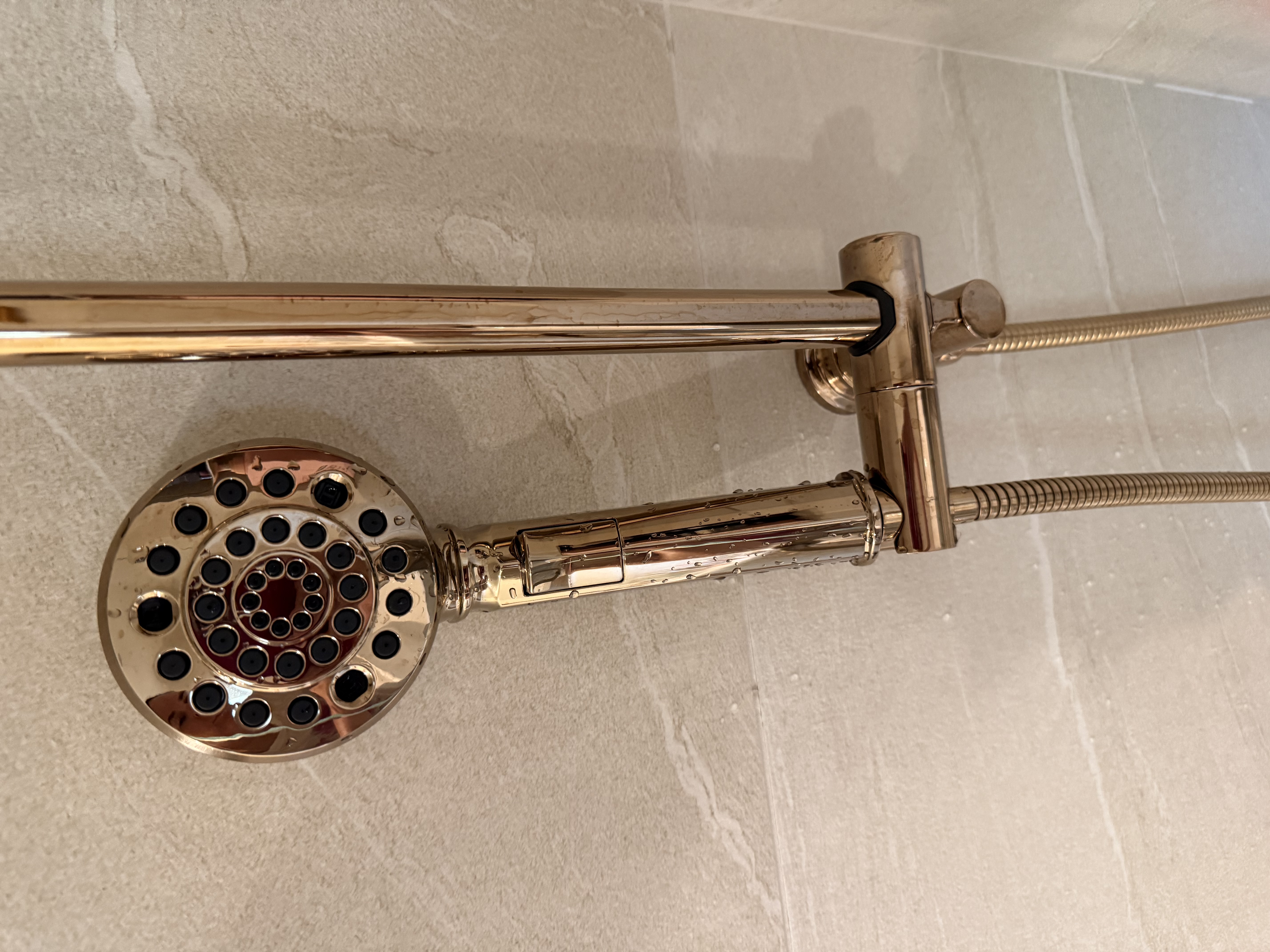

SLIDE BAR WITH HANDSHOWER
103948
DUCHA DE MANO CON BARRA
DESLIZANTE
GLISSIÈRE AVEC DOUCHE À MAIN
3/32"
1/8"
1
Image is for reference only.
La imagen es sólo para referencia.
L'image est fournie à titre indicatif seulement.
Optional mounting
Instalación opcional
Installation facultative
12/05/18 Rev. A
