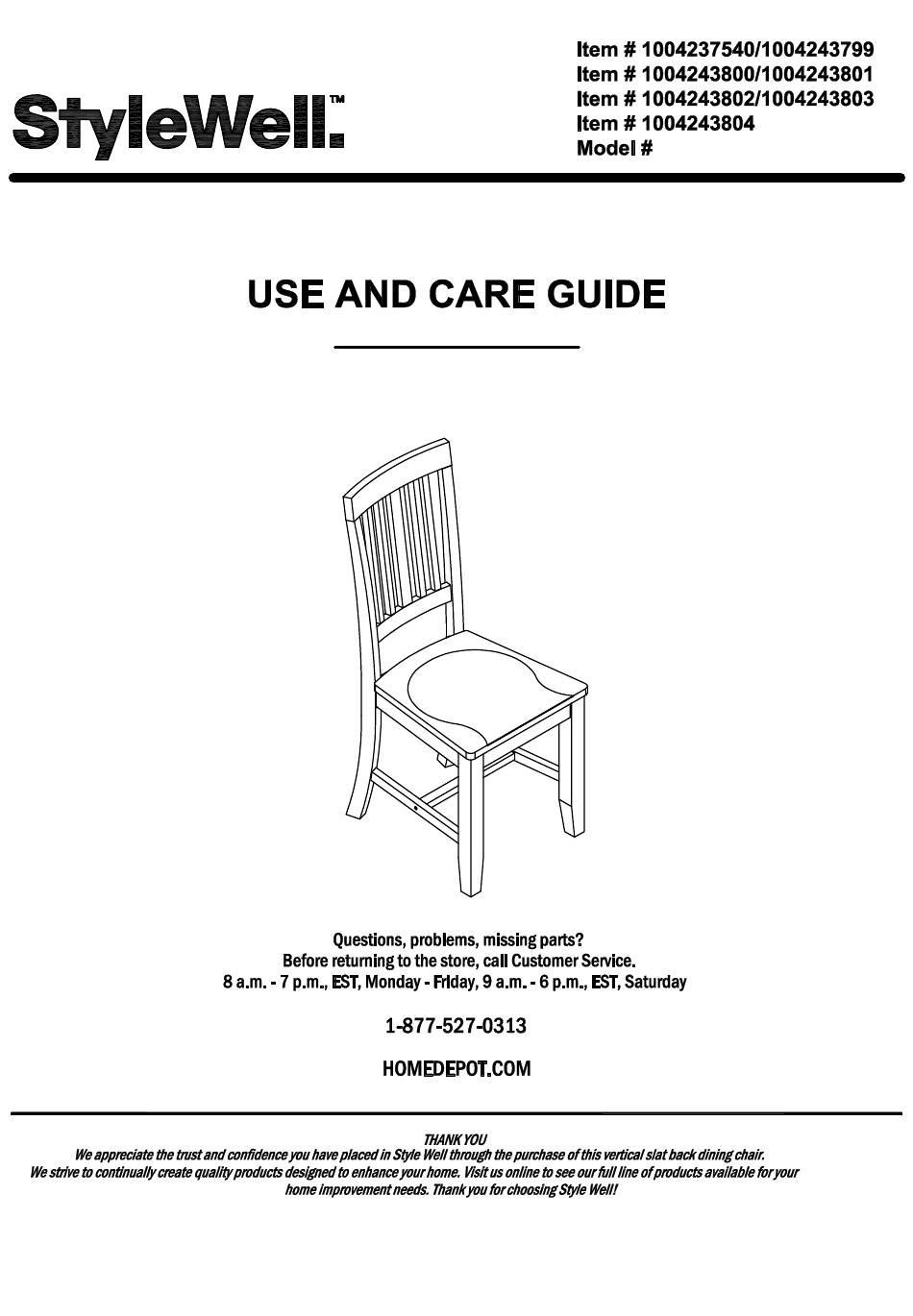

- Page 1 DC 2004 CHR VERTICAL SLAT BACK DINING CHAIR...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Tools Required ................. 3 Hardware Included ..............3 Safety Information ............2 Warranty ................. 2 Pre-assembly (continued) ..........4 1 Year Warranty ................. 2 Package Contents ..............4 What is Covered ................ 2 Assembly ............... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Remove all Packaging materials , staples and packing straps form the carton . Refer to Parts List and Hardware List , and ensure parts and hardware are correct before assembly . Contact customer service for missing parts . Place all wooden parts on a clean , flat , and soft surface (e.g.carpet or rug) to prevent scratch and damage to parts . -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Quantity Descrlption Backrest frame Seat Panel Left Side Rail Right Side Rail Rear Stretcher Left Leg Right Leg... -
Page 5: Assembly
Assembly Join seat panel to backrest frame Use 4 screws(FF) together with washer(CC&BB) to fasten the seat panel(B)to backrest frame(A) by allen key (DD). HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance. - Page 6 Assembly Use allen key (DD) to drive the screw(AA) with washers(CC&BB) as shown HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 7 Assembly Attach rear stretcher(E) to the side rail(C&D) with screws (GG),pay attention to the rear stretcher correct position. as shown front 319mm back 312.8mm HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 8 Assembly Attach rear stretcher(E) and side rail(C&D) to the chair backrest frame with screw(GG) HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 9 Assembly Use screw(GG) to fasten left leg(F) and right leg(G)to side rails(C&D HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 10 Assembly Use allen key(DD) to tighten left leg(F) and right leg(G)to the seat panel(B) with screw(EE) and washer(BB&CC) HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
-
Page 11: Maintenance
Maintenance Keep the product away from direct heat and sunlight . Prolonged exposure to heat sources may cause scorching, or even cause color to fade . Regular vacuuming or light brushing helps to remove dirt and prevent soil build-up, which increases the appearance of wear . Periodically (every 90 days) make sure that the screws arefully tightened . - Page 12 Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
