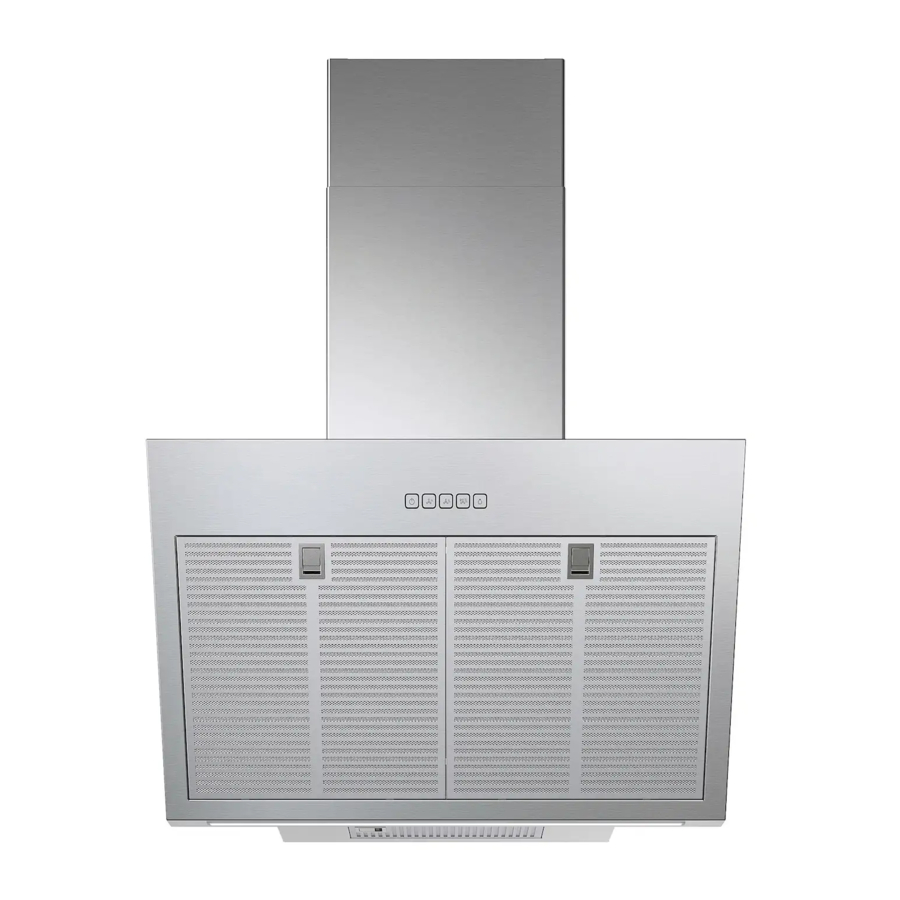

IKEA BEMOTA Manual

Wall mounted hood
Hide thumbs Also See for BEMOTA:
Table of Contents

Advertisement

Quick Links

Download this manual
BEMOTA
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEMOTA and is the answer not in the manual?

Questions and answers

Related Manuals for IKEA BEMOTA

Summary of Contents for IKEA BEMOTA

  • Page 1 BEMOTA...
  • Page 3 ENGLISH Please refer to the last page of this manual for the full list of IKEA appointed Authorized Service Centre and relative national phone number...

  • Page 4: Safety Information

    Product description Care and cleaning Environment concerns What to do if... IKEA GUARANTEE Safety information For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it.
  • Page 5 ENGLISH • If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back...
  • Page 6 ENGLISH use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • Children should be supervised to ensure that they do not play with the appliance.

  • Page 7: Installation Modes

    ENGLISH circulation around the hood. Important: If the hood is supplied • Switch off or unplug the appliance from the mains supply before carrying without charcoal filters and installed on out any maintenance work. recirculation mode, these must be fitted •...

  • Page 8: Product Description

    ENGLISH Product description Upper chimney Lower chimney Hood body LED Lighting Grease filter Control panel Control Panel BUTTON FUNCTION Turn the motor on/off at speed one. Turn off each speed. Speed Turn the motor on at speed two / Activate charcoal filter alarm Pres and hold the button for approximately 2 seconds, with all the loads turned off (Motor+Lights), to turn the Activated Charcoal Filter alarm on.

  • Page 9: General Hints

    ENGLISH General hints • Switch ON the hood at minimum speed when you start cooking and keep it running for few minutes after cooking is finished. • Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations.
  • Page 10 ENGLISH Grease Filters Clean or replace the filters continuously ac- cording to below time intervals, to maintain good performance of the hood and to prevent a potential fire hazard, caused by excessive grease build-up. The grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
  • Page 11 ENGLISH What to do if... If there is a fault, first try to find a solution If you operated the appliance wrongly, to the problem yourself. If you cannot find a or the installation was not carried out solution to the problem yourself, contact an according to the Assembly instructions, the authorized service center.

  • Page 12: Technical Data

    ENGLISH Technical Data Unit Value Product Type Wall mounted hood Width Depth Dimensions Exhaust Height min/max 815/1065 Recirculating Height min/max 912/1185 Airflow max* - Exhaust m3/h Noise max* - Exhaust Airflow max* - Recirculating m3/h Noise max* - Recirculating Total Power Type LED BAR Lamps info...

  • Page 13: Energy Efficiency

    ENGLISH Energy efficiency Product Information according to EU n°66/2014 Unit Value BEMOTA Model identifier 103.923.33 Annual Energy Consumption kWh/a 34,8 Time increase factor Fluid Dynamic Efficiency 37,6 Energy Efficiency Index 36,6 Measured air flow rate at best efficiency point m3/h...

  • Page 14: Environment Concerns

    Service Centre. Sales of your appliances, like clarifications on See the relative national phone numbers on the installation of the IKEA appliance in the dedicated next page. IKEA kitchen furniture or for clarification on For quicker service, always refer to the IKEA...
  • Page 15                                         ...
  • Page 16 23199 © Inter IKEA Systems B.V. 2018 AA-2040008-7...
