Summary of Contents for Paton PSI 315 PRO

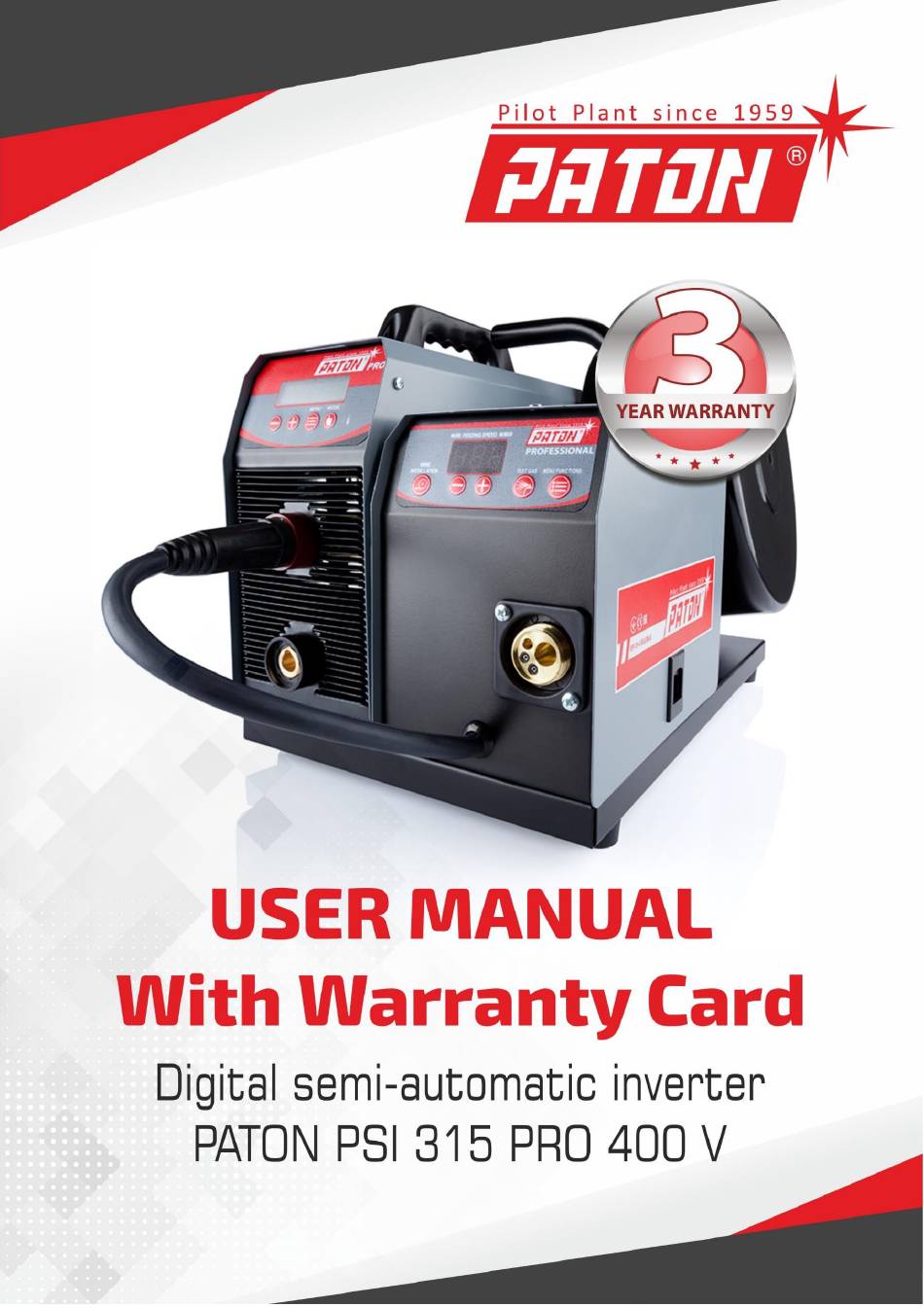

- Page 1 ® 0 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA...
-
Page 2: Table Of Contents
WELDING CRATER CURRENT ................21 4.9. WELDING AT PULSE WELDING CURRENT ............SEMIAUTOMATIC ARC WELDING PROCESS (MIG/MAG) ......5.1. PREPARING THE WELDING UNIT FOR OPERATION ........23 ® 1 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... - Page 3 WASTE ELECTRICAL & ELECTRONIC EQUIPMENT ......... SAFETY INSTRUCTIONS ..................35 ELECTRICAL SCHEMATIC DIAGRAM ..............38 ACCEPTANCE CERTIFICATE ................. 39 WARRANTY CARD ....................® 2 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA...
- Page 4 DIGITAL SEMIAUTOMATIC INVERTER PRODUCT: PATON PSI 315P 400V DC MIG/MAG TIG/MMA The statement is based on a single evaluation of one sample of above mentioned products. It does not imply an assessment of the whole production. The manufacturer should ensure that all product in series production are in conformity with the product sample detailed in this report.
-
Page 5: General Information

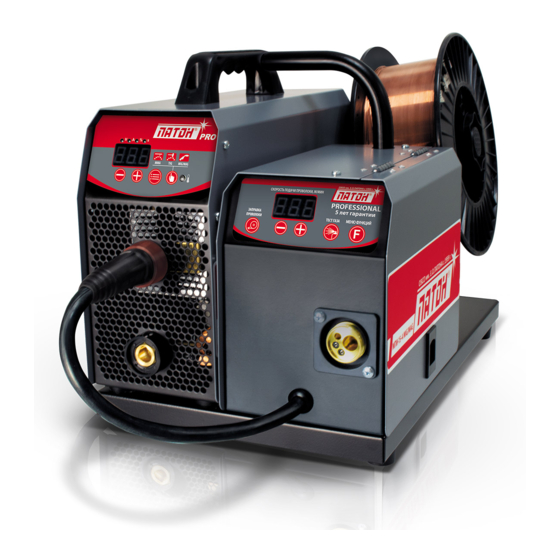

Up 315 A GENERAL INFORMATION ® The digitally controlled invertor-rectifier welding units PATON PSI 315Р / 400Р - 400V are designed for direct-current gas-shielded welding according to such welding processes as a manual arc welding process (MMA), an argon arc welding process (TIG), and a semiautomatic arc welding process (MIG/MAG). -
Page 6: Technical Characteristics
® The basic advantages of the PATON welding units are the following: 1. The possibility to adjust welding parameters in wide ranges... - Page 7 Model urządzenia Cable length the cable conductor designation 2 … 11 m KG 1х35 16 mm PSI 315 PRO 400 V 3 … 16 m KG 1х50 25 mm ® 6 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA...
-
Page 8: Controls And Connectors
1.2. CONTROLS AND CONNECTRORS ® 7 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 9: Setting The Welding Unit Into Operation
(12) and the ground wire is connected to the "+" current socket. 2. SETTING THE WELDING UNIT INTO OPERATION ATTENTION! Read Section 16, "Safety instructions", before setting the welding unit into operation. ® 8 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 10: Proper Use
Such a condition is possible at large unbalance of phase voltages in the standard power supply system or if the welding unit is connected to the power supply system improperly. ® 9 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 11: Requirements For An Electrical Outlet
® 10 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 12: Operational Cycle Of The Manual Arc Welding Process
The procedure for changing the values of the operational parameters of the welding unit for the current welding process is described in Section 6.1. ® 11 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 13: Reduced-Voltage Welding Mode
The temporary reduction in the welding current makes it easier for the welder to peel off the stuck electrode. After separating the electrode from the product, the welding process can be resumed without any problems. ® 12 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 14: Welding Unit
As a result of the improved weld quality, the weld strength increases. ® 13 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... - Page 15 The aforementioned parameters should be set differently for different welding processes, depending on the requirements of the operator. Operations required to set these parameters for the current welding process are described in Section 6.1. ® 14 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA...
-
Page 16: Argon Arc Welding Process (Tig)
13. The device is ready for use. Enjoy Your work. If required, perform the additional functions specified for the argon arc welding process (see Section 6.1). ® 15 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 17: Operational Cycle Of The Welding Process Tig - Lift
To prevent surface melting of the electrode tip, the rate of lifting the electrode should correspond to the set welding current value. The period of linear current rise is discussed in Section 4.5. [TIME UP ARC] ® 16 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 18: Operational Cycle Of The Welding Process With Tig-2T
If this connector is not used, cover it in order to prevent contamination. Digital connection (-) motor power supply (+) motor power supply ® 17 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 19: Tig-2T Contactless Arc Starting Function
Before the operation, activate the protective device. ® 18 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 20: Preparing The Welding Unit For Operation Tig - 4T
I (A) t (s) The procedure for changing the values of the operational parameters of the welding unit is described in Section 6.1. ® 19 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 21: Tig-4T Contactless Arc Starting Function
By default, the period of linear increase of welding current is 1.0 s. The procedure for changing the values of the operational parameters of the welding unit is described in Section 6.1. ® 20 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 22: Linear Decrease Of Welding Current
100 A. As a result, the average heat input to the weld will not change. ® 21 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 23: Semiautomatic Arc Welding Process (Mig/Mag)
As in the welding unit a standard KZ-2 euroconnector for a welding torch is used, any welding torch can be purchased at the option of the user ® 22 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 24: Preparing The Welding Unit For Operation
(1) in the welding machine. 20. By using the button (10) we can regulate the functions of the wire feeder ® 23 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 25: Operational Cycle Of The Welding Process - Mig/Mag
I (A) t (s) The procedure for changing the values of the operational parameters of the welding unit is described in Section 6.1. ® 24 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 26: Operational Cycle Of The Welding Process - Mig / Mag 2T
(the solenoid valve is closed with a delay). [TIME POST GAS] 5.2.2 CYCLE WELDING PROCESS - MIG / MAG FUNCTION 4T& 4T_ t, s t, s t, s ® 25 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 27: Function Of Pretreatment Gas Cleaning
[TIME UP VOLTAGE] release of the button, the welding process proceeds unchanged. The end of the welding process is the same as when the 4T function is running. This mode is offered by PATON as above the standard setting 5.3 FUNCTION OF PRETREATMENT GAS CLEANING This function is necessary to protect the welding zone from the harmful effects of atmospheric air and consists in pre-cleaning the welded place with shielding gas against electric arc ignition. -
Page 28: Function Of Burning Out At The End Of Welding
18 V. As a result, the average heat input to the weld will not change. ® 27 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 29: Setting The Welding Unit
(10) pressed for more than 5 seconds. Buttons (8) on the front panel are designed for changing the value of the function or basic parameter of wire feeder. ® 28 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 30: Switching To The Required Function
Voltage in the reduced-voltage welding mode: 40% (default value) POWER ARC a) 0 [OFF] … 100% at low currents (positive or negative increment 1%) FORCE ® 29 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 31: Argon Shielded Tungsten-Arc Welding Process (Tig)
Basic indicated parameter: welding current 100 A (default value) 0) [-2-] a) 15 ... 315 А (positive or negative increment 1 А) for PSI 315 PRO 400 V Function of the button on the welding torch: [LFT] (default value) a) [LFT] - contact arc starting, function TIG-LIFT... -
Page 32: Semiautomatic Arc Welding Process (Mig/Mag)
7.3. SEMIAUTOMATIC ARC WELDING PROCESS (MIG/MAG) Basic indicated parameter: welding voltage 19.0 V (default value) 0) [-3-] a) 12,0 ... 30,0 V (krok zmiany 0,1 V) for PSI 315 PRO 400 V Mode on the torch button [2T] (default value) a) 2T... -
Page 33: Operation With An Electric Generator
The packed welding unit can be transported by any means of transport, which ensure the integrity of the unit and compliance of the unit with the shipping rules established for the specified transport means. ® 32 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 34: Specification Data
– 1 pcs; 8. Operation manual of device 14. WARRANTY The Pilot Plant of Welding Equipment of the E.O Paton Electric Welding Institute guarantees the correct operation of the power supply if the costumers provided service conditions, storage and transportation. - Page 35 The warranty period is extended for the period of the warranty service machine to the service center. For PSI 315 PRO series welding inverters - 400 V - 3 years basic warranty. It is a mandatory condition that the service is carried out within the required time limits in an authorised service centre.
-
Page 36: Waste Electrical & Electronic Equipment
Protective clothing should not restrain movements. If possible, it should not be made of synthetic materials. Electrocution can be fatal !!! ® 35 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... - Page 37 Removing the outside cover of the device while it is connected to the network and using the device with the lid removed is forbidden. ® 36 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA...
- Page 38 It is recommended that the power line be provided with a separate protection against the shock absorber. ® 37 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA...
-
Page 39: Electrical Schematic Diagram
17. ELECTRICAL SCHEMATIC DIAGRAM BIS-0403 BUV-0400 ® 38 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... -
Page 40: Acceptance Certificate
ATTENTION!!! The delivery of the device to the Paton Service Center is carried out at the expense of the manufacturer for the entire warranty period from the date of purchase exclusively in Poland! ®... -
Page 41: Warranty Card
FAULTS DETECTED AND FAULTY-CONDITION CAUSE: Tel. Technical support: +48 22 290 86 96 Address of the service center: 35105, Poland, Rzeszów, 14 Przemysłowa Street, ® 40 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA... - Page 42 FAULTS DETECTED AND FAULTY-CONDITION CAUSE: Tel. Technical support: +48 22 290 86 96 Address of the service center: 35105, Poland, Rzeszów, 14 Przemysłowa Street, ® 41 | P a g e PATON PSI PRO 315 A 400 V DC MIG/MAG TIG/MMA...
