Wolf E Series Manual

CONVECTION MICROWAVE CONTENTS
1 Assembly, frame
2 Bracket, mounting (stainless trim only)
3
10 Screw, #8-18 x / "
8
6 Screw, #6-18 x 1"
3
4 Screw, #6-32 x / "
4
1
2 Screw #8-15 x / "
2
3 Assembly, duct (bottom, rear, and top)
2 Trim, side
4 Tape, black foam

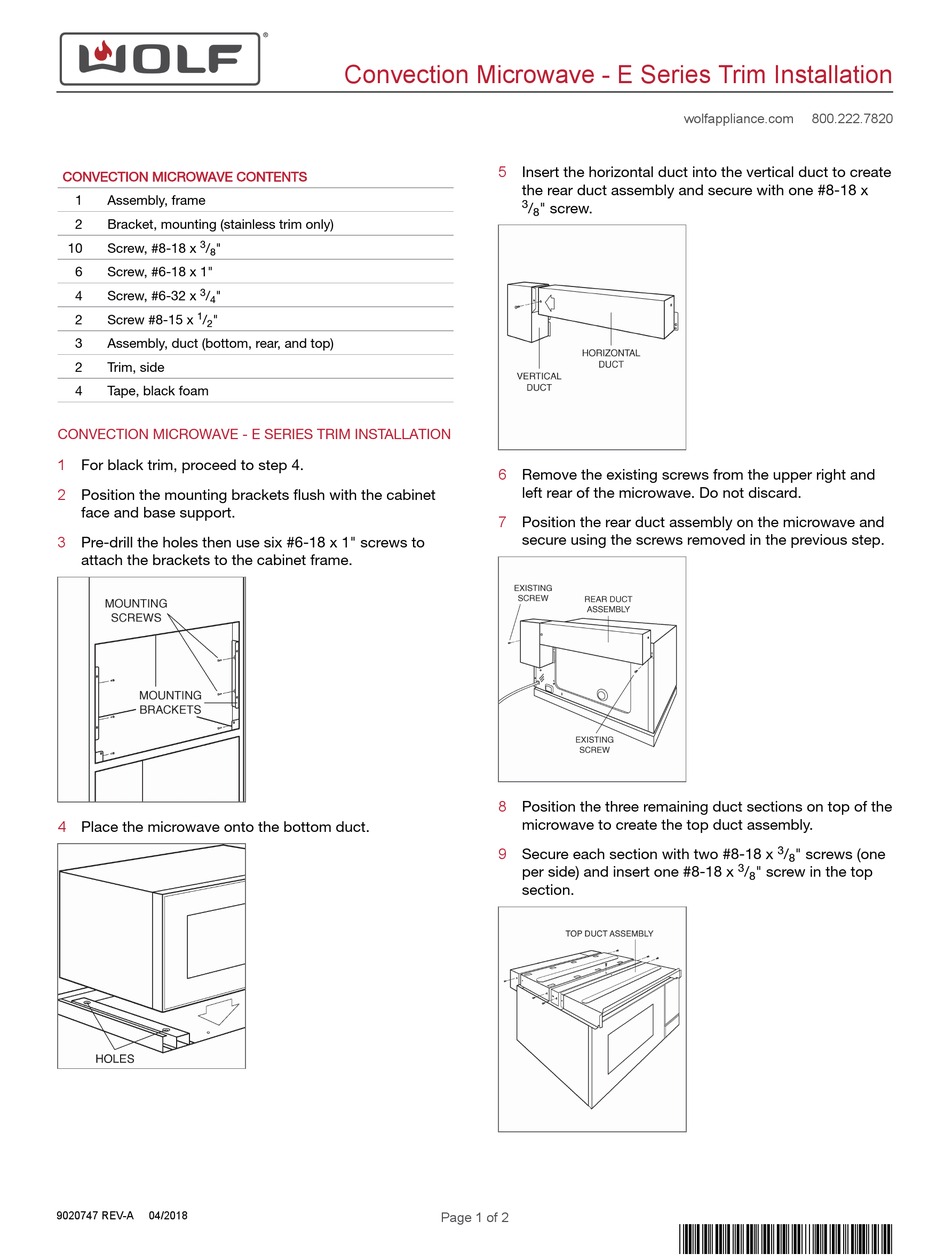

CONVECTION MICROWAVE - E SERIES TRIM INSTALLATION
For black trim, proceed to step 4.
1
2 Position the mounting brackets flush with the cabinet
face and base support.
3 Pre-drill the holes then use six #6-18 x 1" screws to
attach the brackets to the cabinet frame.
4 Place the microwave onto the bottom duct.
9020747 REV-A 04/2018
Convection Microwave - E Series Trim Installation
5 Insert the horizontal duct into the vertical duct to create
the rear duct assembly and secure with one #8-18 x
3
Remove the existing screws from the upper right and
6
left rear of the microwave. Do not discard.
7 Position the rear duct assembly on the microwave and
secure using the screws removed in the previous step.
8 Position the three remaining duct sections on top of the
microwave to create the top duct assembly.
Secure each section with two #8-18 x
9
per side) and insert one #8-18 x
section.
Page 1 of 2
wolfappliance.com
/ " screw.
8
*9020747$REVA*
800.222.7820
3
/ " screws (one
8
3
/ " screw in the top
8
