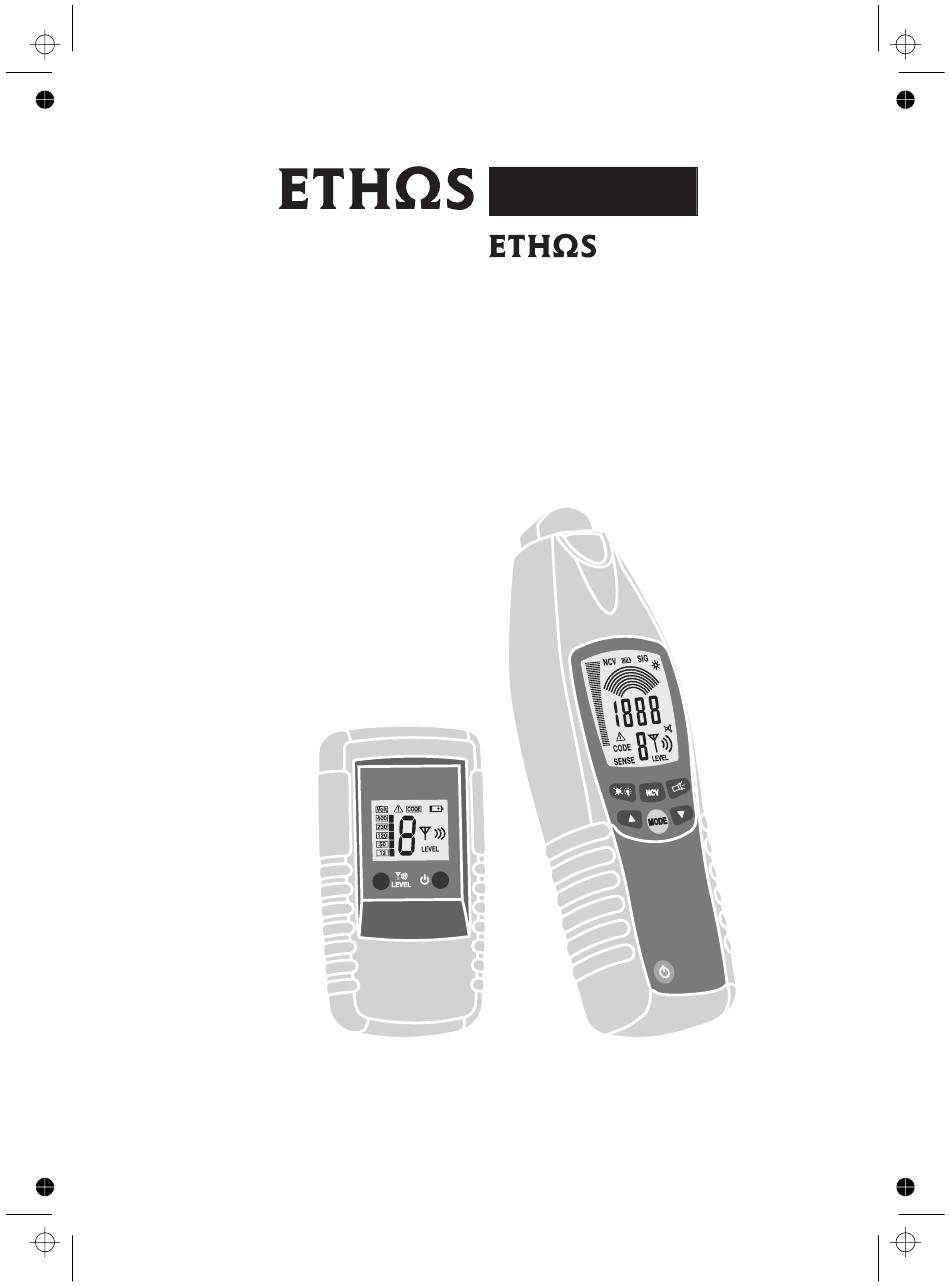

- Page 1 4700 Cable Locator Users Manual Please read this manual before switching the unit on. Important safety information inside.
-
Page 3: Table Of Contents
Contents Page 1 International Safety Information ..............2 General Description ................. 2.1 Features ..................2.2 Function description ................2.3 Cable Locator Mode ................2.4 Specification ..................3 Operating Principle ................3.1 Locator in complete circuits ..............3.2 One pole application( In open circuits) ........... -
Page 4: International Safety Information
1 International Safety Symbols Warning: This symbol indicates that the operator must refer to an explanation in the user manual to avoid personal injury or damage to the meter. Caution! Risk of electric shock Reference. Please use utmost attention. Comply with EMC. Safety Information Read the user manual carefully before attempting to operate or service the meter. -
Page 5: General Description
The safety can no longer be insured if the instrument: • Shows obvious damage • does not carry out the desired measurements • has been stored for too long under unfavorable conditions • has been subjected to mechanical stress during transport. All relevant statutory regulations must be adhered to when using this instrument 2 General Description The Cable Locator consists of a transmitter and a receiver, which is a portable... -
Page 6: Function Description
2.2 Function description Transmitter : Terminal “ ” : Terminal “ground” 3 LCD : Key Sensitivity Level/Backlit : Power Button 6 Battery case Transmitter Display : Transmitted Code (1,2,3,4,5,6,7) : External voltage display Volt CODE c: External voltage detection (12V, 50V, 120V, 230V, 400V) : Low battery indication : Transmitted level display(I, II or III) LEVEL... - Page 7 Receiver 1: Sensor head 2: Flashlight 3: LCD display 4: NCV button (Non-contact voltage detection) to select between cable locator mode and mains voltage detection mode 5: Flashlight button 6: Downward selection Toggle button for manual selection of the sensitivity 7: Mode button to selective automatic or manual mode 8: Backlight/Beeper...
-
Page 8: Cable Locator Mode
2.3 Cable Locator Mode Automatic Mode When the automatic mode is selected the symbol SIG is displayed. “ “ Automatic Mode Manual Mode (Press the MODE button) Select Manual mode by means of “downward selection . When the manual mode is selected “... -
Page 9: Specification
2.4 Specification Transmitter: Output signal 125kHz ......External voltage detection Voltage Range 12...400V ......0...60Hz Frequency Range ...... LCD display Display ........External Voltge Detection max. 400V AC/DC ..Over Voltage Category CAT III 300V ....Pollution Degree ....... Auto Power Off approx.1 hours (No any Operation ) ...... -
Page 10: Operating Principle
3 Operating Principle The Cable Locator consists of a transmitter and a receiver. The signal generated by the transmitter consists of a modulated current. Generating a magnetic field around a conductor. See figure 1. This electro-magnetic field surrounding the conductor induces a voltage within the receiver coils. -
Page 11: One Pole Application( In Open Circuits)
2 One pole application( In open circuits) Line interruptions in walls and floors. Finding and tracing of lines, sockets, junction box, switches, etc. for house installations. Finding bottlenecks, kinking and bucklings and obstructions in installation pipes by means of a metal coil. The ground connector must be connected to a suitable earth. -
Page 12: Locating And Tracing Of Lines, Lateral Circuit Branches, Sockets, Switches And Junctions In House Installations Circuits (One-Pole Application)
4 Locating and tracing of lines, lateral circuit branches, sockets, switches and junctions in house installations circuits (one-pole application) When locating and tracing of lines, sockets, switches and junctions in house installations circuits, the circuits must be dead; Neutral line and ground must be connected and fully operational;... -
Page 13: Locating Of Line Interruptions In The Plastic-Sheathed Cable (One-Pole Application)
3.5 Locating of line interruptions in the plastic-sheathed cable (one-pole application) When locating of line interruptions, the circuit must be dead; All lines which are not required must be connected to the auxiliary ground in accordance with figure 8; Connect transmitter to one lead and to an neutral according to figure 5; and Carry out this example as described in the application example. -
Page 14: Locating Of Line Interruptions Using Two Transmitters(One-Pole Application)
3.6 Locating of line interruptions using two transmitters (one-pole application) When locating a line interruption using one transmitter to feed from one conductor end, the location of interruptions may not be precisely located in case of bad conditions due to a field disturbance. The drawbacks described above can easily be avoided when using two transmitters (one from each end) for line interruption detection. -
Page 15: Error Detection For A Electrical Floor Heating (One-Pole Application)
7 Error detection for a electrical floor heating (one-pole application) The connection conditions: • If a shield mat or shield wiring is located above the heating wires, no ground connection may exist. If required, separate the shield from the ground connection. •... -
Page 16: Locating Fuses (Dual-Pole Application)
3.9 Locating Fuses (dual-pole application) When connecting in live circuits, the safety directions must absolutely be respected. Insert into the current circuit of a multifamily residential structure within a socket between “ “ L1 and N and switch the transmitter to LEVEL I . You may assign the signal in the secondary distribution and main distribution by transmitter pre-setting LEVEL I . -
Page 17: Locating Of Short-Circuits In Conductors (Doubel-Pole Applicaion)
3.10 Locating of short-circuits in conductors (double-pole application) When locating of shrot-circuits in conductors, any existing circuits within the cable must be voltage-free; connect transmitter in accordance with Figure 10; and carry out this example as described in the application example. Note that the tracing depth for sheathed cable and conductors are different due to the fact that the individual leads in the sheathed cable... -
Page 18: Tracing Installed Water And Heating Pipes (One-Pole Application)
3.11 Tracing installed water and heating pipes (one-pole application) The tracing conditions: The line to be located must be separated from the equipotential bonding. For safety reasons the electrical system must not be live! Connect transmitter at foundation ground to the ground socket. -
Page 19: Locating A Complete House Wiring (One-Pole Application)
3.13 Locating a complete house wiring (one-pole application) In order to determine all electrical lines of a house within one working process, proceed as follows: • Remove the bridge in the main distribution between PE and N . “ “ “... -
Page 20: Following Lines With Higher Location Depth (Dual-Pole Application)
3.14 Following lines with higher location depth (dual-pole application) If the dual-pole application is carried out on multi-wire cables, the location depth is widely limited. The reason is that the go-and-return lines are installed very closely. Thus, a strong distortion of the magnetic field occurs. The electro-magnetic field may not develop at the bottleneck. -
Page 21: Tracing Conductors Within The Soil (Single-Pole Application)
3.15 Tracing Conductors Within the soil (single-pole application) The connection is realised in compliance with Figure 15. Ensure that the current circuit is not live. Make sure that the distance between the connection to the ground and the conductor to be detected is high. If the distance is too close, no definite assignment of the signal received can be made to one conductor. -
Page 22: The Reach Will Be Improved When Seeking The Tension
3.16 The reach will be improved when seeking the tension If the transmitter is attached at the phase and the neutral coil directly gets lost the signal in the line going parallel to and back (see figure). • The range can partly lead to signal fall off when twisting the conductors among each other. -
Page 23: Sorting Or Determination Of Conductors Already Installed (Double-Pole Application)
3.17 Sorting or determination of conductors already installed (double-pole application) When sorting or determination of conductors already installed, any exisiting circuits within the cable must be voltage-free; the lead terminals must be twisted and electrically connected between each other; you need several transmitters, with different transmitter signals (1 to 7);... -
Page 24: Setting The Codes
3.19 Setting the Codes (Transmitter) • Make sure that the meter is switched off before setting the codes. • Press the sensitive key continuitly, then press Power key to turn on the meter. • Press the sensitive key to select the code you want, such as 1-7. •... -
Page 25: Measurement Point Illumination
Now touch the light-plastic sheathed cable with your receiver just before the location of the interruption. With button (6 or 9) SENSE set the sensitivity level “ “ so as to just receive the 7 signal. The signal strength is indicated via the bargraph “... -
Page 26: Battery Replacement
6 Battery Replacement Receiver batteries have to be changed, when the symbols are vacant “ “ displayed. Transmitter batteries have to be changed, when the symbols are displayed. • Disconnect the instrument from the mains and switch them off. • Open and remove battery case cover on instrument rear. - Page 28 Distributed by MTI Instruments Littleburn Industrial ESTATE, Langley Moor,Durham DH7 8HJ Tel:0191 3783990 Fax:0191 3783973...
