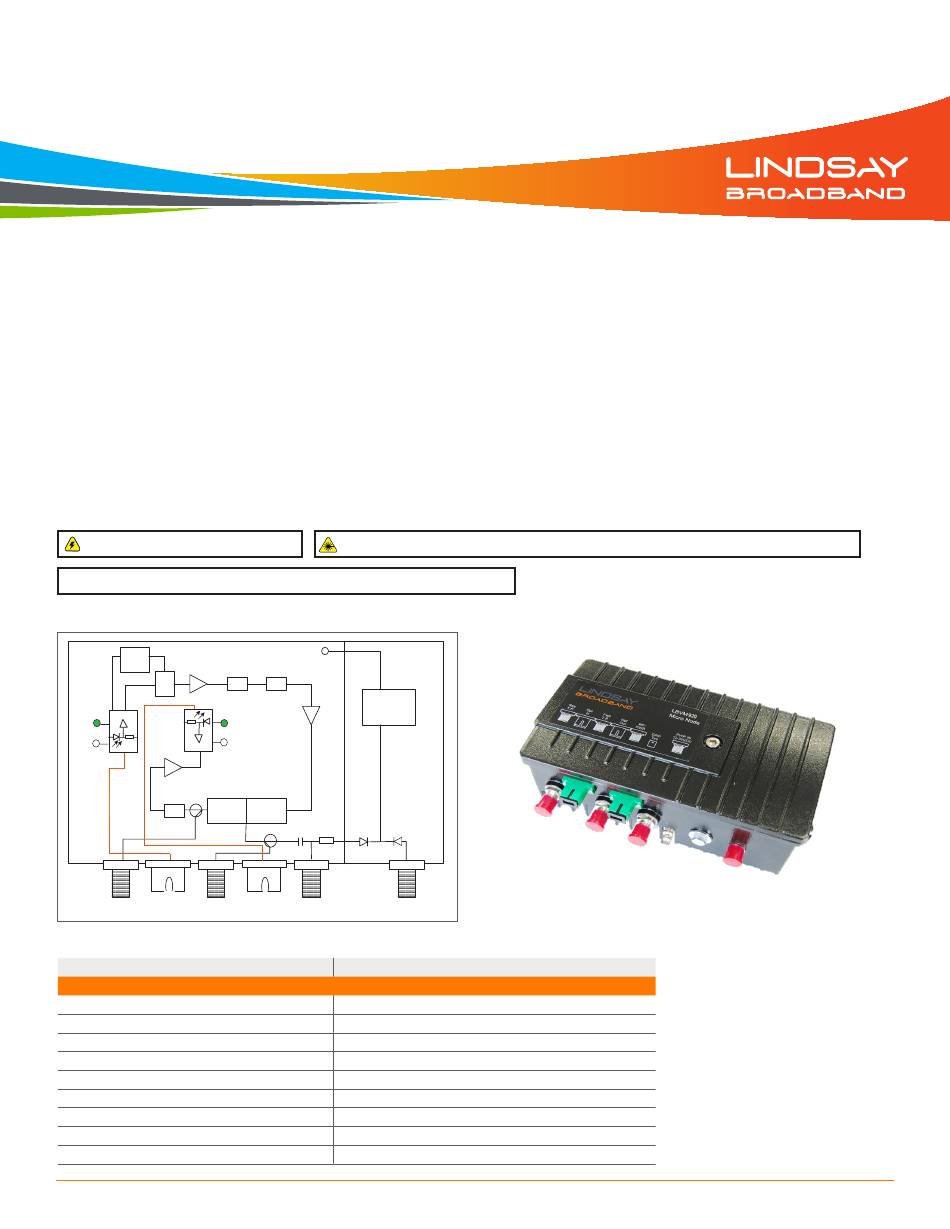

LBVM920 Series 1.2 GHz Indoor High Output Optical Node
Installation & Operation Manual
PRODUCT OVERVIEW
•
Model: LBVM920
•
Bandwidth: 5-85 MHz/102-1218 MHz
•
Powering: 12-30 VDC
The LBVM920 85/102 high output optical node is designed for various applications from HFC to advanced fiber deep architecture networks. The LBVM920 node
features a 1218 MHz bandwidth, high RF output level up to 50 dBmV at 1218 MHz, 85/102 MHz split, Automatic Gain Control (AGC), and a wide selection of return
lasers including CWDM wavelengths as an option to overcome fiber limitations in a network for two-way services. All of these features and flexibility are packaged in a
compact, diecast aluminum housing.
FEATURES
•
85/102 MHz split
•
AGC -8 to 0 dBm
•
High RF output 50 dBmV at 1218 MHz
•
Compact, diecast aluminum housing
•
Low power consumption
•
-20 dB directional coupler test points for forward & reverse RF
CAUTION
Risk of electric shock. Do not open.
No serviceable parts inside. Refer servicing to qualified service personnel.
FUNCTIONAL SCHEMATIC
CPU
AGC
ATT
Receiver
Transmitter
LED
LED
1 V/mw
1 V/mw
ATT
L
Optical
Fwd TP
Rev TP
- 20 dB
IN
-20 dB
SPECIFICATIONS
Parameter
Forward Receiver
Optical Receive Wavelength
Monitor Voltage
Optical Input Power (Optical AGC)
Optical Input Return Loss (Min.)
RF Frequency Range
(1)
Flatness of Frequency Response (f = fmin-1218 MHz)
Output Return Loss (f = fmin-1218 MHz)
Reference Output Level (± 2 dB @ -1 dBm optical input)
Slope (± 1 dB)
Invisible laser radiation! Avoid eye injury. Never look into the optical cable or connector.
Vcc
EQ
DC - DC
CONVERTER
H
Optical
RF+PWR
DC Input From
OUT
In/Out
Power Pack
Specification
1200-1600 nm
1 V/mW
-8 to 0 dBm
45 dB
102-1218 MHz
± 1 dB
16 dB
36-50 dBmV
14 dB
•
Optional return 1310, 1550 & CWDM wavelengths
•
1218 MHz forward bandwidth
•
Optional WDM technology available for bi-directional services on a single fiber
•
Superior heat dissipation
•
I/O optical level test points
•
Optional diplex filters 42/54
LBVM920
(front angled view)
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for Lindsay Broadband LBVM920 Series
Summary of Contents for Lindsay Broadband LBVM920 Series
- Page 1 LBVM920 Series 1.2 GHz Indoor High Output Optical Node Installation & Operation Manual PRODUCT OVERVIEW • Model: LBVM920 • Bandwidth: 5-85 MHz/102-1218 MHz • Powering: 12-30 VDC The LBVM920 85/102 high output optical node is designed for various applications from HFC to advanced fiber deep architecture networks. The LBVM920 node features a 1218 MHz bandwidth, high RF output level up to 50 dBmV at 1218 MHz, 85/102 MHz split, Automatic Gain Control (AGC), and a wide selection of return lasers including CWDM wavelengths as an option to overcome fiber limitations in a network for two-way services.
- Page 2 LBVM920 Series 1.2 GHz Indoor High Output Optical Node Installation & Operation Manual SPECIFICATIONS CONT'D. Parameter Specification Forward Receiver 50 dB -64 dB -60 dB Return Transmitter Optical Wavelength (CWDM available) 1310, 1550, or 1610 nm Optical Output Power (DFB laser)
- Page 3 LBVM920 Series 1.2 GHz Indoor High Output Optical Node Installation & Operation Manual OPTICAL, RF & POWER CONNECTIONS CONT'D. V (DC) on 1 mW/1V O.P. TP Optical Level (mW) Optical Level (dBm) OPT ON LED Notes DC Test Point of ONU 0.25...
- Page 4 Check for intermittent connections. If the problem is still not solved, replace, and try with another node. If the problem still exists, contact Lindsay Broadband for support. Do not open the LBVM920 as it will void the warranty. ORDERING INFORMATION...
