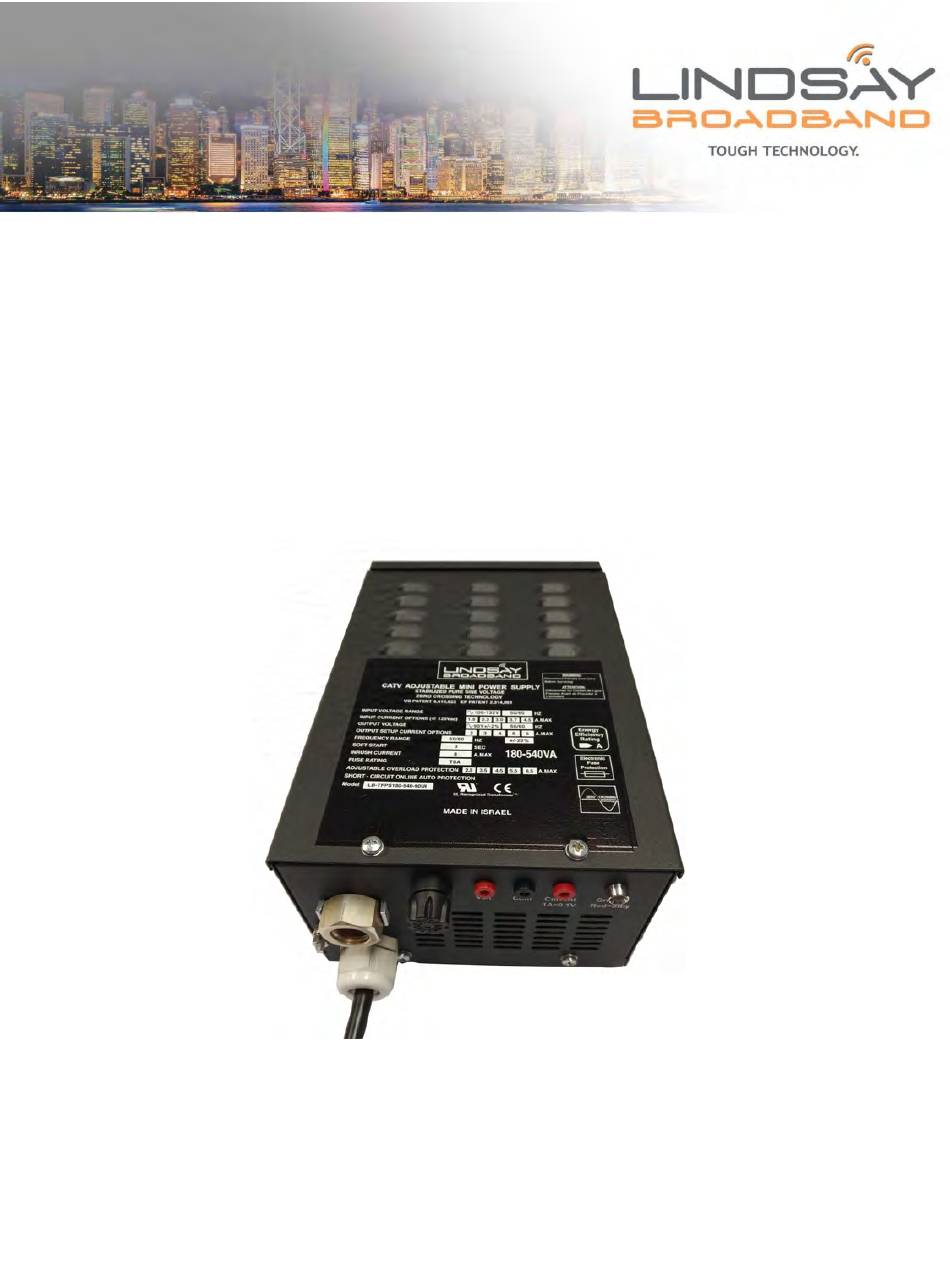

- Page 1 T-Former Series Stabilized Pure Sine Voltage Technology Adjustable Power Supply 180 -540VA LB-TFPS-180-540-90UI Installation Manual May 2019...
-
Page 2: Table Of Contents
Table of Contents Page 1: ………………………………………………….……………….Overview Page 2: ……………………………………………………………….. Technology Page 4: …………………………….……………………….Safety Instructions Page 5: ……….……………………………………………..Utility Connection Page 6: ……………………………… Mounting LB-TFPS-180-540-90UI Page 7: ………..Connecting Power Cable to T-Former AC Output Page 9: ……………..………………………….. Installation and Operation Page 11: ……………………………………….…… Power Supply Functions Page 12:……………………………………….Troubleshooting and Repair Page 13: …….…………………………………………………….Specifications... - Page 3 List of Figures and Tables Fig 1: ………………………………………………….……………….Efficiency Chart Fig 2: ……………………………………………….. Block Diagram T-Former P.S Fig 3: …………………………….………………………. NEMA 5-30R receptacle Fig 4: ….……………………………………..Service Entrance Circuit Breaker Fig 5: ………………………………………Mounting LB-TFPS-180-540-90UI Fig 6:……………………………………….Power Supply Output Connection Fig 7: ………………………………………………..….Output Power Connector Fig 8 …………………………………………..…90°...
-
Page 4: Overview
Overview: The LB-TFPS-180-540-90UI T-Former indoor power supply is a pure sine wave adjustable power supply (180 to 540VA), with the highest- efficiency, and most reliable technology. With almost double the lifetime of comparable Ferro-Resonant products, it delivers at least 5% energy savings compared with standard systems. -
Page 5: Technology
Technology • The LB-TFPS-180-540-90UI utilizes a unique US Patent AC/AC variable ratio transformation which provides ultimate voltage regulation and pure sine voltage output at all loads. Input & output Voltage are completely isolated. Line conditioning enables the changing of “gears” at O time "zero crossing". - Page 6 Basic Block Diagram Figure 2: Block Diagram T-Former Power Supply...
-
Page 7: Safety Instructions
Safety Instructions: • Review the Installation Manual before proceeding. If there are any questions regarding safe installation or operation & performance please contact us at: contactus@lindsaybroadbandinc.com. • Prior to any handling, the power supply must be disconnected from the Mains. •... -
Page 8: Utility Connection
Utility Connection: 120VAC 15A • NEMA 5-15R receptacle, 120V 15A Figure 3: NEMA 5-15R receptacle • 10 Amp circuit breaker installed in service entrance box. Figure 4: Service Entrance Circuit Breaker... -
Page 9: Mounting Lb-Tfps-180-540-90Ui
Mounting LB-TFPS-180-540-90UI The LB-TFPS-180-540-90UI power supply can be wall or shelf mounted. The LB-TFPS-180-540-90UI is designed for temperatures of -40 to +60C and can be mounted in an outdoor enclosure. The outdoor enclosure should have a ¾” plywood backing so that the power supply can be mounted. -
Page 10: Connecting Power Cable To T-Former Ac Output
Connecting Power Cable to T-Former AC Output All Lindsay Broadband power supplies have high current output quick type connectors without seizure screws. • Simply plug in connector at the panel. • Connection is made quickly and reliably from outside. •... - Page 11 Figure 8: 90° Output Power Connector A Flex Jumper with a male connector at one end and female connector at the other end can also be used. The flex Jumper must be capable of 20A continuous current. Figure 9: Flex Jumper Recommended Output Connector Specification: Bandwidth: 0 MHz to 1 GHz...
-
Page 12: Installation And Operation
Installation and Operation: • The LB-TFPS-180-540-90UI power supply is factory assembled at 6 Amp maximum on the output port. The output port has a T8.0A fuse. • System reliability depends on protecting the power supply from overcurrent events. Through proper fuse selection, you can minimize risks and failures. - Page 13 • Adjust dip switches for desired output current. (Refer to Figure 10). • Adjusting the power manually allows the operator to pay flat rate for the real energy consumed instead of paying for the Power Supply rated power. DIP Switch Position Current Limit -90V Figure 11: DIP Switch Adjustment...
-
Page 14: Power Supply Functions
Power Supply Functions Figure 12: Power Supply Functions 120VAC main input Chassis Ground Output (90VAC) Output Fuse Output Voltage Test Point Test Point Common Port Output Current Test Point (1A=0.1V) Output Status LED... -
Page 15: Troubleshooting And Repair
Troubleshooting and Repair The T-former P.S is designed to be the most reliable P.S that can be used for unlimited time at all weather conditions, even at maximum load. The Power supply has slow-start circuit and overload protection to prevent the most common failure at the network such as inrush current that switches OFF the circuit breaker, or blows the fuse as a result of overload or short circuit. -
Page 16: Specifications
Specifications Electrical Input Input Voltage Range 102 - 132 Vac Input Frequency 60 Hz Input Current 2.15 < Imax < 4.3 A (adjustable @120 Vac) Input Power Factor >0.98 (10 - 100% load) Output Output Voltage 90 Vac ± 2% Output Current 2.6 <...
