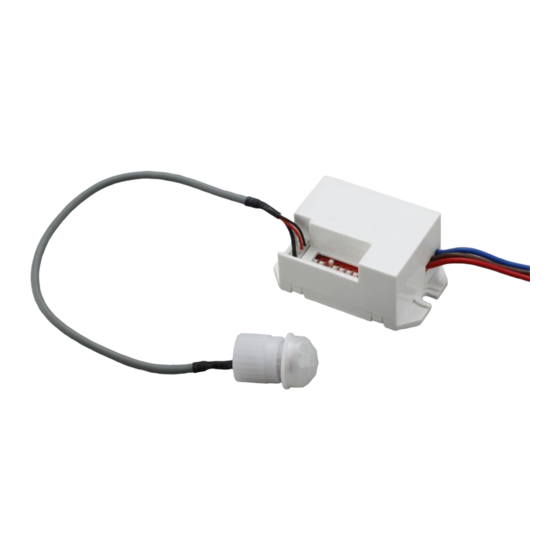

Summary of Contents for Orno OR-CR-211

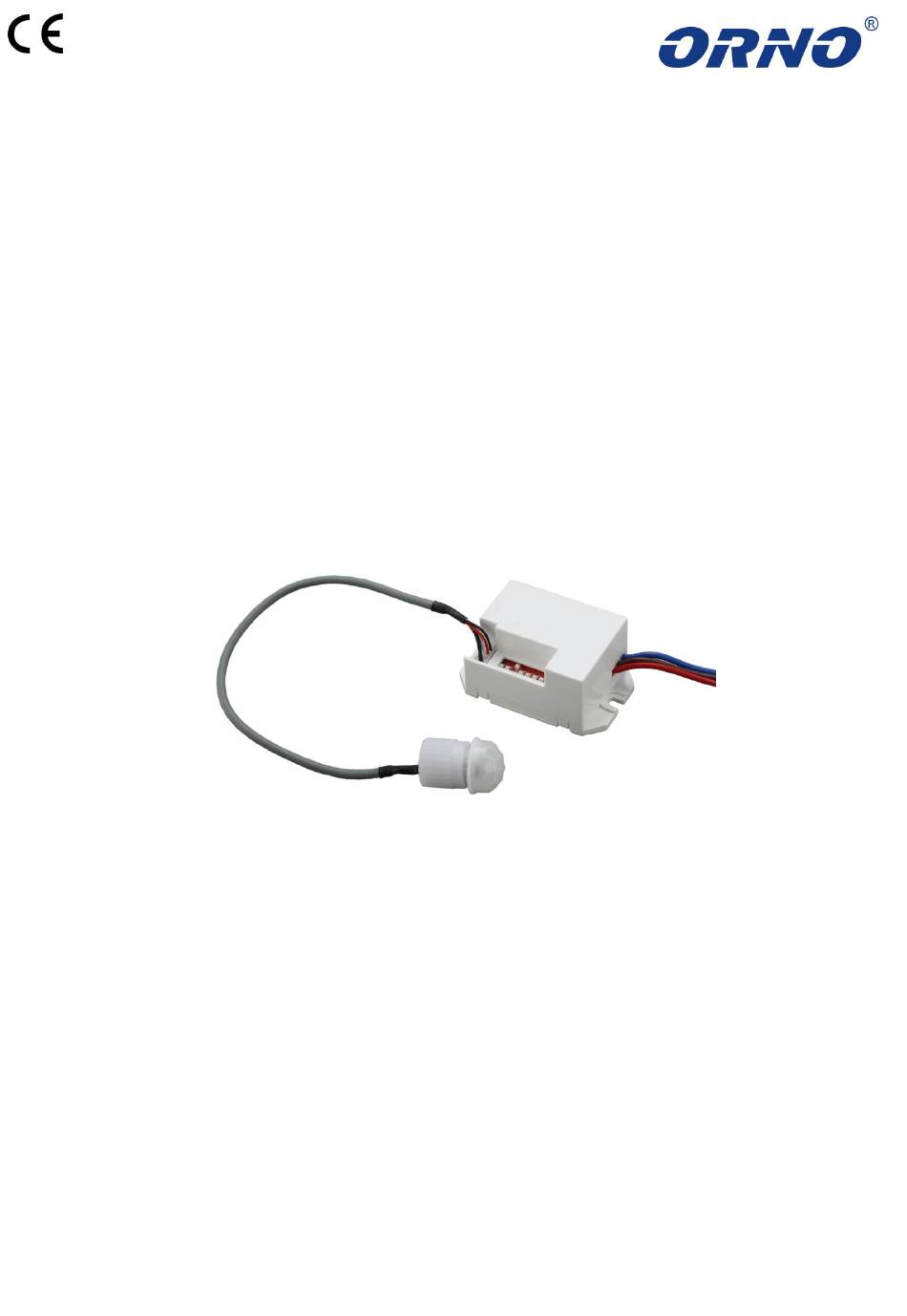

  • Page 1 OR-CR-211 Instruction...
  • Page 2 This product adopts high sensitivity detector, integrate circuit and SMD; It gathers automatic, convenient, safe, energy-saving, practical functions; It utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once; It can identify day and night automatically; It is easy to install and its usage is widely. SPECIFICATION: Power source: 220V/AC-240V/AC Detection range: 360º...
  • Page 3 CONNECT-WIRE FIGURE: (See the figure) TEST:  Slide the LUX switch to SUN position (like the PIC. below is SUN). Slide the SENS switch to maximum (below is the maximum). Adjust the TIME switch, slide 5” switch to ON position. (slide upwards) ...
  • Page 4 Please check if the time delay is the longest. c. Please check if the power corresponds to the instruction. d. Please check if the temperature near the sensor changes obviously, such as air condition or central heating etc. ORNO-LOGISTIC Sp. zo.o. ul. Katowicka 134 43-190 Mikolow...
