Installation and Operating Instruction for B.E.G. Controls - Occupancy sensor MINI-P-PP-DIM-GH-W-FC
1. Product information
MINI primary sensor for use with PP-DIM-J pow-
er pack or proprietary low voltage system
Designed for wet and high-humidity locations
and high-bay applications
Up to 4 Secondary sensors may be connected
with a primary sensor to increase detection
coverage.
Spring clips for quick and easy installation in
suspended ceilings and light fixtures
5-year limited warranty
Masking blinds included
All programmable features can be adjusted via
B.E.G. Controls smartphone IR-Adapter and
Android or iOS app.
ROHS compliant
Photocell included as a standard feature
2. Operation with power pack
PP-DIM-J
Automatic Mode
In automatic mode the power relay closes when mo-
tion is detected, then the power pack automatically
adjusts the dimming load to the programmed level
set by the installer.
The dimming load turns-off when motion is no longer
detected and the follow-up time elapses. Using the
momentary switch option, wired to the power pack,
the occupant can toggle the lighting load on/off
by pressing and releasing the switch. Pressing and
holding the switch will either increase or decrease
the light level. The selected occupant level will
remain until no motion is detected and the follow-
up time elapses. When motion is detected again
the power pack will adjust the dimming load to the
programmed level set by the installer.
Orientation Mode
This mode includes two configurations. Timed and
Permanent.
In the timed orientation mode, once motion is no longer
detected and the follow-up time elapses, the power
pack decreases the dimming load to a pre-adjusted
level for a selectable time period (between 30 seconds
and 30 minutes), then the load is turned-off.
In the permanent orientation mode, the power pack
does not switch the load-off completely. When motion
is no longer detected and the follow-up time elapses,
the dimming load is decreased to a preset level and
stays at that level until motion is detected again or the
momentary switch is pressed.
In either mode, should the ambient light level surpass
the maximum daylight parameter (100 fc), the load
dim to a 1% level. If the ambient light remains at
this level for five minutes the load will turn-off. If the
ambient light level is close to the minimum daylight
parameter (2 fc), the load will turn-on.
Semiautomatic Mode
In the semiautomatic mode the power relay only closes
when occupant presses momentary switch, then power
pack automatically adjusts the dimming load to the
programmed level set by the installer. The dimming
load turns-off when motion is no longer detected and
the follow-up time elapses. Using the momentary switch
option, the occupant can toggle the lighting load on/
off by pressing and releasing the switch. Pressing and
holding the switch will either increase or decrease the
light level. The selected occupant level will remain until
no motion is detected and the follow-up time elapses.
When occupant presses switch again, the power pack
will adjust the dimming load to the programmed level
set by the installer.
3. Safety information
Work should be carried out by qualified pro-
fessionals or by instructed persons under the
!
direction and supervision of qualified skilled
electrical personnel in accordance with electri-
cal regulations.
The device is not to be used to isolate other
!
equipment from the mains supply!
4. Mounting
Select sensor(s) mounting
≤1.3 in
≤ 34 mm
location based on room
dimensions and sensor
coverage pattern. Avoid
placing sensor(s) less
than four feet away from
heat and/or ventilation
sources. Avoid placing
sensor(s) where view will
be directed outside of in-
tended controlled space,
this to prevent outside sources from activating sensor(s).
A circular opening 1.3 in/34 mm in diameter must be
made in the ceiling.
Having connected the cables in accwinordance with
the national and local electrical codes, connect the
sensor to the power pack using the RJ12 connector.
Pass sensor's RJ12 connector through ceiling opening.
Next, squeeze spring clips through ceiling opening.
Sensor should clip securely into place.

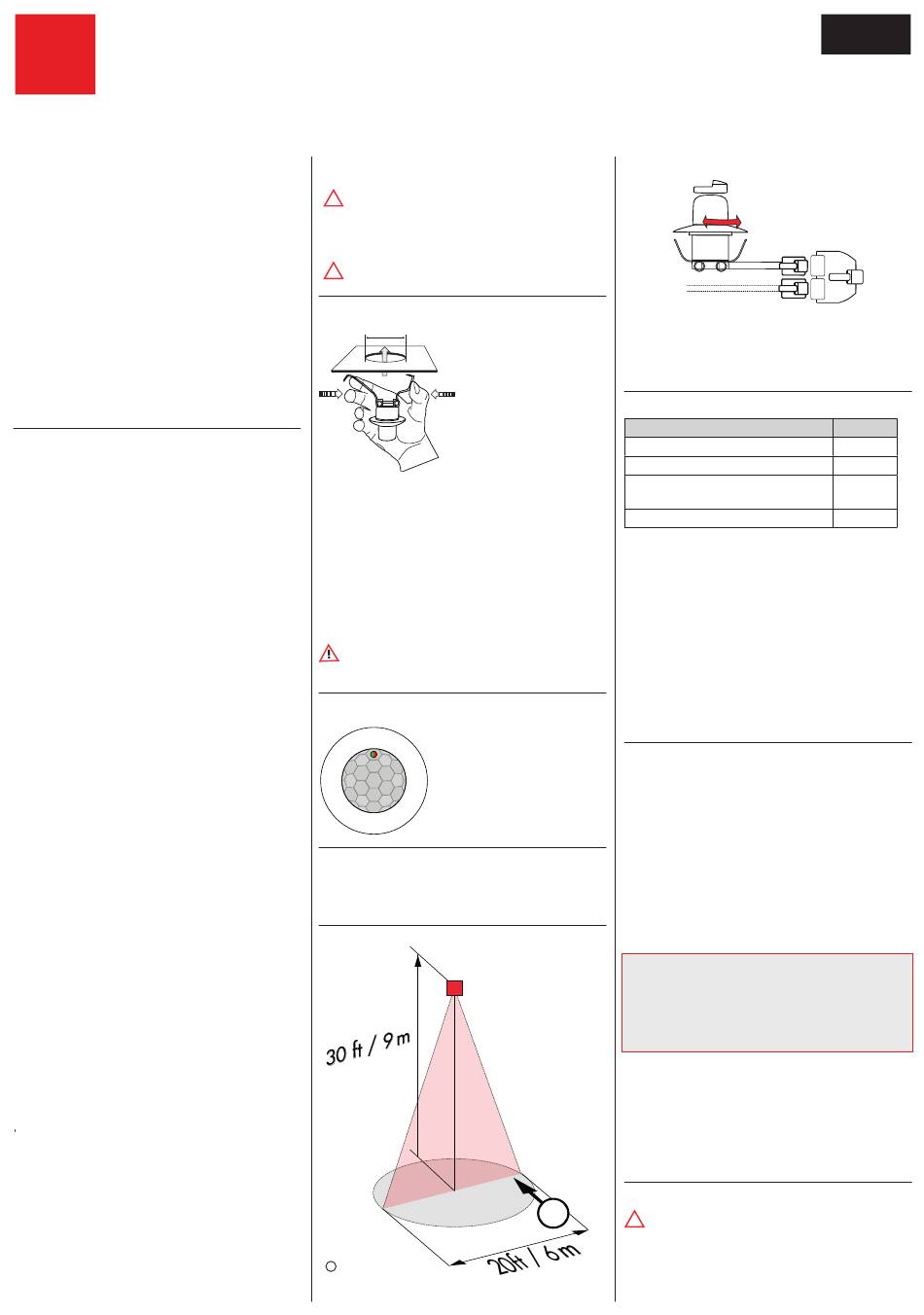

(See Figure)
When using primary and secondary devices,
please mount the primary device at the place
with the least amount of natural light.
5. Position LEDs
1
LED 1 green/red
6. Self test cycle/Startup behavior
When power is first applied, the sensor enters an
initial 60 second self-test cycle. During this time the
device does not respond to movement and stays on.
7. Range
Walking across
1
8. Exclude sources of interference
To prevent false activation from external heat-emitting
sources, use blinds to mask sensor viewing angle.
9. Description / Part No. / Accessory
Description
MINI-P-PP-DIM-GH-W-FC
MINI-S-PP-GH-W-FC
Remote control:
via B.E.G. Controls IR-Adapter
Power pack PP-DIM-J
The required app for smartphones can be down-
loaded from the App Store for iOS smartphones and
Google Play Store for Android smartphones.
The manual for the B.E.G. Controls App can be
downloaded from www.begcontrols.com
Note: Remote only works with primary MINI-P-PP-
DIM-GH-W-FC sensor.
Note: Maximum distance between sensor and
remote - 24 ft / 7.3 m
10. Technical data
Operating voltage:
Ambient temperature: -13°F-122°F/-25°C to +50°C
Protection: Suitable for outdoor use and wet
locations.
Factory settings:
Recommended height
for mounting:
Range of coverage Ø: walking across 19.7 ft /6 m
Area of coverage:
DIM output:
Following settings can only be changed using the
B.E.G. Controls IR-Adapter for smartphones and app.
Brightness set value:
Follow-up time:
Sensitivity:
Dimensions:
Technical data MINI-Secondary
Power supply:
Pulse output:
Pulse duration:
11. Manual switching
1
See manual of the power pack PP-DIM-J!
!
USA-EN
Part No.
97198
97197
92726
97017
24 V DC
50 fc/500 Lux, 10 min.
30 ft / 9 m
360°
0-10 V DC, up to 50 EB
2 - 100 fc/20 - 1000 Lux
Load: 30 sec. - 30 min.
MIN-LOW-MID-HIGH-MAX
H 1.6 in x Ø 1.77 in
H 41 x Ø 45 mm
24 V DC
Digital output
1sec. ON, 9 sec. OFF
