- Page 1 Pub No.: OM ST-120/220 June 2013, Version 7.4 ST -120; ST-220 Histology Innovation for a NEW Generation Operator’s Manual ™ SHURTrim Paraffin Block Trimmer Catalog #s ST-120, ST-220...
- Page 2 P a g e General Data Healthcare, Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Topic Page Warranty card Insert A Introduction Symbols and conventions Overview and specifications Instructions Precautions and maintenance Regulatory Compliance Contact information P a g e General Data Healthcare, Inc. -
Page 4: Introduction

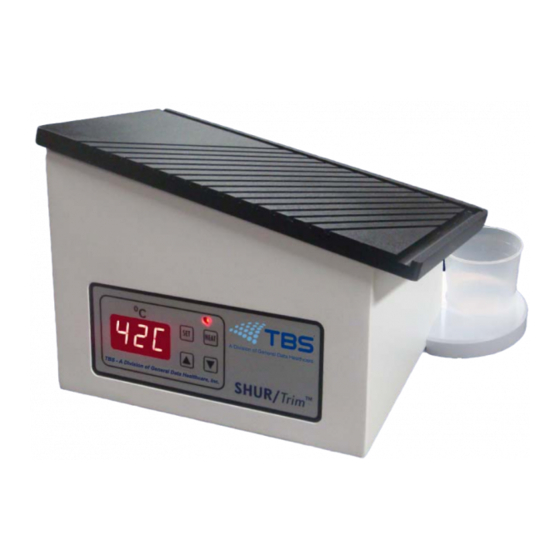

Simply slide paraffin blocks across the heated grooved surface. Melted paraffin is shaved away to conveniently positioned disposable receptacles. Preparing embedded tissue blocks for insertion into microtome quick release clamps has never been easier or safer. P a g e General Data Healthcare, Inc. -
Page 5: Symbols And Conventions
Symbols and Conventions Important Notice Hot Surface P a g e General Data Healthcare, Inc. -
Page 6: Overview And Specifications
OVERVIEW AND SPECIFICATIONS SHURTrim ® ™ Paraffin Block De-waxer P a g e General Data Healthcare, Inc. - Page 7 Blinking red indicates power to heating element on but set temperature not reached. Solid red indicates that the set temperature of the metal surface has been achieved and the microprocessor has begun to regulate the temperature. P a g e General Data Healthcare, Inc.
- Page 8 240 W 240 W Fuse 3.15 A 1.6 A Default Temperature Setting Maximum Temperature Setting Weight Unit 3kg (5 lbs) Unit 3kg (5 lbs) Shipping 4kg (9 lbs) Shipping 4kg (9 lbs) P a g e General Data Healthcare, Inc.
-
Page 9: Instructions
(down arrow) or increment (up arrow) keys until the desired temperature is displayed. The optimal operating temperature for melting most paraffins in a reasonable time frame without the unit being too hot to work comfortably is approximately 60°C - 65°C. P a g e General Data Healthcare, Inc. -
Page 10: Precautions And Maintenance
A small apparatus (cat# ST-PCH) is included for positioning disposable cups under the drain tube to collect melted paraffin. An initial supply of cups is included. Additional ones can be ordered. Specify cat # ST-PDC. 10 | P a g e General Data Healthcare, Inc. -
Page 11: Regulatory Compliance
• EN61000-3-3:1995 +A1:2001 +A2:2005 • EN61000-4-2:1995 +A1:1999 + A2:2001 • EN61000-4-3:2006 • EN61000-4-4:2004 • EN61000-4-5:2005 • EN61000-4-6:2007 • EN61000-4-8:1993 +A1:2001 • EN61000-4-11:2004 Safety • UL 61010A • CSA 61010-1 • CE EN61010-1 11 | P a g e General Data Healthcare, Inc. - Page 12 Serial Number Labels ST-120: TBS – A Division of General Data Healthcare 3014 CROASDAILE DRIVE DURHAM, NC 27705-2507 USA SHURTrim ™ 919.384.9393 FAX 919.384.9595 Model www.trianglebiomedical.com CAUTION NO USER SERVICABLE PARTS INSIDE – REFER SERVICING TO QUALIFIED...
-
Page 13: Contact Information
CONTACT INFORMATION Customer service (919) 384-9393 (919) 384-9595 TBS – A Division of General Data Healthcare, Inc. Mailing address 3014 Croasdaile Drive Durham, NC 27705 U.S.A. Sales and product information sales@trianglebiomedical.com Product Service questions productservice@trianglebiomedical.com tbs@trianglebiomedical.com All other inquiries Please visit us at http://www.trianglebiomedical.com... - Page 14 ©2013 General Data Healthcare, Inc. All rights reserved. Specifications are current at the time of publication; however, they are subject to change without notification. Please contact our North Carolina office or one of our distributors for current prices and availability. All trademarks and registered trademarks are property of General Data Healthcare, Inc., Cincinnati, Ohio, USA.
