Char-Broil BigEasy 463823303 Assembly Manual

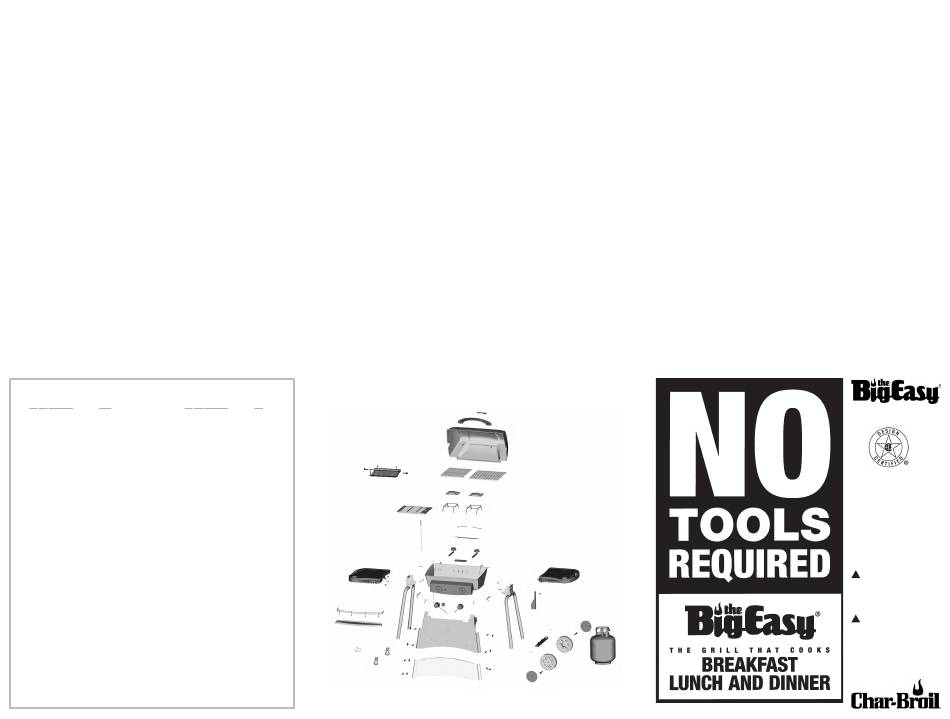

Parts List - Model 463823303
Key Qty. Description . . . . . . . . . . Part # Key Qty. Description
A 1 Condiment Wire . . . . . 4151005 CC 2 Burner. . . . . . . . . . . . . . . 5068016
DD 1 Right Shelf . . . . . . . . . . . 4520044
B 2 Tent Frame . . . . . . . . . 4151014
EE 1 Left Shelf . . . . . . . . . . . . 4520043
C 1 Griddle . . . . . . . . . . . . 4152038
FF 1 Grill Top . . . . . . . . . . . . . 4580128
D 1 Cooking Grate, 12" . . . 4152045
GG 1 Shield . . . . . . . . . . . . . . . 5501038
E 1 Cooking Grate, 15" . . . 4152046
HH 2 Control Knob. . . . . . . . . . 4154507
F 1 Chef's Delite . . . . . . . . 4152058
II 1 Logo Plate . . . . . . . . . . . 4157147
G 1 Handle . . . . . . . . . . . . 4154474
- - 1 Hardware, Cart . . . . . . . . 4254060
H 1 Condiment Tray . . . . . 4154518
- - 1 Hardware, Shelf . . . . . . . 4254057
I 2 Hub Cap . . . . . . . . . . . 4154530
- - 1 Hardware, Swing-grid . . . 4254018
J 2 Wheel . . . . . . . . . . . . . 4154531
JJ 1 Grease Clip. . . . . . . . . . . 5156607
K 1 LP Tank . . . . . . . . . . . . 4158015
L 2 Burner Tent . . . . . . . . . 4500226
M 1 Tank Retainer . . . . . . . 4503158
N 1 Tank Support. . . . . . . . 4503159
O 1 Upper Panel . . . . . . . . 4503160
P 1 Lower Panel . . . . . . . . 4503169
Q 2 10x1/2" Screw, . 4080043
Self-tap
R 2 Pivot Pin . . . . . . . . . . . 4080066
S 2 3/16 Pal Nut . . . . . . . . 4153096
T 1 Ignitor Wire . . . . . . . . . 4153184
U 2 Leg Extender . . . . . . . 4154516
V 1 Right Leg . . . . . . . . . . 4503166
W 1 Left Leg. . . . . . . . . . . . 4503167
X 2 3/4" Hitch Pin . . . . . . . 4156515
Y 1 Carry-over Tube . . . . . 4500227
Z 1 Console Assembly . . . 4530125
AA 1 Ignitor Knob . . . . . . . . 4154208
BB 1 Grill Bottom . . . . . . . . . 4580332
. . . . . . . . . . Part
F
EE
A
W
H
JJ
U
II
G
FF
D
E
L
C
B
S
T
Y
CC
GG
DD
X
BB
X
Z
R
R
AA
Q M
Q
V
HH
I
O
N
J
P
I
K
463823303 / 4165208 (11-13-02) - 0
463823303
ASSEMBLY MANUAL
THIS GRILL IS FOR
OUTDOOR USE ONLY
CAUTION: Read and follow all safety
statements, assembly instructions,
and use and care directions before
attempting to assemble and cook.
INSTALLER/ASSEMBLER: Leave
these instructions with consumer.
CONSUMER: Keep this manual for
future reference.
WARNING
!
Failure to follow all manufacturer's
instructions could result in serious
personal injury and/or property
damage.
CAUTION
!
Some parts may contain sharp edges
– especially as noted in the manual!
Wear protective gloves if necessary.
If you have any questions or need
assistance during assembly, please
call 1-800-241-7548.
