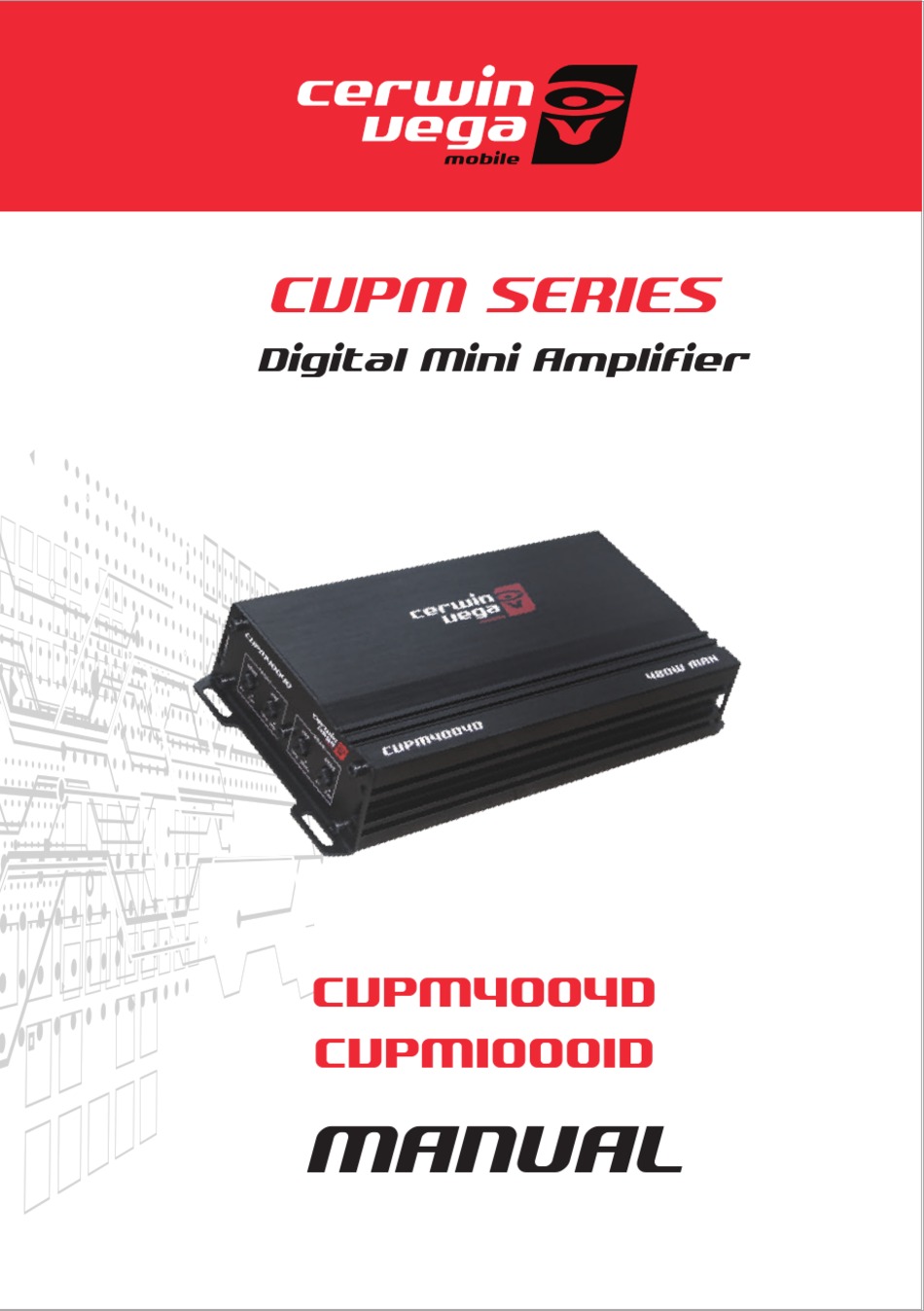

- Page 1 CVPM SERIES Digital Mini Amplifier CVPM4004D CVPM10001D MANUAL...
- Page 2 Introduction Cerwin Vega Mobile Amplifier Congratulations for purchasing Cerwin Vega Mobile amplifier for your car audio system. You have chosen Cerwin Vega Mobile because you deserve the best! Cerwin Vega Mobile amplifier are designed and engineered to reproduce great sound quality for many years of listening enjoy- ment in your vehicle! We highly recommend that your new speakers be installed by an authorized Cerwin Vega Mobile dealer.
-
Page 3: Installation
Installation WARNING: Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. Cerwin Vega Mobile amplifiers can exceed that level so please exercise restraint when listening and enjoying your new amplifier. GENERAL PRECAUTIONS • This unit is designed for negative ground 12V DC operation only. (some older english vehicles have a positive ground!) •... - Page 4 Installation...
- Page 5 Installation 5. Prepare the ground wire for attachment to the amplifier by stripping 5/8” of insulation from the end of the wire. Always use a wire of the same gauge as the power connection, never smaller. Insert the bare wire into the GND terminal and tighten the set screw to secure the cable in place.
- Page 6 Features CVPM10001D MONOBLOCK CVPM4004D 4 CHANNEL...
- Page 7 (LPF) as the LPF is ALWAYS engaged. The LPF is limited between 35 - 500 Hz. This control matches the preamp stage of the Cerwin-Vega Mobile amplifier to your source unit. This is NOT a volume control. The range is between aprox 150mV -12V.
- Page 8 Set Up The crossovers are ALWAYS engaged. Meaning “ON” ..you CANNOT turn them off. It is NOT an issue as the lowest HPF Frequency is 15Hz(CVPM4004D) which is, in reality, fis ull range. The HPF is used to protect Coaxial and Component speakers from damage.
-
Page 9: System Diagrams
System Diagrams Four Channel Mode:CVPM4004D Three Channel Mode:CVPM4004D 5 Channel setup: CVPM4004D/10001D Two Woofers Mono Block: CVPM10001D... -
Page 10: Product Specifications
Specifications PRODUCT SPECIFICATIONS CVPM4004D CVPM10001D RMS Power Rating (rated at 0.1% THD) Max Power 400W MAX 1000W MAX RMS Power (2 ) 90W x 4 @ 2 RMS RMS Power (4 ) 60W x 4 @ 4 RMS Bridged (mono 2 ) 500W x 1 @ 2 RMS Bridged (mono 4 ) 240W x 2 @ 4 RMS... -
Page 11: Warranty
Warranty Please Ship All Warranty Claims With Pre-Authorized RA Number To: CV&DA Holdings, Inc. ATTN: Customer Service Department 3761 S. Hill St. Los Angeles, CA 90007 USA Please Contact Customer Service for Further Warranty Information: U.S.A. Tel: 213-261-4161 / Fax: 213-947-4767 We reserve the right to change the products and specifications at any time without notice. - Page 12 3761 South Hill Street Los Angeles 90007, USA P 213-261-4161 / F 213-947-4767 2020 Cerwin Vega Mobile All rights reserved. (a division of CV & DA Holdings, Inc.)
