Installing Your
Wi-Fi Doorbell
Model: AD410

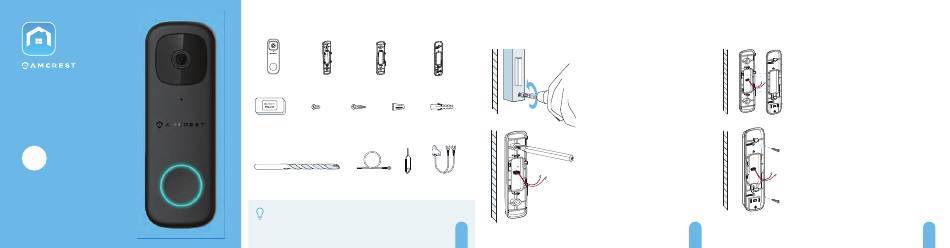

In the Box

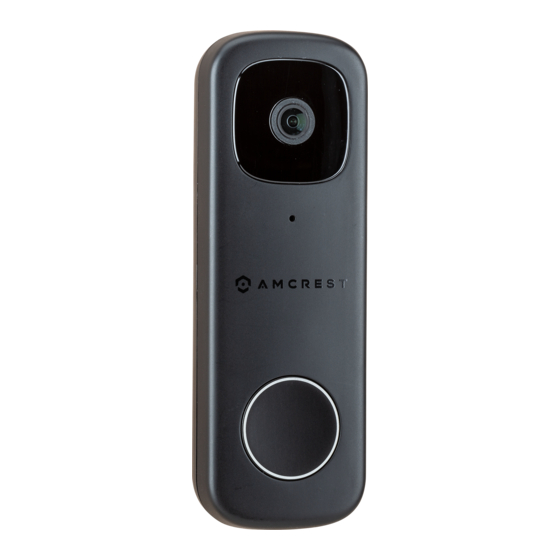

Wi-Fi Doorbell
Wedge Bracket
Corner Bracket
Mounting Bracket
(5º)
(15º)
(Pre-installed)
Chime Kit
2 Terminal
2 Mounting
3 Wire Nuts
2 Wall Anchors
Screws
Screws
6mm (15/64") Masonry Drill Bit
2 Extra Wires
Pin
Wire Harness
NOTE
A corner bracket can be used to angle the doorbell
15° and the wedge bracket can be used to angle the
doorbell upward or downward at a 5° angle.
Step 2: Installing Corner or Wedge Bracket
A
Remove your existing
doorbell from the wall and
disconnect the wires. These
are the wires we will be using
to install your new Amcrest
Wi-Fi Doorbell.
B
Place a corner or wedge
bracket on the mounting
surface and mark the drill
holes with a marker or pencil.
2
Step 2: Cont.
C
Attach a mounting bracket to the
corner or wedge bracket and press in to
snap the brackets together.
D
For Wood, Drywall or Soft Surfaces:
Secure the brackets to the mounting
surface using a screwdriver and mounting
screws.
For Concrete, Stucco or Brick: Using your
previously marked holes as a guide, drill
holes into the mounting surface using the
included masonry drill bit. Then, insert wall
anchors and secure the brackets using a
screwdriver and mounting screws.
3
3
4
