- Page 1 User’s Manual Power Distribution Unit...
-
Page 2: Table Of Contents
Output Power Cord ...............7 Electrical Installation ..............8 Troubleshooting ........... 8 Product Features Technical Specification ......... 9 Basic Series (1U) ..............9 Basic Series (0U) ..............13 Metered Series (1U) ..............15 Metered Series (0U) ..............16 Conformance Approvals ......19 Customer Service & Warranty .....20... -
Page 3: Model List
Model List: Basic Series (1U): PDU15B8R PDU15B6F8R PDU20BHVCEE8R PDU15B10R PDU15B6F12R PDU20BHVCEE12R PDU15B12R PDU20B10R PDU30BT8F8R PDU15B2F8R PDU20BHVT8R PDU30BT10F10R PDU15B2F10R PDU20BHVT12R PDU30BHVT2F6R PDU15B2F12R PDU20BHVIEC8R PDU30BHVT4F8R PDU15B4F12R PDU20BHVIEC12R Basic Series (0U): PDU15BV14F PDU20BV32F PDU30BVHVT32F PDU20BVT14F Metered Series (1U): PDU15M2F8R PDU20M2F8R PDU20MT2F10R PDU15M2F10R PDU20M2F10R... -
Page 4: Package Contents
Package Contents PDU (1) Cord Retention Tray 1/2/3/4 pcs - varies by model Mounting Brackets Horizontal Installation Used (1 set) Vertical Mounting Brackets (1 set) Vertical Installation Used (1 set) (for 0U models only) Cord Retention Tray Bracket Mounting Mounting Screws M3 X 6 Screws M4 X 6 (4pcs) 4/8/12/16 pcs - varies by model Keyhole Mounting Pegs (2pcs) -
Page 5: Safety Precautions
Safety Precautions Read the following before installing or operating the Power Distribution Unit (PDU): • For the PDU with attached input Power Cords, the socket must be installed near the equipment and must be easily accessible. • Make sure to disconnect all power supply cords before attempting to service or remove this unit. -
Page 6: Installation
Installation Horizontal Installation (1U models only) Step 1 – Mounting bracket installation Install the screws (M4 X 6) in holes diagonal from each other. Step 2 – PDU Mounting Install the PDU using fasteners compatible with the rack. For information on Cyberpower products, visit www.cyberpower.com... -
Page 7: Vertical Installation With Brackets
Vertical Installation with Brackets Step 1 – Mounting bracket installation Install the screws (M4 X 6) in holes diagonal from each other. Step 2 – PDU Mounting Install the PDU using fasteners compatible with the rack. Vertical Installation with Brackets (0U models only) Step 1 –... -
Page 8: Vertical Installation - Keyhole Mounts (0U Models Only)
Vertical Installation with Keyhole Mounts (0U Models) Step 1 – Keyhole Mount installation Attach the Keyhole Mounting Pegs to the PDU with the 2 supplied Bracket Mounting Screws (M4 X 6). Step 2 – PDU Mounting Align the the Keyhole Mounts to the Keyhole Slots on the rack. Insert and slide down to lock firmly into place. -
Page 9: Locking Power Cord - For Iec Type Pdu
Locking Power Cord - For IEC Type PDU Input Power Cord Step 1. Align and insert the Cable Tie from the upper side of the Fixed Stand and fasten it as shown below. Step 2. Align and insert the Cable Tie from the bottom side of the Fixed Stand and fasten it as shown below. -
Page 10: Electrical Installation
Electrical Installation Step 1 – Receptacle evaluation Ensure that the plug type of your PDU unit (e.g. NEMA 5-15P, NEMA 5- 20P, NEMA L5-30P) matches the wall receptacle type that you are using. PDU must be plugged into a three-wire, grounded wall receptacle only. The wall receptacle must also be connected to an appropriate branch CAUTION!! circuit/main with fuse or circuit breaker protection. -
Page 11: Product Features

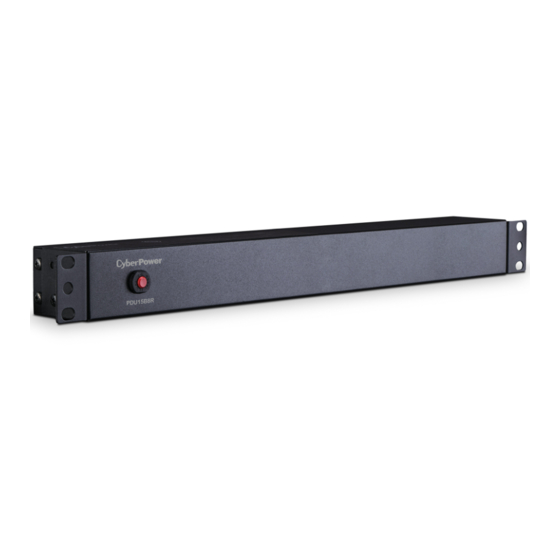

Basic Series (1U) Product Features Front View A. Mounting Bracket B. Circuit Breaker Back View A. Mounting Bracket D. AC Power Cord B. Back Outlets E. Screw Holes C. External Site Ground Technical Specifications PDU15B8R PDU20B10R Model Name PDU15B10R PDU15B12R... - Page 12 Basic Series (1U) Product Features Front View A. Mounting Bracket B. Circuit Breaker C. Front Outlets Back View A. Mounting Bracket D. AC Power Cord B. Back Outlets E. Cord Retention Tray Screw Holes C. External Site Ground Technical Specifications...
- Page 13 Basic Series (1U) Product Features Front View A. Mounting Bracket Back View Twist Type A. Mounting Bracket E. External Site Ground B. Back Outlets (IEC 320 C13) F. AC Power Cord C. Back Outlets (IEC 320 C19) G. Cord Retention Tray Screw Holes D.
- Page 14 Basic Series (1U) Product Features Front View Normal Type BANK1 BANK2 BANK1 A. Mounting Bracket B. LED Indicators C. Front Bank 1 Outlets High Voltage Type BANK1 BANK2 A. Mounting Bracket B. LED Indicators C. Front Bank 1 Outlets D. Front Bank 2 Outlets...
-
Page 15: Basic Series (0U)
Basic Series (0U) Product Features Front View Back View A. AC Power Cord A. Bracket Screw Hole B. Circuit Breaker B. Keyhole Mount Peg Screw Holes C. External Site Ground D. Cord Retention Tray Screw Holes E. Front Outlets Technical Specifications... - Page 16 Basic Series (0U) Product Features Front View Back View High Voltage Type: A. AC Power Cord B. Circuit Breaker (Bank 1) C. Circuit Breaker (Bank 2) High Voltage Type: D . External Site Ground A. AC Power Cord E . Front Outlets(Bank 1) B.
-
Page 17: Metered Series (1U)
Metered Series (1U) Product Features Front View A. Mounting Bracket C. LED Meter Readout B. Circuit Breaker D. Front Outlets Back View A. Mounting Bracket D. AC Power Cord B. Back Outlets E. Cord Retention Tray Screw Holes C. External Site Ground Technical Specifications PDU15M2F8R PDU20M2F8R... -
Page 18: Metered Series (0U)
Metered Series (0U) Product Features Front View Back View A. AC Power Cord A. Bracket Screw Hole B. Circuit Breaker B. Keyhole Mount Peg Screw Holes C. External Site Ground D. Cord Tray Screws Holes E. Front Outlets F. LED Meter Readout Technical Specifications PDU15MV20F PDU20MV20F... - Page 19 Metered Series (0U) Product Features Front View Back View A. Bracket Screw Hole B. Keyhole Mount Peg Screw Holes Twist Type: A. AC Power Cord B. Circuit Breaker C. External Site Ground D. Front Outlets E. Meter Readout F. Front Outlets G.Cord Retention Tray Screw Holes High Voltage Type:...
- Page 20 Meter Series (0U) Product Features Front View Back View A. AC Power Cord B. Bracket Screw Hole C. Keyhole Mount Peg Screw Holes Normal Type: A. AC Power Cord B. Circuit Breaker(Bank 1) C. Circuit Breaker (Bank 2) D. External Site Ground E.
-
Page 21: Conformance Approvals
Conformance Approvals FCC Warning WARNING!! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. WARNING!! This equipment has been tested and found to comply with the limits for a Class A Digital Device, pursuant to Part 15 of the FCC Rules. -
Page 22: Customer Service & Warranty
Cyber Power International Feel free to contact our Tech Support department with installation, troubleshooting, or general product questions. Cyber Power Systems, Inc. Web: www.cyberpower.com For USA and Canada: 4241 12th Ave East, Suite 400 Shakopee, MN55379 Toll-free: (877) 297-6937 For all other regions: Please visit our website for local contact information. - Page 23 What are the Limitations? 1. This Warranty does not apply unless the Product and the equipment that was connected to it were connected to properly wired and grounded outlets (including compliance with electrical and safety codes of the most current electrical code), without the use of any adapters or other connectors.
- Page 24 Cyber Power Systems, Inc. www.cyberpower.com K01-0000742-01...
