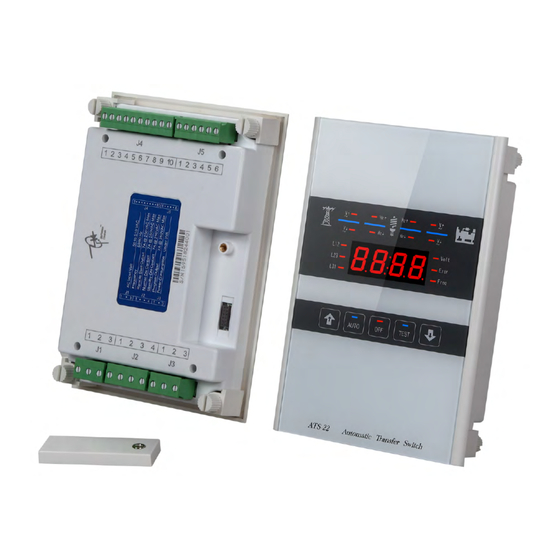

- Page 1 MTS Power Products MIAMI FL 33142 ATS-21/22AG Automatic Transfer Switch And Control PLC Operator’s Manual Dedicated Single Phase Transfer Switch With Touch Screen Controls...

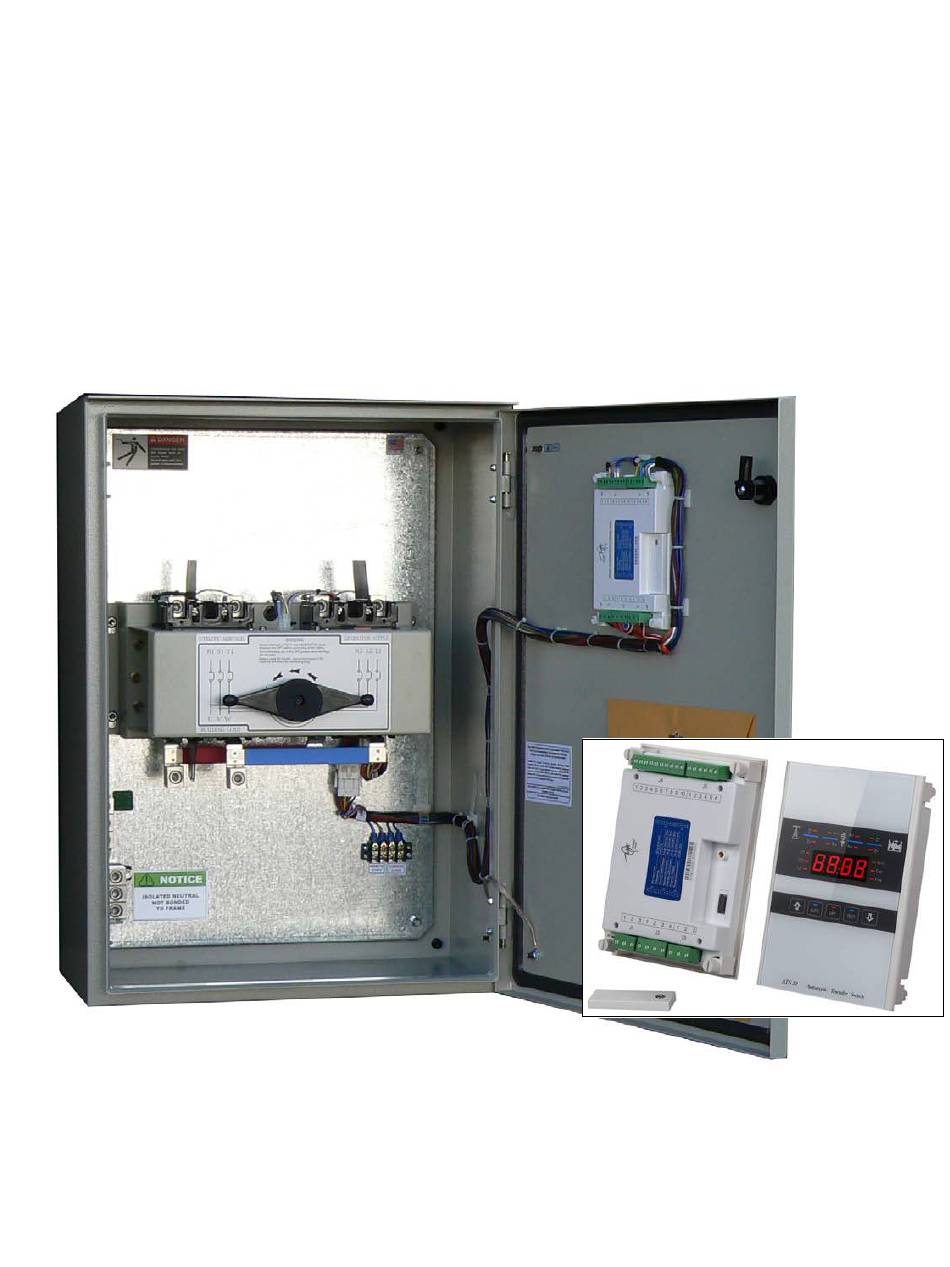

- Page 2 Emergency Power ATS-22AG Control Connections and position indicators Normal Power Connections Manual Override Remote Start plus LOAD Alarm connection Power Active for 60 sec ONLY Connections When ATS is on Generator 400 amp size in typical enclosure with location of customer connections...
- Page 3 ATS-22AG Automatic Transfer Switch INTRODUCTION ● Programmable exerciser with Load. 1.1 Preliminary Comments Safety ● Exerciser set for one time per week wih load. Precautions ● Emergency position contacts for Auto-Dialer The manual covers installation, operation and ● Simple programming on-site maintenance of the ATS-22AG Automatic Transfer ●...
-
Page 4: Replacement Parts
ATS-22AGAG Automatic Transfer Switch Line 1: Time Delay Emergency to Normal O/V adjustment range : 110VAC to 300VAC (TDEN) O/V reset value: −10VAC (Not adjustable) U/V adjustment range: 80VAC to 240VAC TDEN delays the transfer from the emergency back to the grid, permitting the stabilization of the U/V reset value: +10VAC (Not adjustable) grid before returning. -
Page 5: Operation
ATS-22AGAG Automatic Transfer Switch 1: LED Test Touch & hold the OFF button , all LEDs light up. 2.3.1 Increase (▲) Button When programming the up (▲) button increases the displayed parameter by one unit. If held, the up (▲) button continues to scroll. - Page 6 ATS-22AG Automatic Transfer Switch 2.4 Panel LED Outputs Eight individual red and blue LEDs light bars perform or indicating each function. Emergency over voltage Information concerning the LEDs output Emergency under voltage Power available display normal / grid & emergency Emergency over frequency Normal / grid over voltage Emergency under frequency...
- Page 7 ATS-22AG Automatic Transfer Switch 3.4 Manual TEST (TEST) SECTION 3: OPERATION 3.1 General Touching TEST simulate a loss of normal/grid power. Permitting the controller to start the engine The four functions of the ATS-22AG: and carry out a power transfer UNDER load for 20 ●...
- Page 8 3.7 To enter the Line by Line Programming Table – Simply touch and hold the OFF button for 5 sec. and after the screen flashes 3 times – remove finger To go from one line to the next touch OFF each time & change values by using the UP/Down Arrows.
-
Page 9: Section 4: Installation Instructions
ATS-22AG Automatic Transfer Switch 3.8 Specification Summary PARAMETER SPECIFICATION 50 VAC to 300 VAC 50/60 HZ AC Voltage Measurement Range 40HZ to 75HZ Frequency Measurement Range 7A @ 250VAC Max Remote Start Contact 7A @ 250VAC Max Normal ON Contact 7A @ 250VAC Max Emergency ON Contact 7A @ 250VAC Max... - Page 10 ATS-22AG Automatic Transfer Switch 4.3 Unit Dimensions ( All Dimensions in MM. ) 4.4 Installation Reference Screw Panel Cut-out Silicon waterproof seal Fix bracket Screw Fix bracket A T S Metal door ______________________________________________________________________________________...
- Page 11 ATS-22AG Automatic Transfer Switch SECTION 5 : TYPICAL WIRING AG Unit ______________________________________________________________________________________...
