Timex TK321 Instruction Manual

TK321 - IB (English version)
Size: 399 x 266 mm paper sheet, 133 x 133 mm (fold)
Color: Black
Mar. 24, 2021
KIDS SLEEP TRAINING ALARM CLOCK
WITH SOUND MACHINE
For additional information, online registration,
and exclusive special offers visit our website:
Display
PM Indicator
Wake Light
Bedtime
Backup Battery
Your new Timex Clock includes a built-in battery backup system that will maintain the time and
alarm settings during a temporary power interruption. Remove the battery pull tab located on the
back of the unit. When the Low Backup Battery Icon glows on the display, it is time to the
replace the backup battery.
1. Keep unit connected to AC power when replacing
the battery, or you will lose settings.
2. Use a Phillips screwdriver to open the battery
backup compartment door located on the back of
the unit.
3. Remove exhausted battery and replace with a
fresh CR-2450 battery, making sure the '+' side is
facing up.
4. Replace the battery compartment door. Do not
overtighten the screw.
Product Care
• A protective film is attached to the front of the display. It can be removed by peeling it off.
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or
other protective material should be placed between it and the furniture.
3
Table of Contents
Model: TK321
What's in the Box.................................................................................................................................. 1
Controls Overview ................................................................................................................................ 2
Display / Backup Battery / Product Care .............................................................................................. 3
Set Up / Setting the Time ..................................................................................................................... 4
Setting and Using Sound Alarm ........................................................................................................... 5
Bedtime Alarm / Display Dimmer.......................................................................................................... 6
Wake Light / Sounds ............................................................................................................................ 7
Sleep Timer / Nap Timer....................................................................................................................... 8
Lock Mode / Night Light........................................................................................................................ 8
Safety Information ................................................................................................................................ 9
FCC Information ................................................................................................................................. 10
Warranty Information ...........................................................................................................................11
What's in the Box
This product ships with the following items. Make sure all are present.

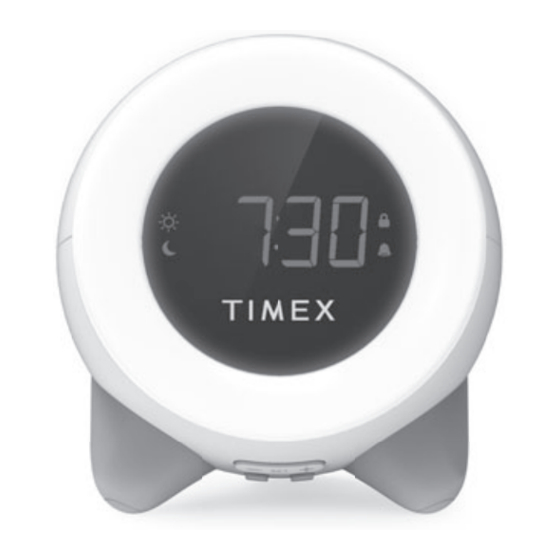

1. TK321 Alarm Clock
Connecting to Power Source
Connect the included AC adapter to the DC jack located on the back of the unit and connect the other
Low Backup
end to a working wall outlet.
Battery
Lock Mode
Alarm Indicator
Setting the Time
1
Press and hold the Time Set Button until the display
flashes and one beep sounds. Release the button.
2
Battery Backup
Compartment
Press and release the Minus Button (-) repeatedly to adjust the hour.
Press and release the Plus Button (+) repeatedly to adjust the minute.
NOTE: The PM indicator will light on the display when the hour is set for PM.
Tip: Press Alarm Button while in Time Set Mode to toggle between 12/24 hour display.
3
Press the Time Set Button to finish. Two beep
sounds to confirm settings.
KIDS SLEEP TRAINING ALARM CLOCK
WITH SOUND MACHINE
For additional information, online registration,
and exclusive special offers visit our website:
2. Instruction book 3. Power adapter
1
Set Up
1
TEST
RESET
2
3
ARMING/DISARMING THE ALARM
To Arm: Press and release the Alarm Button twice. The alarm icon will appear on the clock display.
To Disarm: Press and release the Alarm Button twice. The alarm icon will disappear from the display.
SNOOZING THE ALARM
RESETTING AN ALARM TO COME ON THE NEXT DAY
4
Controls Overview
Bottom Panel
Back Panel Top Panel
Battery Backup
Compartment
DC
Jack
(V/A)
2
Setting and Using A Sound Alarm
Press and hold Alarm Button until the display flashes and one beep sounds. Release the button.
Press and release the Minus Button (-) as needed to adjust the hour.
Press and release the Plus Button (+) as needed to adjust the minute.
NOTE: The PM indicator will light on the display when the hour is set for PM. There is no AM indicator.
Press and release the Alarm Button and two beeps sound to confirm
settings. The alarm icon will appear on the clock display to confirm the
alarm is armed.
Press and release the Snooze/Night Light Button when the alarm sounds to
silence it for 9 minutes. Snooze can be used several times during an alarm cycle.
To silence a sounding alarm and reset it come on the next day at the same
time, press and hold the Snooze/Night Light Button for 2 seconds.
5
Snooze/
Night Light
