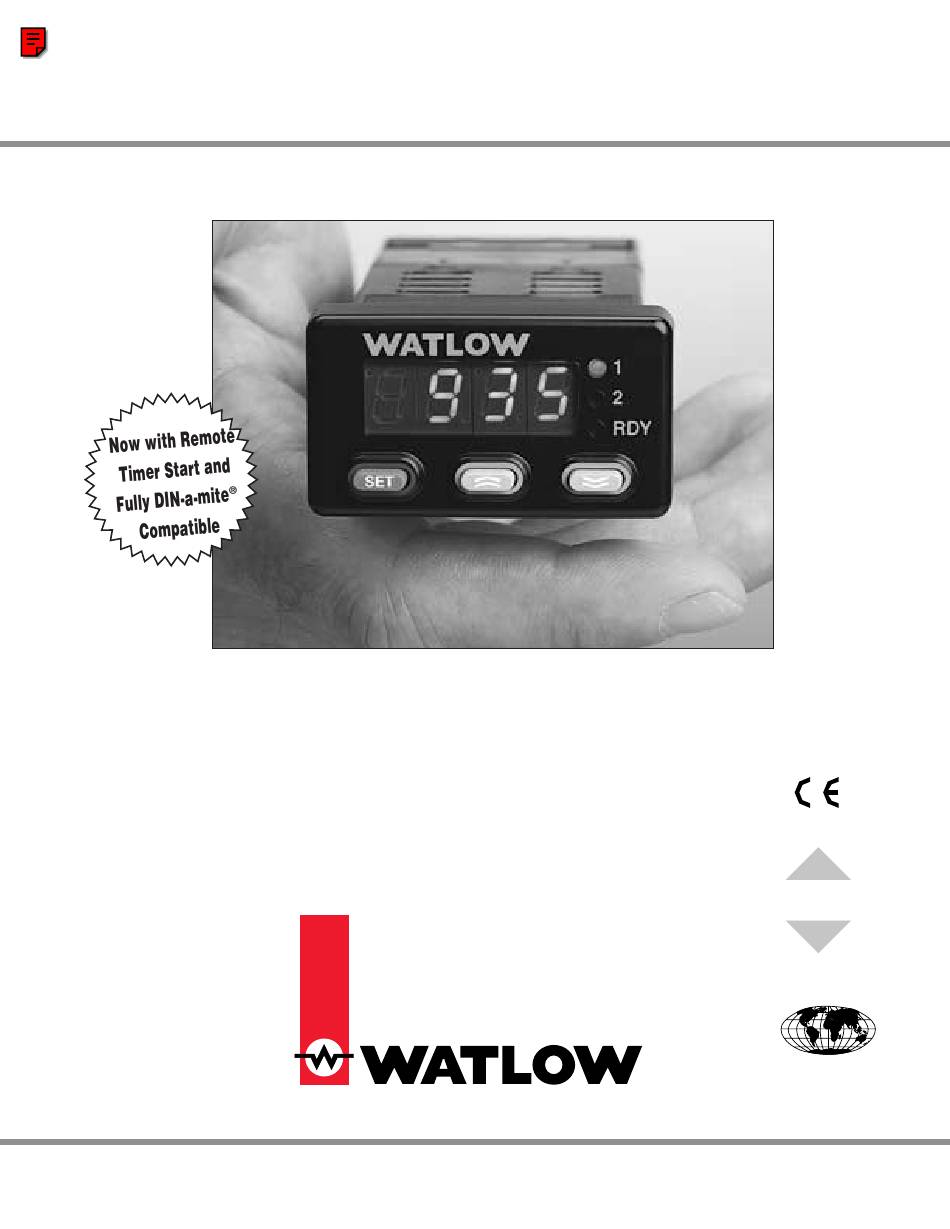

Series 935B
Temperature Controller
with Countdown Timer
User Levels:
• New User ...................................... Go to page 2
• Experienced User / Set-Up ........ Go to page 11
• Expert User ................................ Go to page 51
Installers:
• Mounting ..................................... Go to page 40
• Wiring Information .......................Go to page 44
