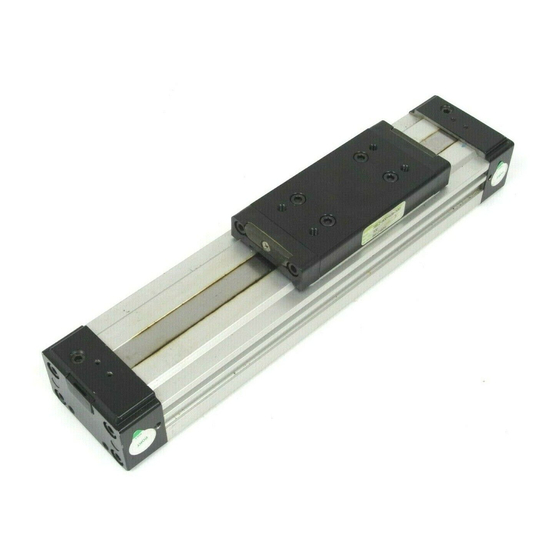

Rodless cylinders
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

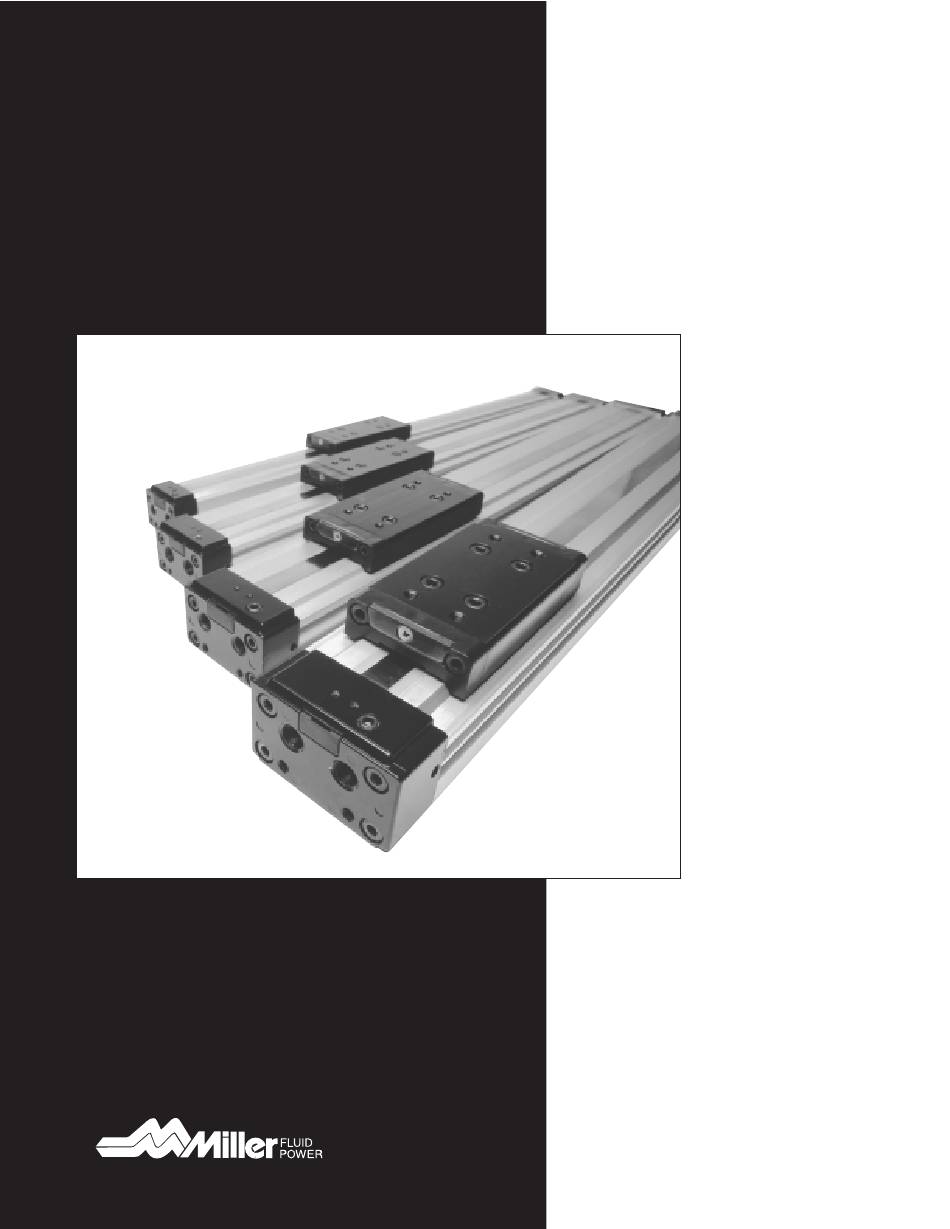

SRL2-M
Rodless Cylinders
Up to 100 PSI
Bore Sizes
Strokes to 196"
www.comoso.com
5
1
⁄
" through 2
⁄
"
8
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRL2-M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miller SRL2-M Series

Summary of Contents for Miller SRL2-M Series

  • Page 1 SRL2-M Rodless Cylinders Up to 100 PSI Bore Sizes ⁄ " through 2 ⁄ " Strokes to 196" www.comoso.com...

  • Page 2: Table Of Contents

    500-2500 PSI Miller One Year Warranty Miller's Rodless cylinders are warranted for one (1) year to be free from defects in workmanship and material. Miller will replace, free of charge including lowest transportation costs, but not including installation or any other charges, any part that Miller's inspection shows to be defective.

  • Page 3: Features And Benefits

    Miller SRL2-M Series Rodless Cylinders SRL2-M Rodless Cylinder Features and Benefits The SRL2-M Rodless Cylinder provides increased performance in addition to offering more options. Adjustable stroke and shock absorber option available Two sets of port locations standard. One side port at for full cylinder stroke.
  • Page 4 Miller SRL2-M Series Rodless Cylinders Space Saving/Low Profile High speed operation. No lubrication required. Bores: 16mm ( ⁄ " nominal) Strokes: To 196 inches 20mm ( ⁄ " nominal) 25mm (1" nominal) 32mm (1 ⁄ " nominal) 40mm (1 ⁄...
  • Page 5 Miller SRL2-M Series Rodless Cylinders High Load Bearing Capacity Spring-loaded tension arms located on the work table maintain constant pressure on the dust seal belt to ensure external sealing protection. Magnetic pistons are standard so that position sensing switches can be added at any time without modifying the cylinder.

  • Page 6: Dimensions

    Miller SRL2-M Series Rodless Cylinders Dimensions (ø16~ø20) SRL2-M 00 w/Cylinder Switch LL + STROKE L + STROKE VERTICAL (V) LEAD TYPE 4-TE DEPTH TL SWITCH (see page 10) 2-PLUG 2-Q(PLUG) HEX SOCKET HEAD BOLT 4-M DEPTH N STROKE 4-M DEPTH N...
  • Page 7 Miller SRL2-M Series Rodless Cylinders Dimensions (ø25~ø63) LL + STROKE L + STROKE SRL2-M 00 w/Cylinder Switch 4-TE ? TL VERTICAL (V) LEAD TYPE SWITCH (see page 10) HEX SOCKET HEAD BOLT 2-Q PLUG 4-M DEPTH N P + STROKE...

  • Page 8: Switches

    Miller SRL2-M Series Rodless Cylinders Cylinder Switch Large array of Position Sensing Switches can be easily mounted on standard SRL2-M rodless cylinder 1. Proximity Switch - Highly reliable detection - No internal moving parts - Eliminates chattering - Faster wiring time. M2V5,...

  • Page 9: Switch Specifications And How To Order

    Miller SRL2-M Series Rodless Cylinders Switch Specifications Chart Contactless Switch Reed Switch Model M2V5, M2H5, M2WV5 M3V5, M3H5 M3WV5 M0V5, M0H5 M5V5, M5H5 Programmable Programmable controller, Relay Prog. controller, Relay, Application Prog. controller, Relay controller IC circuit, low wattage solenoid valve...

  • Page 10: Switch Operating Range

    Miller SRL2-M Series Rodless Cylinders Operating Range (1) M0V5, M0H5, M2V5, M2H5, M3V5, M3H5, M5V5, M5H5: The (2) Proximity switches with two-color indicator, M2WV5, M3WV5: operating range is the distance, when the piston moves, between The operating range is within the red-green-red lights on. The green one position where the switch first turns on and the other position in light shows the best mounting range.

  • Page 11: Notes On Switch Usage

    Miller SRL2-M Series Rodless Cylinders Notes on usage - Contactless Switch Connection to Programmable Controller (Sequencer) Connection depends on type of programmable controller. M2V5, M2H5, M2WV5, M3V5, M3H5, M3WV5 Conneciton should be as shown n Fig. 8-12. Lead Wire Connection...
  • Page 12 Miller SRL2-M Series Rodless Cylinders Parallel Connection Black (White) Blue (Black) Switch On M25 and/or M2WV5 switches, the leakage current increases Source Voltage based on the number of connections. When one switch turns on Wiring by user and off, as the voltage at both ends of the switch connected in...

  • Page 13: Cylinder Specifications And How To Order

    Miller SRL2-M Series Rodless Cylinders Rodless Cylinder Saves space, withstands high loads, moves at high speeds without lubrication Specifications Model SRL2-M (Standard w/switch) Operating Medium Compressed Air Maximum Pressure, PSI 100 PSI ø16\ø20 Bores Minimum Pressure, PSI ø25\ø32\ø40 Bores 14.5 ø50\ø63\ Bores...

  • Page 14: Accessories And Options

    Miller SRL2-M Series Rodless Cylinders Accessories and Options Floating Joint Absorbs misalignment between cylinder and load FJ dimension is the maximum horizontal float FK dimension is the maximum vertical float Tube Center Support Brackets (LB) (LB1) C Mounts Provides mounting surface 180° from work table See page 20 for additional information on using C-mounts www.comoso.com...
  • Page 15 Miller SRL2-M Series Rodless Cylinders Accessories and Options Floating Joint Bore Part Number inches 2.238 0.827 1.339 0.945 0.673 1.181 1.575 0.118 0.134 0.118 0.118 0.472 1.457 715-SRL2-16-FLJNT inches 2.638 0.984 1.535 1.181 0.787 1.575 2.205 0.157 0.177 0.118 0.118 0.551...

  • Page 16: Stroke Adjuster And Shock Absorber Dimensions

    Miller SRL2-M Series Rodless Cylinders Accessories and Options All Stroke Adjustment and Shock Absorber Dimensions L + Stroke SH = max. energy absorption Bore (mm) MAX MIN IN.-LBS. in. 0.71 0.16 1.65 1.38 0.57 0.18 0.98 1.93 1.34 0.24 0.16 1.46 5.87 ø16...

  • Page 17: Technical Information

    Miller SRL2-M Series Rodless Cylinders Technical Information Positioning of Stroke Adjustment Unit Stroke adj. plate bolt Mounting bolt Stroke adj. plate Shock absorber nut Shock absorber nut Shock absorber Stopper bolt Shock absorber Stopper bolt nut Mounting Mounting bolt Stopper bolt nut...
  • Page 18 Miller SRL2-M Series Rodless Cylinders (6) Allowable collision energy of shock absorber. Figure 3. Effective Weight Versus Impact Velocity By using the following formula, calculate collision equivalent for Various Size Shock Absorbers. effective weight (We) and collision energy (E), and ensure that both are below the allowable values shown in Figure 3.
  • Page 19 Miller SRL2-M Series Rodless Cylinders (7) Calculation examples for SRL2-M-20 with shock absorber Intermediate Stroke Stop NCK-00-0.7-C. Slit tube type rodless cylinders, by the nature of their design, will allow a very small amount of air to leak externally including the SRL2-M Example 1.
  • Page 20 Miller SRL2-M Series Rodless Cylinders Piping Work Environment System components should be mounted in areas free from corrosive Piping should be of a rust resistant material and be of a sufficient atmosphere, rain, water and direct sunlight. If cutting oils, coolants, oil internal area for piston speed required.

  • Page 21: Rodless Cylinder Sizing Guide

    Introduction Unlike traditional cylinders with piston rods, where load forces are Note: Miller Fluid Power Application Engineers will be happy to assist normally experienced on the cylinder centerline, the design of rodless you in evaluating your application. For your convenience, there are typical application loading diagram forms on pages 28-31 which show cylinders dictates that all load forces are eccentric to some degree.
  • Page 22 Miller SRL2-M Series Rodless Cylinders Typical Mounting Diagrams and Loading A. Axis X–X Horizontal Loading Type Mounting Diagram Diag # Resistive x S1 — — Force Only x S1 — x S3 x S1 x S2 x S2 — —...
  • Page 23 Miller SRL2-M Series Rodless Cylinders Figure 9 shows the maximum allowable moments for each of the three Figure 10 types of loading: Bending, Radial, and Cross moments. Max. unsupported Max. Allowable Bore Length [L] in. Weight [W] Lbs. The sum total of each of these types of moments, divided by each of the at Max.
  • Page 24 Miller SRL2-M Series Rodless Cylinders Tube Deflection Without Mid-Support SRL2-M-32 inch W=35 lbs. .032 W=70 lbs. .024 W=140 lbs. .016 .008 inch Stroke SRL2-M-16 SRL2-M-40 W=8 lbs. W=55 lbs. inch inch .048 .016 W=16 lbs. W=109 lbs. .040 .012 .032 W=32 lbs.
  • Page 25 Miller SRL2-M Series Rodless Cylinders Moment and Deflection Piston Table Angular Deflection Due To Load Moments Applied SRL2-M-32 Angle Tolerance Zone ° IN-LB SRL2-M-16 SRL2-M-40 Angle Tolerance Zone Angle Tolerance Zone ° ° IN-LB IN-LB SRL2-M-20 SRL2-M-50 Angle Tolerance Zone Angle Tolerance Zone °...
  • Page 26 Miller SRL2-M Series Rodless Cylinders Load Factor and Forces Figure 12 The Load Factor must be determined to ensure that the cylinder force available is adequate to overcome the total resistive force plus the Moment Friction Factor additional friction caused by the load moments. This is done by...
  • Page 27 SRL2-M Rodless Cylinder Sizing Forms The following pages show the data that is required in order to size a rodless If you wish Miller Fluid Power to size the rodless cylinder for you, please cylinder. They are typical load-mounting diagrams reflecting the three types...

  • Page 28: Sizing Forms

    Miller SRL2-M Series Rodless Cylinders Sizing Forms SRL2-M Resistive Forces Required Data Horizontal Mount, Cond. 1 Diagram Force Lbs. Distance In. Fx1 = Zf = – – Fz1 = Xf = Center of W1 = Gravity Fy2 = Zf =...
  • Page 29 Miller SRL2-M Series Rodless Cylinders Sizing Forms SRL2-M Resistive Forces Required Data Horizontal Mount, Cond. 2 Diagram Force Lbs. Distance In. – Fx1 = Zf = – Fz1 = Xf = Center of Fy2 = Zf = Gravity Fz2 =...
  • Page 30 Miller SRL2-M Series Rodless Cylinders Sizing Forms SRL2-M Resistive Forces Vertical Mount, Cond. 3 Required Data – Diagram Force Lbs. Distance In. – Fx1 = Zf = Fz1 = Xf = W1 = Zw = Fy2 = Zf = Fz2 =...

  • Page 31: Air Consumption Chart

    Miller SRL2-M Series Rodless Cylinders Sizing Forms SRL2-M Resistive Force Load Guided Required Data Mounting Position: Circle One Horizontal Vertical Operating Pressure (PSI) Weight W , (Lbs.) Floating Joint Friction (Resistive) Force F , (Lbs.) Stroke, (In.) Velocity, (In./Sec.) See pages 14, 15 and 20 for additional information on external guides and floating joint.

  • Page 32: Plant Locations

    Miller Fluid Power 1214 Kamato Mississauga, Ontario, Canada L4W1Y1 (800) 268-0205—Ontario & Quebec (905) 625-2780—Elsewhere (905) 625-8724—FAX Miller Fluid Power (UK) Ltd. Unit 3, Bailey Drive Norwood Industrial Estate Killamarsh, Sheffield South Yorkshire, England S31 8HB (441) 462-438303 (441) 462-420901—FAX All specifications and information subject to change without notice or prior obligation.
