Operator's Manual

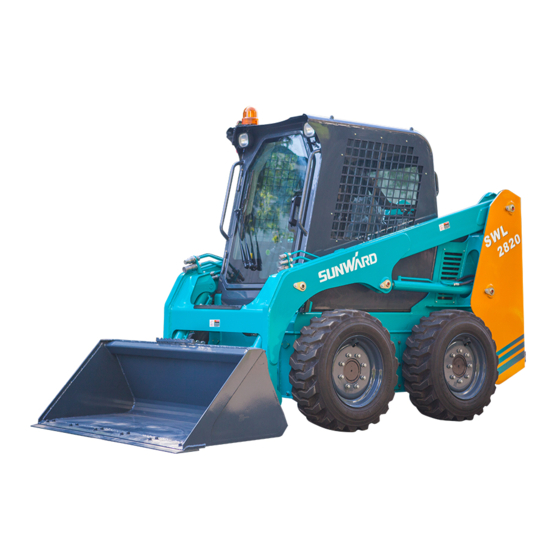

SKID-STEER LOADER
HUNAN SUNWARD INTELLIGENT MACHINERY CO., LTD.
OPERATION AND MAINTENANCE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWL2820 and is the answer not in the manual?

Questions and answers

Сергей
May 23, 2025

Здравствуйте.Как отпустить стрелу ковша при заглохшем двигателе Sunward swl 2820

0
1 comments:
Mr. Anderson
May 25, 2025

To release the bucket arm on a Sunward SWL2820 when the engine is off:

1. Stop the engine.
2. Release the residual pressure.
3. Raise the restrain bar.
4. Get off the machine.
5. Rotate the levers to unlock the coupling pins.
6. Ensure the coupling pins are disengaged.

These steps allow you to safely unhitch the bucket or other equipment.

This answer is automatically generated

0
