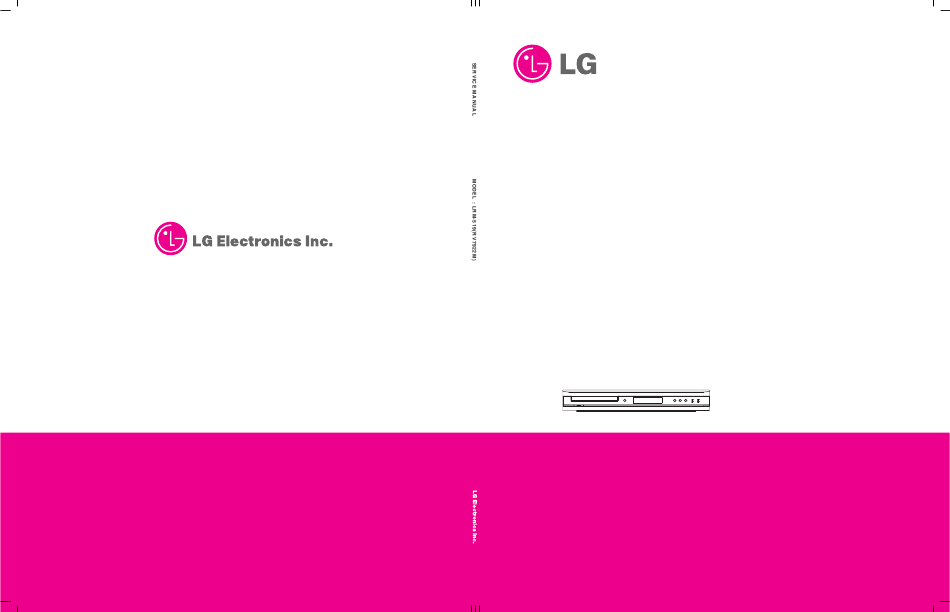

LG LRM-519 DIGITAL
MEDIA RECORDER
SERVICE MANUAL
SERVICE MANUAL
MODEL : LRM-519(RV7922M)
CAUTION
BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS"
IN THIS MANUAL.
P/NO : 3829RVN004L
AUGUST, 2005

Advertisement

Table of Contents
loading

Related Manuals for LG LRM-519

Summary of Contents for LG LRM-519

  • Page 1 LG LRM-519 DIGITAL MEDIA RECORDER SERVICE MANUAL SERVICE MANUAL MODEL : LRM-519(RV7922M) CAUTION BEFORE SERVICING THE UNIT, READ THE “SAFETY PRECAUTIONS” IN THIS MANUAL. P/NO : 3829RVN004L AUGUST, 2005...

  • Page 2: Table Of Contents

    SECTION 1 SUMMARY CONTENTS PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS....1-2 SERVICING PRECAUTIONS..................1-3 INTRODUCTION ......................1-4 SPECIFICATIONS .....................1-5 SYSTEM S/W UPGRADE ..................1-7 TEST S/W .........................1-8...

  • Page 3: Product Safety Servicing Guidelines For Video Products

    PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS IMPORTANT SAFETY NOTICE A.C. Voltmeter This manual was prepared for use only by properly trained audio-video service technicians. When servicing this product, under no circumstances should the original design be modified or altered without permission from Zenith Electronics Corporation.

  • Page 4: Servicing Precautions

    SERVICING PRECAUTIONS CAUTION: Before servicing the HD/SD PERSONAL VIDEO Electrostatically Sensitive (ES) Devices RECORDER & RECEIVER WITH GEMSTAR covered by Some semiconductor (solid state) devices can be damaged this service data and its supplements and addends, read and easily by static electricity. Such components commonly are follow the SAFETY PRECAUTIONS.

  • Page 5: Introduction

    INTRODUCTION - MSDVR & DVD Recorder receives the analog NTSC or cable broadcasting and compresses the audio and video file into the MPEG format to save on HDD or record on DVD. It supports the additional service of EPG (Electronics Program Guide) provided from MS. - Configuration For the CPU, Intel Celeron 733 of x86 is used and for peripheral chips, CPU I/F, Memory I/F and North Bridge and system parts for the North Bridge part that supports PCI I/F, IDE I/F serial I/F and USB I/F for...

  • Page 6: Specifications

    SPECIFICATIONS Television System NTSC, Analog American Standard (480i) Channel Coverage Unscrambled Air/Analog CATV 1-135 Draft Specification NTSC Reception 1. Terrestrial (ANT/Analog) 2. Cable (CABLE/Analog) DVD±R/W USB 2.0 Network 1. Ethernet(10/100) 2. Modem(56kbps) HDD(160GB) DVD ± R/W Specifications DVD-ROM : 4.7GB (Single Layer) 8.5GB (Dual Layer) DVD-R : 4.7GB (Ver.
  • Page 7 * DVR – Recording & Scheduling • Instant recording / Series recording / Manual recording • Conflict management • Duplicate checking (recognize and ignore reruns and repeats) * DVR - Live TV • 90 minutes buffer • Recording Pause buffer •...

  • Page 8: System S/W Upgrade

    SYSTEM S/W UPGRADE 1. ON-LINE S/W UPGRADE METHOD - The software can be upgraded by connecting with Ethernet or MODEM. Main Menu -> settings -> guide set-up -> ??? The softwares that can be upgraded online are as follows. - Main S/W - Bootloader - DVD Firmware 2.

  • Page 9: Test S/W

    TEST S/W 1. TEST METHOD USING THE DEBUG BOARD There are two test methods when there is an issue with the main board. When it is not properly booted and the composite video is not displayed, you can check the status of the board using the Debug Board for debugging prepared in the Debug port of the main board.
  • Page 10 BOOTLOADER ERROR/STATUS CODE Code Name Interpretation/Description 0x30 System Bus Frequency During L2 cache initialization, the processor is running at a faster or Mismatch slower bus frequency than it is designed for. This is a fatal error, and the processor will be halted. Detected during cache initialization. 0x31 No Memory Detected No memory was detected during the memory initialization.
  • Page 11 2. BOARD TEST METHOD USING THE JIG SET Diagram of JIG test composition For the JIG set, use the RV7922M set excluding the main board and HDD. When using the set for JIG, you must use the Debug Board. You must use the HDD for JIG. Power DVD Loader Main Board...
  • Page 12 SECTION 2 CABINET & MAIN CHASSIS CONTENTS EXPLODED VIEWS ........................2-2 1. Cabinet and Main Frame Section ...................2-2 2. Deck Mechanism Section(RL-05) ...................2-3...
  • Page 13 EXPLODED VIEWS 1. CABINET AND MAIN FRAME SECTION...
  • Page 14 2. DECK MECHANISM SECTION(RL-05)
  • Page 15 SECTION 3 ELECTRICAL CONTENTS ELECTRICAL TROUBLESHOOTING GUIDE ....................3-2 1. POWER(SMPS) CIRCUIT ........................3-2 2. SYSTEM PART CIRCUIT .........................3-3 3. VIDEO PART-1............................3-5 4. YPBPR VIDEO OUTPUT TROUBLESHOOTING..................3-6 5. S-VIDEO VIDEO OUTPUT TROUBLESHOOTING ..................3-7 6. CVBS VIDEO OUTPUT TROUBLESHOOTING ..................3-8 7. AUDIO TROUBLESHOOTING........................3-9 8.

  • Page 16: Electrical Troubleshooting Guide

    VFD OK Connection OK connect Front Power Cable Front power cable Connection OK connect Display Cable Display Cable “LG logo” display on Monitor OK Connection OK Connect Display Port Proper display port Selection (S800) OK select “CH No. & DATE”...

  • Page 17: System Part Circuit

    2. SYSTEM PART CIRCUIT Power Cable Connection Power on “LG logo” display Check soldering LED801 “ON” OK on Monitor OK state of Board IC900 (1-Pin) +12V J900 Connector C919 +1.25V OK Power Cable Check system function IC900 change Q909 (2-Pin) C930 +1.15V OK...
  • Page 18 IC302(74-pin) IC302(63-pin) IC302 change High=+3.3V OK High=+3.3V OK Check IC104 IC300(24-pin) R326 Re-soldering High=+3.3V OK HDD Cables HDD Cables Connection OK Re-connection IC302(64-pin) R377, J302 High=+3.3V OK Re-soldering Change HDD...

  • Page 19: Video Part-1

    3. VIDEO PART-1 No display IC501(53-pin) IC302(73-pin) IC302 change ‘3.3V’= high OK ‘3.3V’=high OK R373 Re-soldering IC501(63-pin) OSC500(3-pin) OSC500 change 27MHz clock in OK 27MHz clock out OK R508 Re-soldering IC501(51,54-pin) IC103 check Clock in OK IC501(44,45-pin) Q504,Q505, R532 ~ Re-soldering I2C BUS OK R535 soldering OK...

  • Page 20: Ypbpr Video Output Troubleshooting

    4. YPBPR VIDEO OUTPUT TROUBLESHOOTING No display Video Cable Cable connect connection OK S800 setting 480i S800 status OK or 480p IC510(3,5-pin) Video IC509(3-pin) Video Video Part-1 check Video Part-1 check signal input OK signal input OK IC509,510 (8-pin) IC803 (4-pin) Q815, R881 ~ 883, +5V OK Under +2.5V OK...

  • Page 21: S-Video Video Output Troubleshooting

    5. S-VIDEO VIDEO OUTPUT TROUBLESHOOTING No display Video Cable Cable connect connection OK S800 status OK S800 setting CVBS IC508(3,5-pin) Video Video Part-1 check signal input OK IC508 (8-pin) +5V IC803 (4-pin) Q815, R881~883, Under +2.5V OK R839 Check IC803 Check IC508 (4-pin) -5V J900 (3-pin) check IC508(1,7-pin) Video...

  • Page 22: Cvbs Video Output Troubleshooting

    6. CVBS VIDEO OUTPUT TROUBLESHOOTING No display Video Cable Cable connect connection OK S800 setting CVBS S800 status OK or 480i IC509(5-pin) Video Video Part-1 check signal input OK IC509 (8-pin) +5V IC803 (4-pin) Q815, R881~883, Under +2.5V OK R839 Check IC803 Check IC509 (4-pin) -5V J900 (3-pin) check...

  • Page 23: Audio Troubleshooting

    7. AUDIO TROUBLESHOOTING Audio output problem IC500 (11-pin) IC104 Soldering High = “1” OK Check IC500 (5, 6, 10-pin) Clock System part check / Data / Sync Input Check IC500 (2, 3-pin) 24.576MHz IC500 (1, 9-pin) J900 Connector clock In/Out OK +3.3V out OK Power Cable Check IC500 (25, 38-pin)

  • Page 24: Tuner Troubleshooting

    8. TUNER TROUBLESHOOTING Tuner problem TU500(2,6-pin) IC803 (4-pin) Q815, R881~883, +5V Input OK Under +2.5V OK R839 Check IC803 Check TU500(8-pin) +30V J900 (2-pin) Check Input OK R651,652,724, R651, 652, 724, J900 (2-pin) Check 725 Soldering Ok 725 Re-soldering IC513 Check Tuner OK 3-10...

  • Page 25: Ethernet Troubleshooting

    9. ETHERNET TROUBLESHOOTING Ethernet problem Network Cable Network Cable Connection OK Connect Network Setup MAC Address Forwarding Factory Check OK Check OK Network Re-Setup IC308 (60, 61-pin) 25 IC905 (2, 4-pin) IC905 (3-pin) J900 Connector MHz Clock In/Out OK +3.3V out OK +5.0V out OK Power Cable Check IC308 (51, 96-pin)

  • Page 26: Modem Troubleshooting

    10. MODEM TROUBLESHOOTING No Dial-up connection Connection Phone line IC307 (5,21-pin) IC905 Check +3.3V input OK J304(between 3,and Phone Line Check 4 Pin) 40~52V OK IC304 (3-pin) Clock IC304 (1-pin) Clock Check OSC500 Out 2048KHz OK Input 27MHz OK Re-soldering IC304 DTE Setup &...

  • Page 27: Dvd Troubleshooting

    11. DVD TROUBLESHOOTING DVD problem DVD Loader J902 Connector Power-On OK Power Cable Check DVD Tray Open/ Front Panel Open/ Front Panel Check Close Check OK Close Key Check OK J303 Connector FFC Cable Check DVD Auto-Loading DVD Region Code DVD Disc Check Check OK DVD Problem...

  • Page 28: Ir Blaster Troubleshooting

    12. IR BLASTER TROUBLESHOOTING IR Blaster Problem Setting IR Blaster Configuration R859 IR Signal J804(2-pin) “FLD_ Check IC302 & Present OK CLK” Present OK Re-soldering J804(4-pin) “FLD_ RXD” Present OK IR Blaster J804(3-pin) “FLD_ Operation OK TXD” Present OK Change Front-Board 3-14...

  • Page 29: Serial (Rs-232) Troubleshooting

    13. SERIAL (RS-232) TROUBLESHOOTING Serial (RS-232) Problem Serial Cable Serial Cable Connection OK Connect IC805(16-pin) +5V J900 Connector Input OK Power Cable Check J805(11-pin) “TX Check IC302 & Data” Present OK Re-soldering J805(14-pin) “TX Check IC805 & Data” Present OK Re-soldering J805(13-pin) “RX”...

  • Page 30: Waveforms

    WAVEFORMS 1. SYSTEM PART-1 3-16...

  • Page 31: System Part-2

    2. SYSTEM PART-2 3-17...

  • Page 32: Video Part-1

    3. VIDEO PART-1 3-18...

  • Page 33: Video Part-2

    4. VIDEO PART-2 3-19...

  • Page 34: Video Part-3

    5. VIDEO PART-3 3-20...

  • Page 35: Video Part-4

    6. VIDEO PART-4 3-21...

  • Page 36: Audio Part-1

    7. AUDIO PART-1 AI_DATA AI_CLK AI_LRCLK 3-22...

  • Page 37: Audio Part-2

    8. AUDIO PART-2 AUD_LINK_BCLK AUD_LINK_RST AUD_LINK_SDIN AUD_LINK_SYNC 3-23...

  • Page 38: Audio Part-3

    9. AUDIO PART-3 AUDIO_L SPDIF 3-24...

  • Page 39: Ethernet Part

    10. ETHERNET PART TXD+ 25MHZ TXD- RXIN+ RXIN- 3-25...

  • Page 40: Super Io & Front Interface Part

    11. SUPER IO & FRONT INTERFACE PART FLD_RXD FLD_CLK CLK_LPC_33MHZ 3-26...

  • Page 41: Block Diagrams

    BLOCK DIAGRAMS 1. TOTAL BLOCK DIAGRAM PCI Slot 3-27...

  • Page 42: Wring Block Diagram

    2. WRING BLOCK DIAGRAM FRONT GPIO FRONT_GPIO FLD GPIO START_ON SIO IRTX2 FLD_RXD FLD_TXD FLD_CLK V_5_P0_ST 3-28...

  • Page 43: Power Block Diagram

    3. POWER BLOCK DIAGRAM 3-29...

  • Page 44: Signal Path Block Diagram

    4. SIGNAL PATH BLOCK DIAGRAM 3-30...

  • Page 45: Block Diagram

    5. BLOCK DIAGRAM 3-31...

  • Page 47: Circuit Diagrams

    2. Voltages are DC-measured with a digital voltmeter MODIFIED OR ALTERED WITHOUT PERMISSION IMPLEMENTATION OF THE LATEST SAFETY AND during Play mode. FROM THE LG ELECTRONICS CORPORATION. ALL PERFORMANCE IMPROVEMENT CHANGES INTO COMPONENTS SHOULD BE REPLACED ONLY WITH THE SET IS NOT DELAYED UNTIL THE NEW SERVICE TYPES IDENTICAL TO THOSE IN THE ORIGINAL CIR- LITERATURE IS PRINTED.

  • Page 48: Power Circuit Diagram

    2. POWER CIRCUIT DIAGRAM 3-34 3-35...

  • Page 49: Cpu Circuit Diagram

    3. CPU CIRCUIT DIAGRAM 3-36 3-37...

  • Page 50: Gmch Circuit Diagram

    4. GMCH CIRCUIT DIAGRAM 3-38 3-39...

  • Page 51: Ich4 Circuit Diagram

    5. ICH4 CIRCUIT DIAGRAM 3-40 3-41...

  • Page 52: Clock & Lpc Circuit Diagram

    6. CLOCK & LPC CIRCUIT DIAGRAM 3-42 3-43...

  • Page 53: Memory/Ide Circuit Diagram

    7. MEMORY/IDE CIRCUIT DIAGRAM 3-44 3-45...

  • Page 54: Lan/Usb/Modem Circuit Diagram

    8. LAN/USB/MODEM CIRCUIT DIAGRAM 3-46 3-47...

  • Page 55: Video Converter & Ac97 Codec Circuit Diagram

    9. VIDEO CONVERTER & AC97 CODEC CIRCUIT DIAGRAM 3-48 3-49...

  • Page 56: Mpeg-Ii Encoder & Av Decoder (Cx23418) Circuit Diagram

    10. MPEG-II ENCODER & AV DECODER (CX23418) CIRCUIT DIAGRAM 3-50 3-51...

  • Page 57: Tuner & External Av Input Circuit Diagram

    11. TUNER & EXTERNAL AV INPUT CIRCUIT DIAGRAM 3-52 3-53...

  • Page 58: Audio/Video Input Interface Circuit Diagram

    12. AUDIO/VIDEO INPUT INTERFACE CIRCUIT DIAGRAM 3-54 3-55...

  • Page 59: Miscellanedus Circuit Diagram

    13. MISCELLANEDUS CIRCUIT DIAGRAM 3-56 3-57...

  • Page 60: External I/F Circuit Diagram

    14. EXTERNAL I/F CIRCUIT DIAGRAM 3-58 3-59...

  • Page 61: Printed Circuit Diagrams

    PRINTED CIRCUIT DIAGRAMS 1. MAIN PRINTED CIRCUIT DIAGRAMS(TOP VIEW) 3-60 3-61...

  • Page 62: Main Printed Circuit Diagrams(Bottom View)

    2. MAIN PRINTED CIRCUIT DIAGRAMS(BOTTOM VIEW) 3-62 3-63...

  • Page 63: Key Printed Circuit Diagram

    3. KEY PRINTED CIRCUIT DIAGRAM (TOP VIEW) (BOTTOM VIEW) 4. TIMER PRINTED CIRCUIT DIAGRAM (TOP VIEW) (BOTTOM VIEW) 3-64 3-65...

  • Page 64: Power Printed Circuit Diagram

    5. POWER PRINTED CIRCUIT DIAGRAM 3-66 3-67...
  • Page 65 SECTION 4 RL-05 LOADER PART CONTENTS ELECTRICAL TROUBLESHOOTING GUIDE ......................4-2 WAVEFORMS .................................4-16 1. POWER & RESET SIGNAL ............................4-16 2. MAIN CLOCK1 FOR IC202 (16.9MHZ)........................4-16 3. SDRAM CLOCK .................................4-17 4. TRAY OPEN/CLOSE SIGNAL 1..........................4-17 5. TRAY OPEN/CLOSE SIGNAL 2..........................4-18 6. SLED MOVE SIGNAL 1 .............................4-18 7.

  • Page 66: Electrical Troubleshooting Guide

    ELECTRICAL TROUBLESHOOTING GUIDE Reset or Power Check. Check it after connecting the power cable only for NO Reset or Power ON. •Check the power(5V,12V)short. Are the pin 4, 1 of LCN202 •Check the power cable. +12V, +5V respectively after the power •Repair the power part.
  • Page 67 System Check Load tray without inserting disc. Does tray operate normally? Go to “Tray operating is abnormal” Does pick-up move to inside? Go to “Sled operating is abnormal” Go to “Focus Actuator operating is Does pick-up lens move abnormal” up/down? Go to “Laser operating is abnormal”...
  • Page 68 Tray operating is abnormal Tray open doesn ’t work. Is the Input voltage 0V at LIC301 •Check the connection of LIC301 pin 106. pin 60 when push the •Replace the EJECT SW. EJECT SW? Is there tray •Replace the LIC502. control signal input? •Check the communication line between (LIC502 pin46)
  • Page 69 Sled operating is abnormal Is there sled control signal output? Replace the LIC301 (LIC301 pin 126, 127) Is there •Replace the IC102. sled drive signal input? •Check the LR532, LR533. (LIC502 pin 29, 30) Is there Is DRV-CTRL1 sled drive voltage output? signal “H”? (LIC502 pin 37~40) (LIC502 pin35)
  • Page 70 Spindle operating is abnormal Is there Is there spindle control DSP spindle control signal input? output(LIC301 pin 123)? (LIC502 pin 26) •Replace the LIC301 Replace the LIC301. Is there Is there spindle drive voltage output? SFG signal input? (LIC502 pin 11,13,16) (LIC301 pin 53) Replace the Spindle Motor •Replace the LIC102.
  • Page 71 Focus Servo is unstable Is FE signal output normal in Focusing Replace the LIC201. Up/Down? (LIC201 pin 87) Is FDRV signal output normal in Focusing •Check the R534. Up/Down? •Replace the LIC201. (LIC301 pin 124) Go to “Focus Actuator operating is abnormal” Focus Actuator operating is abnormal.
  • Page 72 Track Servo is unstable Is TE signal Is pick-up output normal in focusing (E, F, G, H)output normal? ON and tracking OFF? (LCN201 pin 5, 8, 9, 12) (LIC201 pin 85) Replace the LIC201. •Check the pick-up FFC. •Replace the pick-up. •After replacing Perform 5.
  • Page 73 Recognition Fail Case 1: CD-ROM Fail Check pick-up read power Go to “LD CHECK”. is 0.9~1.3mW? Does focus servo Go to “Focus Servo is unstable”. operate normally? Check pick-up •Check the pick-up FFC and LCN201. RF signal LIC201(Pin113) is •Replace the pick-up unit. 500~1000mVpp? Check RFEQO waveform Replace the LIC201...
  • Page 74 Recognition Fail Case 2:DVD Fail Check pick-up read power Go to “LD CHECK”. was 0.9~1.1mW? Is LIC201 pin 51(CD/DVD) level Replace the LIC201. was about 0V? Is there RF signal at LCN201pin 13,14. Replace the pick-up. Is there RF signal Replace the LIC201 at LIC201 pin 95.
  • Page 75 LD CHECK (Laser operating is abnormal) Perform 6. Optical Power Setting parameter check from‘How to use Test tool’. Execute “C.Laser Power Setup”of Is ALPC parameters “How to use Test Tool” valid? Perform 4. LD Test check from ‘How to use Test tool’. Check reference voltage.
  • Page 76 CD/DVD ? Select Mode: CD, Test and perform Select Mode: DVD, Test and perform Test from 4. LD Test of ‘How to use Test from 4. LD Test of ‘How to use Test tool’ Test tool’ Check the input of CD/DVD. Check the input of CD/DVD.
  • Page 77 Select Mode: DVD, Test and perform Select Mode: DVD, Test and perform Test from 4. LD Test of ‘How to use Test from 4. LD Test of ‘How to use Test tool’ Test tool’ Check the input of CD/DVD. Check the input of CD/DVD. (pin 17 of LCN201 : ‘L’) (pin 17 of LCN201 : ‘L’) Check the input of VWDC.
  • Page 78 In case of writing fail. Normal Case Check the media Check disc label. DVD ±R/RW? Does the disc Remove the dust,fingerprint and have any dust,scratch, if the disc has long width scratch, fingerprint …? change it. Finalized Disc? Eject disc. If DVD ±R disc,use new DVD ±...
  • Page 79 Writing Part Check Load tray with DVD ±R/RW disc. Press the “REC” key. Does writing finish without any error? Is the written file Eject tray. read normally? Go to “LD CHECK”. Is the re-written file read normally? Is SHAPCRE input signal pulse? (LIC01 pin 62) Check and replace the connection of Check and replace LIC201, LIC301.

  • Page 80: Waveforms

    WAVEFORMS 1. POWER & RESET Signal 12 V(LCN302 PIN4) 5V(LCN302 PIN 1) /HRST(LIC303 PIN 3) /SYSRST(LIC303 PIN2) POWER IN 2. Main Clock1 for IC202 (16.9MHz) LX301(LIC301 PIN 2) GND LEVEL 4-16...

  • Page 81: Sdram Clock

    3. SDRAM Clock MCLK(LIC304 PIN 35) 4. TRAY OPEN/CLOSE SIGNAL 1 /EJECT-KEY (LR504) TRAY-CTRL (LIC502 PIN46) TRAY+(LCN504 PIN 3) TRAY-(LCN504 PIN 4) CLOSE OPEN 4-17...

  • Page 82: Tray Open/Close Signal 2

    5. TRAY OPEN/CLOSE SIGNAL 2 /EJECT-KEY(LR504) TRAY-CTRL(LIC502 PIN46) /OPEN-SW(LCN504 PIN 1) /LOAD-SW (LCN504 PIN 2) CLOSE OPEN 6. SLED MOVE SIGNAL 1 SDRV2(LIC502 PIN31) SDRV1(LIC107 PIN29) A+(LCN501PIN 2) A-(LCN1501 PIN 1) ZOOM 4-18...

  • Page 83: Sled Move Signal 2

    7. SLED MOVE SIGNAL 2 SDRV2(LIC502 PIN31) SDRV1(LIC107 PIN29) A+(LCN501PIN 2) A-(LCN1501 PIN 1) 8. FOCUS SEARCH SIGNAL FDRV (LIC502 PIN 5) F+ (LIC502 PIN 52) F- (LIC502 PIN 51) 4-19...

  • Page 84: Laser Turn On Signal

    9. LASER TURN ON SIGNAL F+ (LIC502 PIN 52) LDEN-DVD(LCN201 PIN17) VRDC(LCN201PIN 34) 4-20...

  • Page 85: Disc Type Judgement Waveform (Cd Series)

    10. DISC TYPE JUDGEMENT WAVEFORM (CD SERIES) FDRV(LIC502 PIN 5) FE(LIC201 PIN87) TE(LIC201 PIN85) RF(LIC201PIN 113) 11. DISC TYPE JUDGEMENT WAVEFORM (CD&CD-R) FDRV(LIC502 PIN 5) FE(LIC201 PIN87) TE(LIC201 PIN85) RF(LIC201PIN 113) 4-21...

  • Page 86: Disc Type Judgement Waveform (Cd-Rw)

    12. DISC TYPE JUDGEMENT WAVEFORM (CD-RW) FDRV(LIC502 PIN 5) FE(LIC201 PIN87) TE(LIC201 PIN85) RF(LIC201PIN 113) 13. DISC TYPE JUDGEMENT WAVEFORM (DVD SERIES) FDRV(LIC502 PIN 5) FE(LIC201 PIN87) TE(LIC201 PIN85) RF(LIC201PIN 113) 4-22...

  • Page 87: Disc Type Judgement Waveform (Dvd_Single&R)

    14. DISC TYPE JUDGEMENT WAVEFORM (DVD_SINGLE&R) FDRV(LIC502 PIN 5) FE(LIC201 PIN87) TE(LIC201 PIN85) RF(LIC201PIN 113) 15. DISC TYPE JUDGEMENT WAVEFORM (DVD _DUAL) FDRV(LIC502 PIN 5) FE(LIC201 PIN87) TE(LIC201 PIN85) RF(LIC201PIN 113) 4-23...

  • Page 88: Disc Type Judgement Waveform (Dvdrw)

    16. DISC TYPE JUDGEMENT WAVEFORM (DVDRW) FDRV(LIC502 PIN 5) FE(LIC201 PIN87) TE(LIC201 PIN85) RF(LIC201PIN 113) 17. SPINDLE WAVEFORM1 MDRV (LIC502 PIN 26) REFOUT (LIC502 PIN 42) SFG((LIC502 PIN43) 4-24...

  • Page 89: Spindle Waveform2

    18. SPINDLE WAVEFORM2 U((LIC502 PIN11) V((LIC502 PIN13) W((LIC502 PIN16) SFG(LIC502 PIN43) 19. FOCUS ON SIGNAL(CD) FDRV (LIC301 PIN 124) FE (LIC201 PIN87) TDRV (LIC301 PIN 125) TE (LIC201 PIN85) 4-25...

  • Page 90: Focus On Signal(Dvd)

    20. FOCUS ON SIGNAL(CD) FDRV (LIC301 PIN 124) FE (LIC201 PIN87) TDRV (LIC301 PIN 125) TE (LIC201 PIN85) 21. FOCUS ON SIGNAL(DVD) FDRV (LIC301 PIN 124) FE (LIC201 PIN87) TDRV (LIC301 PIN 125) TE (LIC201 PIN85) 4-26...

  • Page 91: Track Off Signal(Cd)

    22. FOCUS ON SIGNAL (DVD) FDRV (LIC301 PIN 124) FE (LIC201 PIN87) TDRV (LIC301 PIN 125) TE (LIC201 PIN85) 23. TRACK OFF SIGNAL(CD) TE (LIC106 PIN85) TZC(LIC106 PIN74) MIRRBCA(LIC106 PIN77) 4-27...

  • Page 92: Track Off Signal(Dvd)

    24. TRACK OFF SIGNAL(DVD) TE (LIC106 PIN85) TZC(LIC106 PIN74) MIRRBCA(LIC106 PIN77) 25. Tilt Driver signal(Disc reading) TILTDRV(LIC502 PIN47) TILT+(LIC502 PIN50) TILT-(LIC502 PIN49) 4-28...

  • Page 93: Rf Waveform(Dvd)

    26. RF WAVEFORM(DVD) RFP(LIC201 PIN2) RFO(LIC201PIN 113) RFI(LIC201 PIN 95) 27. RF WAVEFORM(CD) RFP(LIC201 PIN2) RFO(LIC201PIN 113) RFI(LIC201 PIN 95) 4-29...

  • Page 94: Wobble(Dvd-R/Rw)_Reading

    28. WOBBLE(DVD-R/RW)_READING AWOBBLE(LIC201 PIN81) LPP/HEAD(LIC201 PIN 73) 29. WOBBLE(DVD+R/RW)_READING& WRITING => X1 SPEED AWOBBLE(LIC201 PIN81) LPP/HEAD(LIC201PIN 73) 4-30...

  • Page 95: Ld Enable(Dvd)

    30. LD Enable(DVD) CD/DVD(LCN201 PIN 17) LDEN(LCN PIN 38) 31. LD Enable(CD) CD/DVD(LCN201 PIN 17) LDEN(LCN102 PIN 38) 4-31...

  • Page 96: Laser Power(Reading)_Dvd+Rw

    32. Laser Power(reading) _ DVD+RW VRDC(LCN201 PIN 34) VWDC(LCN201 PIN 36) VWDC2(LCN201 PIN 35) OPCTRG(LIC301 PIN 151) 33. Laser Power(Erase) _ DVD+RW VRDC(LCN201 PIN 34) VWDC(LCN201 PIN 36) VWDC2(LCN201 PIN 35) OPCTRG(LIC301 PIN 151) 4-32...

  • Page 97: Laser Power(Writing)_Initial State

    34. Laser Power(Writing) _ initial state VRDC(LCN201 PIN 34) VWDC(LCN201 PIN 36) VWDC2(LCN102 PIN 35) OPCTRG(LIC301 PIN 151) 35.Laser Power(Writing)_Processing VRDC(LCN201 PIN 34) VWDC(LCN201 PIN 36) VWDC2(LCN201 PIN 35) 4-33...

  • Page 98: The Difference Of Dvd-R/Rw, Dvd+R/Rw Discs And Dvd-Rom

    The difference of DVD-R/RW, DVD+R/RW discs and DVD-ROM 1. Recording Layer • DVD-ROM (Read Only Disc) 0.4 um • DVD+R/RW Disc 4-34...

  • Page 99: Disc Specification

    2. Disc Specification 3. Disc Materials 1) DVD-ROM < Single Layer > < Dual Layer > 4-35...
  • Page 100 2) Recording format using organic dye material ( DVD-R / DVD+R ) The format that records data through the creation of recorded marks by changing the organic dye material with a laser beam. Disc structure Recording principles [ Recording ] Recording is done by changing the organic dye layer and the substrate with a laser When a strong laser is applied to a disc, the temperature of the organic dye material goes up, the dye is decomposed and the substrate changes at the same time.
  • Page 101 3) Recording format using phase-change recording material ( DVD-RW / DVD+RW ) • Data is recorded by changing the recording layer from the amorphous status to the crystalline status, and played back by reading the difference of the reflection coefficient. Amorphous: Non-crystalline.
  • Page 102 To make recordings, it is necessary to modulate the write pulse, which is called “Write Strategy”. There can be many types in Write Strategy. Typically Write Strategy for DVD ±R has NMP(Non Multi-Pulse) type and MP(Multi-Pulse) type. In NMP type each single mark is created by subsequent separated short pulses. In MP type each single mark is created by one continuous pulse.

  • Page 103: Organization Of The Inner Drive Area, Outer Drive Area, Lead-In Zone And Lead-Out Zone

    4. Organization of the Inner Drive Area, Outer Drive Area, Lead-in Zone and Lead-out Zone 1) Layout of DVD-RO M disc Disc Center Diameter 120 mm Diameter 44mm Diameter 33mm Diameter 22mm Diameter 16mm Diameter 15mm Center Clamping 3th transition Inform ation Zone hole Zone...
  • Page 104 3) Layout of DVD+RW disc Disc Center Diameter 120 mm Diameter 44mm Diameter 33mm Diameter 22mm Diameter 16mm Diameter 15mm Center Clamping 3th transition Inform ation Zone hole Zone area 1th transition area 2th transition area area Unrecorded Disc Lead-in Zone Data Zone Lead-out Zone Outer Disc...
  • Page 105 4) Layout of DVD-R/RW disc Disc Center Diameter 120 mm Diameter 44mm Diameter 33mm Diameter 22mm Diameter 16mm Diameter 15mm Center Clamping 3th transition Unrecorded Disc hole Area area 1th transition area 2th transition area area Inform ation Area R-Information Lead-in Lead-out Data Recordable Area...

  • Page 106: Alpc(Automatic Laser Power Control) Circuit

    5. ALPC(Automatic Laser Power Control) Circuit 1) Block Diagram IC 106 ( uPC3330 ) RLDON ‘H’ CN 102 IC 201 SHAPCRE S/H & VRDC VRDC VR DCG & Gain Optical Pick-up VR DC_ HOP -7521T FPDVC uPD63630 FPDVR EF PDIN Write Strategy Write...

  • Page 107: How To Use Test Tool

    How to use test tool 1. ALPC Measurement System Configuration In order to measure and adjust DVD RW optical power, The following measurement equipments are needed. Compulsory equipment ➀ Optical Power meter & Sensor (ADVANTEST, TQ8210/Q82017A or equivalent ➁ Personal Computer (Pentium 3, 500MHz Above, , RAM:64M Above, Win98 Above) ➂...
  • Page 108 2. ALPC Program Configuration ALPC Program consists of total 4 files. ALPC.exe LgBada.dll modelnm.txt WNASPI32.DLL These 4 files should be located in one directory. ALPC.exe is a program execution file. modelmn.txt is a configuration file. Determine how to connect The following contents are included when you open "modelnm.txt" file. The following contents are included when you open LGE connect=0 connect=0 is the item which you can determine whether you use Serial or ATAPI.
  • Page 109 3. Running ALPC Program When running ALPC.exe file, the following screen appears. CD/DVD Selection ALPC Setup or LD Display what is selected Test Selection in modelnm.txt Result output window Laser Power Setup window Laser Read Laser Write Laser off When Laser EEPROM Used When inputting Power On...
  • Page 110 4 LD Test * Test DVD LD * Test DVD CD ➀ Select DVD mode ➀ Select CD mode ➁ Select Test mode ➁ Select Test mode ➂ Click ➂ Click Test Test Section VRDC VR_FPD VWDC1 VW_FPD VW2-1 VW2-2 2.4±0.08 0.53±0.22 0.02±0.01...
  • Page 111 5. Optical Power Setting When replacing Travers ass’y including Pick-up or Loader PCB, Optical Power Setting should be performed for Pick-up and Loading PCB’s matching. ➀ DVD LD optocal Power Setting • Select DVD and Setup mode • Push . (Read Power On. Strong Red light can be seen from pick up optical lens.) •...
  • Page 112 6. Optical Power Setting Parameter Check Use when defective happens even though LD test result is normal. When defective can be found but power test result is OK, You need to check current settings whether they are proper or not. In this case, Pressing will display ALPC Parameter Info window and show current optical power settings recorded in EEPROM(IC302).
  • Page 113 [VALID ALPC Parameters] <CD> <DVD> 1) CD-R READ Reference DAC : 70 ~ 100 1) DVD-R READ Reference DAC : 42 ~ 107 2) CD-RW READ Reference DAC : 70 ~ 100 2) DVD-RW READ Reference DAC : 42 ~ 107 3) VWDC1 : 35 ~ 65 4) VWDC1 Offset...
  • Page 114 Appendix. How to measure optical power Optical power measurement is measuring actual optical power coming out from an object lens with LD turned on. thus, In order to measure optical power, LD should to be turned on and environment need to be dark enough. If necessary, Cover the top side of the sensor with black paper or hand when measuring.

  • Page 115: Block Diagrams

    BLOCK DIAGRAMS 1. OVERALL BLOCK DIAGRAM 4-51...

  • Page 116: Dsp Block Diagram

    2. DSP BLOCK DIAGRAM L.P.F 4-52...

  • Page 117: Μ-Com Block Diagram

    3. µ-COM BLOCK DIAGRAM 4-53...

  • Page 118: Rf Block Diagram

    4. RF BLOCK DIAGRAM 4-54...

  • Page 119: Circuit Diagrams

    CIRCUIT DIAGRAMS 1. RF CIRCUIT DIAGRAM 4-55 4-56...

  • Page 120: Dsp Circuit Diagram

    2. DSP CIRCUIT DIAGRAM 4-57 4-58...

  • Page 121: Μ-Com Circuit Diagram

    3. µ-COM CIRCUIT DIAGRAM 4-59 4-60...

  • Page 122: Circuit Voltage Chart

    CIRCUIT VOLTAGE CHART MODE MODE MODE MODE MODE MODE MODE MODE MODE MODE MODE STATE STATE STATE STATE STATE STATE STATE STATE STATE STATE STATE PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO.

  • Page 123: Printed Circuit Diagrams

    PRINTED CIRCUIT DIAGRAMS 1. MAIN P.C.BOARD LOCATION GUIDE 4-63 4-64...
  • Page 124 2. MAIN P.C.BOARD LOCATION GUIDE 4-65 4-66...
  • Page 125 6850R-UAA04 CABLE,USB USB MALE TO USB FEMALE HYOSEUN 6850R-ZAE07 CABLE,COAXIAL FREE OF HAZARDOUS TLELPHONE CA 6711R1N183A REMOTE CONTROLLER ASSEMBLY MS-PVR RV7920M LG CONNECT 6631R-Y039A CONNECTOR ASSEMBLY RJ11 6P4C 6P 160M/M PHONE SPLI *** PWB(PCB)ASSEMBLY SMPS *** 6871RP0801A PWB(PCB) ASSEMBLY,POWER(MULTI) RV7920 WINPVR ORIENTECH ORTP-9...
  • Page 126 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS AR501 0RRZVTA0018 RESISTOR,DRAWING 47 OHM 1 / 16 W 1608*4 5% R/TP AR502 0RRZVTA0018 RESISTOR,DRAWING 47 OHM 1 / 16 W 1608*4 5% R/TP AR503 0RRZVTA0018 RESISTOR,DRAWING 47 OHM 1 / 16 W 1608*4 5% R/TP AR504 0RRZVTA0018 RESISTOR,DRAWING...
  • Page 127 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C274 0CH1226D944 CAPACITOR,FIXED CERAMIC(TEMP.C 22UF 10V 80%,-20% Y5V(F) 3216 C275 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C277 0CH1226D944 CAPACITOR,FIXED CERAMIC(TEMP.C 22UF 10V 80%,-20% Y5V(F) 3216 C280 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T C281 0CH1103K512...
  • Page 128 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C607 0CZZR00017A CAPACITOR,DRAWING SAMWHA,SAMYOUNG E-CAP 100UF 6. C615 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C619 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C620 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T C626 0CK106DD64A CAPACITOR,FIXED CERAMIC(HIGH D...
  • Page 129 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C834 0CH4221K412 CAPACITOR,FIXED CERAMIC(HIGH D 220PF 50V 5% NP0 1608 R/TP C843 0CH8106F611 CAPACITOR,FIXED ELECTROLYTIC 10UF 16V 20% 85STD (CYL) R/TP C844 0CH8106F611 CAPACITOR,FIXED ELECTROLYTIC 10UF 16V 20% 85STD (CYL) R/TP C845 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C...
  • Page 130 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS D308 0DTON00028A DIODE,DETACTOR SD05T1G ON SEMI R/TP SOD323 35 D309 0DTON00028A DIODE,DETACTOR SD05T1G ON SEMI R/TP SOD323 35 D507 0DTON00028A DIODE,DETACTOR SD05T1G ON SEMI R/TP SOD323 35 D508 0DTON00028A DIODE,DETACTOR SD05T1G ON SEMI R/TP SOD323 35 D509 0DTON00028A DIODE,DETACTOR...
  • Page 131 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS FL810 6200J000097 FILTER(CIRC),EMC BNP100 NIIGATA R/TP 25V 200MA FL811 6200J000097 FILTER(CIRC),EMC BNP100 NIIGATA R/TP 25V 200MA IC100 0IMCRIN171A IC,MICRO CONTROLLER LV733 INTEL 479PIN FCBGA TRAY IC103 0ILNRIN002A IC,LINEAR 82830M INTEL 625PIN PBGA TRAY IC104 0ILNRIN001A IC,LINEAR...
  • Page 132 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS Q505 0TR830009BA TRANSISTOR,BIPOLARS BSS83 TP PHILIPS NON N-CHANNEL Q506 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C Q507 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C Q508 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C Q509 0TR150409AC TRANSISTOR,BIPOLARS...
  • Page 133 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R153 0RH1001C422 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 1.00% D R154 0RJ0332C477 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1/16 W 1% 1608 R/TP R155 0RJ0332C477 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1/16 W 1% 1608 R/TP R156 0RH0000C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 134 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R246 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R247 0RH8201C422 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 1.00% D R248 0RH8201C422 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 1.00% D R249 0RH8201C422 RESISTOR,METAL GLAZED(CHIP)
  • Page 135 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R377 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R378 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R379 0RH0102C422 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 1.00% D R380 0RH0102C422 RESISTOR,METAL GLAZED(CHIP)
  • Page 136 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R523 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D R524 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D R528 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R529 0RH1001C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 137 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R696 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R697 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R698 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R699 0RH1001C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 138 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R793 0RJ3300C477 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1/16 W 1% 1608 R/TP R794 0RJ3300C477 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1/16 W 1% 1608 R/TP R796 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D R801 0RH0000C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 139 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS B507 6200HJC106A FILTER(CIRC),EMC HH-1M2012-121JT CERATECH TP 2 B509 6200HJC106A FILTER(CIRC),EMC HH-1M2012-121JT CERATECH TP 2 B517 0LCMU00020A INDUCTOR,CHIP BLM18BA470SN1D, 100MHZ 47OHM M C100 0CK105CF94A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 16V 80%,-20% R/TP F(Y C101 0CK105CF94A CAPACITOR,FIXED CERAMIC(HIGH D...
  • Page 140 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C203 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C208 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C209 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C210 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T C218 0CK105CF94A...
  • Page 141 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C343 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C344 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C345 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C346 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C347 0CH1104H942...
  • Page 142 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C532 0CH1821K562 CAPACITOR,FIXED CERAMIC(TEMP.C 820PF 1608 50V 10% X7R R/TP C533 0CH1821K562 CAPACITOR,FIXED CERAMIC(TEMP.C 820PF 1608 50V 10% X7R R/TP C537 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C538 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C542...
  • Page 143 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C649 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C651 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C662 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C663 0CK106DD64A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 2012 10V 20% R/TP F(Y5V) C664 0CH1104H942...
  • Page 144 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C852 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C900 0CK105CF94A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 16V 80%,-20% R/TP F(Y C901 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C903 0CK105CF94A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 16V 80%,-20% R/TP F(Y C906...
  • Page 145 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS Q904 0TR387509AB TRANSISTOR,BIPOLARS KTC3875S-Y-T1(ALY) KEC TP TO9 Q909 0TR102009AA TRANSISTOR,BIPOLARS CHIP KRC102S-T1(NB)10-10 TP KE Q910 0TR387509AB TRANSISTOR,BIPOLARS KTC3875S-Y-T1(ALY) KEC TP TO9 Q911 0TFON80004B TRANSISTOR,FETS NTR4501NT1 ON SEMI(MOTOROLA) R Q912 0TR387509AB TRANSISTOR,BIPOLARS KTC3875S-Y-T1(ALY) KEC TP TO9 Q913 0TFON80004B...
  • Page 146 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R305 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R306 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R307 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R322 0RJ0332C477 RESISTOR,METAL GLAZED(CHIP)
  • Page 147 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R561 0RH0242C422 RESISTOR,METAL GLAZED(CHIP) 24 OHM 1 / 16 W 1608 1.00% D R570 0RH0242C422 RESISTOR,METAL GLAZED(CHIP) 24 OHM 1 / 16 W 1608 1.00% D R572 0RH0242C422 RESISTOR,METAL GLAZED(CHIP) 24 OHM 1 / 16 W 1608 1.00% D R574 0RH0242C422 RESISTOR,METAL GLAZED(CHIP)
  • Page 148 J504 6612K00003B JACK,FIBER OPTIC PLT131/T5/12(12Mbps) EVERLIGHT J800 6630C00025A CONNECTOR (CIRC),CARD BUS JE920-A2T-2T JAE EUN 3P SPECIA J804 561-715J CONNECTOR (CIRC),WAFER GIL-G-10P-S3T2-E LG CABLE 10PI J807 6612F00048A JACK,PHONE KJA-PH-3-0051 KSD DUAL TYPE(3. J900 6630R-SY093 CONNECTOR(CIRC),DRAWING JE912-A1T-20 JAE EUN 20PIN J901 561-661B...
  • Page 149 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS *** DECK ASSEMBLY,VIDEO *** 6721R-N015G DECK ASSEMBLY,VIDEO DVD RL-05S, MD(DR-05 SLIM)+MOD 1041 3300R-D061A PLATE GND-RIGHT(DR-05 SLIM) PRESS 1042 3300R-D062A PLATE GND-LEFT(DR-05 SLIM) PRESS 1434 1SZZR-0012A SCREW,DRAWING B-TITE A000 6721R-D015A DECK ASSEMBLY,VIDEO DVD DR-05 SLIM 1434 1SZZR-0012A...
  • Page 150 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LAR308 0RRZVTA001F RESISTOR,DRAWING 33 OHM 1 / 16 W 3216 5% R/TP 8 LAR309 0RRZVTA001F RESISTOR,DRAWING 33 OHM 1 / 16 W 3216 5% R/TP 8 LAR310 0RRZVTA001V RESISTOR,DRAWING 82 OHM 1 / 16 W 3216 5% R/TP 8 LC201 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C...
  • Page 151 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LC268 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608 LC270 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T LC271 0CH1182K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1800PF 50V 10% X7R(X) 1608 R/T LC272 0CH1474K562 CAPACITOR,FIXED CERAMIC(TEMP.C 470000PF 1608 50V 10% - R/TP LC279...
  • Page 152 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LIC202 0ISTLKE014A IC,STANDARD LOGIC KIC7W08FK KEC 8PIN-US8 R/TP DU LIC203 0IPMGTR057A IC,POWER MANAGEMENT XC6206P212MR TOREX SEMICONDUCT LIC204 0ILNRJR014B IC,LINEAR NJM13404AV JRC SIP-8 R/TP SING LIC205 0IPRPFA011A IC,PERIPHERALS NC7SB3157 FAIRCHILD 6PIN,SC70 LIC301 0ILNRNE018A IC,LINEAR UPD63641 NEC 216PIN,LQFP TRAY...
  • Page 153 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LR305 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D LR306 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D LR308 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D LR309 0RH0000C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 154 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LR504 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D LR526 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D LR528 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D LR532 0RH2201C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 155 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LC503 0CK226FF94A CAPACITOR,FIXED CERAMIC(HIGH D 22UF 3225 16V 80%,-20% F(Y5V) LC504 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608 LC505 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608 LC509 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608 LC510 0CK106DD64A...
  • Page 156 PANEL ASSEMBLY,FRONT SETTOP BOX RV7922M AA1ULL MS-D 6871R-9960A PWB(PCB) ASSEMBLY,TOTAL RV7920M MS DVR FRONT PWB ASSY CN100 561-716J CONNECTOR (CIRC),WAFER GIL-G-10P-S3L2-E LG CABLE 10PI CN101 561-031D CONNECTOR (CIRC),WAFER 00 8283 0511 00 000+ KYCERA EL CN103 561-036B CONNECTOR (CIRC),WAFER MA V 8283-0312 WH ELCO...
  • Page 157 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C104 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5 C105 0CH1330K412 CAPACITOR,FIXED CERAMIC(TEMP.C 33PF 1608 50V 5% X7R R/TP C106 0CE1063F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRE,SE 16V 20% FM5 TP 5 C107 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC...
  • Page 158 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS SW104 556-219B SWITCH,TACT THV10910G TACT DC 12 V 5-0 A V SW105 556-219B SWITCH,TACT THV10910G TACT DC 12 V 5-0 A V X101 6202R-BJ01A RESONATOR,CRYSTAL HC-49/S SUNNY 5.0000MHZ 30PPM CN104 561-036B CONNECTOR (CIRC),WAFER MA V 8283-0312 WH ELCO LED105...
  • Page 159 6850R-UAA04 CABLE,USB USB MALE TO USB FEMALE HYOSEUN 6850R-ZAE07 CABLE,COAXIAL FREE OF HAZARDOUS TLELPHONE CA 6711R1N183A REMOTE CONTROLLER ASSEMBLY MS-PVR RV7920M LG CONNECT 6631R-Y039A CONNECTOR ASSEMBLY RJ11 6P4C 6P 160M/M PHONE SPLI *** PWB(PCB)ASSEMBLY SMPS *** 6871RP0801A PWB(PCB) ASSEMBLY,POWER(MULTI) RV7920 WINPVR ORIENTECH ORTP-9...
  • Page 160 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS AR501 0RRZVTA0018 RESISTOR,DRAWING 47 OHM 1 / 16 W 1608*4 5% R/TP AR502 0RRZVTA0018 RESISTOR,DRAWING 47 OHM 1 / 16 W 1608*4 5% R/TP AR503 0RRZVTA0018 RESISTOR,DRAWING 47 OHM 1 / 16 W 1608*4 5% R/TP AR504 0RRZVTA0018 RESISTOR,DRAWING...
  • Page 161 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C274 0CH1226D944 CAPACITOR,FIXED CERAMIC(TEMP.C 22UF 10V 80%,-20% Y5V(F) 3216 C275 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C277 0CH1226D944 CAPACITOR,FIXED CERAMIC(TEMP.C 22UF 10V 80%,-20% Y5V(F) 3216 C280 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T C281 0CH1103K512...
  • Page 162 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C607 0CZZR00017A CAPACITOR,DRAWING SAMWHA,SAMYOUNG E-CAP 100UF 6. C615 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C619 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C620 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T C626 0CK106DD64A CAPACITOR,FIXED CERAMIC(HIGH D...
  • Page 163 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C834 0CH4221K412 CAPACITOR,FIXED CERAMIC(HIGH D 220PF 50V 5% NP0 1608 R/TP C843 0CH8106F611 CAPACITOR,FIXED ELECTROLYTIC 10UF 16V 20% 85STD (CYL) R/TP C844 0CH8106F611 CAPACITOR,FIXED ELECTROLYTIC 10UF 16V 20% 85STD (CYL) R/TP C845 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C...
  • Page 164 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS D308 0DTON00028A DIODE,DETACTOR SD05T1G ON SEMI R/TP SOD323 35 D309 0DTON00028A DIODE,DETACTOR SD05T1G ON SEMI R/TP SOD323 35 D507 0DTON00028A DIODE,DETACTOR SD05T1G ON SEMI R/TP SOD323 35 D508 0DTON00028A DIODE,DETACTOR SD05T1G ON SEMI R/TP SOD323 35 D509 0DTON00028A DIODE,DETACTOR...
  • Page 165 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS FL810 6200J000097 FILTER(CIRC),EMC BNP100 NIIGATA R/TP 25V 200MA FL811 6200J000097 FILTER(CIRC),EMC BNP100 NIIGATA R/TP 25V 200MA IC100 0IMCRIN171A IC,MICRO CONTROLLER LV733 INTEL 479PIN FCBGA TRAY IC103 0ILNRIN002A IC,LINEAR 82830M INTEL 625PIN PBGA TRAY IC104 0ILNRIN001A IC,LINEAR...
  • Page 166 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS Q505 0TR830009BA TRANSISTOR,BIPOLARS BSS83 TP PHILIPS NON N-CHANNEL Q506 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C Q507 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C Q508 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C Q509 0TR150409AC TRANSISTOR,BIPOLARS...
  • Page 167 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R153 0RH1001C422 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 1.00% D R154 0RJ0332C477 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1/16 W 1% 1608 R/TP R155 0RJ0332C477 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1/16 W 1% 1608 R/TP R156 0RH0000C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 168 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R246 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R247 0RH8201C422 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 1.00% D R248 0RH8201C422 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 1.00% D R249 0RH8201C422 RESISTOR,METAL GLAZED(CHIP)
  • Page 169 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R377 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R378 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R379 0RH0102C422 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 1.00% D R380 0RH0102C422 RESISTOR,METAL GLAZED(CHIP)
  • Page 170 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R523 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D R524 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D R528 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R529 0RH1001C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 171 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R696 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R697 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R698 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R699 0RH1001C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 172 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R793 0RJ3300C477 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1/16 W 1% 1608 R/TP R794 0RJ3300C477 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1/16 W 1% 1608 R/TP R796 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D R801 0RH0000C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 173 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS B507 6200HJC106A FILTER(CIRC),EMC HH-1M2012-121JT CERATECH TP 2 B509 6200HJC106A FILTER(CIRC),EMC HH-1M2012-121JT CERATECH TP 2 B517 0LCMU00020A INDUCTOR,CHIP BLM18BA470SN1D, 100MHZ 47OHM M C100 0CK105CF94A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 16V 80%,-20% R/TP F(Y C101 0CK105CF94A CAPACITOR,FIXED CERAMIC(HIGH D...
  • Page 174 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C203 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C208 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C209 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C210 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T C218 0CK105CF94A...
  • Page 175 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C343 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C344 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C345 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C346 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C347 0CH1104H942...
  • Page 176 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C532 0CH1821K562 CAPACITOR,FIXED CERAMIC(TEMP.C 820PF 1608 50V 10% X7R R/TP C533 0CH1821K562 CAPACITOR,FIXED CERAMIC(TEMP.C 820PF 1608 50V 10% X7R R/TP C537 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C538 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C542...
  • Page 177 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C649 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C651 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C662 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C663 0CK106DD64A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 2012 10V 20% R/TP F(Y5V) C664 0CH1104H942...
  • Page 178 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C852 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C900 0CK105CF94A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 16V 80%,-20% R/TP F(Y C901 0CH1104H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 25V 80%,-20% Y5V(F) 1608 C903 0CK105CF94A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 16V 80%,-20% R/TP F(Y C906...
  • Page 179 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS Q904 0TR387509AB TRANSISTOR,BIPOLARS KTC3875S-Y-T1(ALY) KEC TP TO9 Q909 0TR102009AA TRANSISTOR,BIPOLARS CHIP KRC102S-T1(NB)10-10 TP KE Q910 0TR387509AB TRANSISTOR,BIPOLARS KTC3875S-Y-T1(ALY) KEC TP TO9 Q911 0TFON80004B TRANSISTOR,FETS NTR4501NT1 ON SEMI(MOTOROLA) R Q912 0TR387509AB TRANSISTOR,BIPOLARS KTC3875S-Y-T1(ALY) KEC TP TO9 Q913 0TFON80004B...
  • Page 180 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R305 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R306 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R307 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R322 0RJ0332C477 RESISTOR,METAL GLAZED(CHIP)
  • Page 181 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R561 0RH0242C422 RESISTOR,METAL GLAZED(CHIP) 24 OHM 1 / 16 W 1608 1.00% D R570 0RH0242C422 RESISTOR,METAL GLAZED(CHIP) 24 OHM 1 / 16 W 1608 1.00% D R572 0RH0242C422 RESISTOR,METAL GLAZED(CHIP) 24 OHM 1 / 16 W 1608 1.00% D R574 0RH0242C422 RESISTOR,METAL GLAZED(CHIP)
  • Page 182 J504 6612K00003B JACK,FIBER OPTIC PLT131/T5/12(12Mbps) EVERLIGHT J800 6630C00025A CONNECTOR (CIRC),CARD BUS JE920-A2T-2T JAE EUN 3P SPECIA J804 561-715J CONNECTOR (CIRC),WAFER GIL-G-10P-S3T2-E LG CABLE 10PI J807 6612F00048A JACK,PHONE KJA-PH-3-0051 KSD DUAL TYPE(3. J900 6630R-SY093 CONNECTOR(CIRC),DRAWING JE912-A1T-20 JAE EUN 20PIN J901 561-661B...
  • Page 183 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS *** DECK ASSEMBLY,VIDEO *** 6721R-N015G DECK ASSEMBLY,VIDEO DVD RL-05S, MD(DR-05 SLIM)+MOD 1041 3300R-D061A PLATE GND-RIGHT(DR-05 SLIM) PRESS 1042 3300R-D062A PLATE GND-LEFT(DR-05 SLIM) PRESS 1434 1SZZR-0012A SCREW,DRAWING B-TITE A000 6721R-D015A DECK ASSEMBLY,VIDEO DVD DR-05 SLIM 1434 1SZZR-0012A...
  • Page 184 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LAR308 0RRZVTA001F RESISTOR,DRAWING 33 OHM 1 / 16 W 3216 5% R/TP 8 LAR309 0RRZVTA001F RESISTOR,DRAWING 33 OHM 1 / 16 W 3216 5% R/TP 8 LAR310 0RRZVTA001V RESISTOR,DRAWING 82 OHM 1 / 16 W 3216 5% R/TP 8 LC201 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C...
  • Page 185 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LC268 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608 LC270 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T LC271 0CH1182K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1800PF 50V 10% X7R(X) 1608 R/T LC272 0CH1474K562 CAPACITOR,FIXED CERAMIC(TEMP.C 470000PF 1608 50V 10% - R/TP LC279...
  • Page 186 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LIC202 0ISTLKE014A IC,STANDARD LOGIC KIC7W08FK KEC 8PIN-US8 R/TP DU LIC203 0IPMGTR057A IC,POWER MANAGEMENT XC6206P212MR TOREX SEMICONDUCT LIC204 0ILNRJR014B IC,LINEAR NJM13404AV JRC SIP-8 R/TP SING LIC205 0IPRPFA011A IC,PERIPHERALS NC7SB3157 FAIRCHILD 6PIN,SC70 LIC301 0ILNRNE018A IC,LINEAR UPD63641 NEC 216PIN,LQFP TRAY...
  • Page 187 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LR305 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D LR306 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D LR308 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D LR309 0RH0000C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 188 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LR504 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D LR526 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D LR528 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D LR532 0RH2201C622 RESISTOR,METAL GLAZED(CHIP)
  • Page 189 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS LC503 0CK226FF94A CAPACITOR,FIXED CERAMIC(HIGH D 22UF 3225 16V 80%,-20% F(Y5V) LC504 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608 LC505 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608 LC509 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608 LC510 0CK106DD64A...
  • Page 190 PANEL ASSEMBLY,FRONT SETTOP BOX RV7922M AA1ULL MS-D 6871R-9960A PWB(PCB) ASSEMBLY,TOTAL RV7920M MS DVR FRONT PWB ASSY CN100 561-716J CONNECTOR (CIRC),WAFER GIL-G-10P-S3L2-E LG CABLE 10PI CN101 561-031D CONNECTOR (CIRC),WAFER 00 8283 0511 00 000+ KYCERA EL CN103 561-036B CONNECTOR (CIRC),WAFER MA V 8283-0312 WH ELCO...
  • Page 191 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C104 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5 C105 0CH1330K412 CAPACITOR,FIXED CERAMIC(TEMP.C 33PF 1608 50V 5% X7R R/TP C106 0CE1063F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRE,SE 16V 20% FM5 TP 5 C107 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC...
  • Page 192 S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS SW104 556-219B SWITCH,TACT THV10910G TACT DC 12 V 5-0 A V SW105 556-219B SWITCH,TACT THV10910G TACT DC 12 V 5-0 A V X101 6202R-BJ01A RESONATOR,CRYSTAL HC-49/S SUNNY 5.0000MHZ 30PPM CN104 561-036B CONNECTOR (CIRC),WAFER MA V 8283-0312 WH ELCO LED105...

This manual is also suitable for:

Rv7922m

Table of Contents
