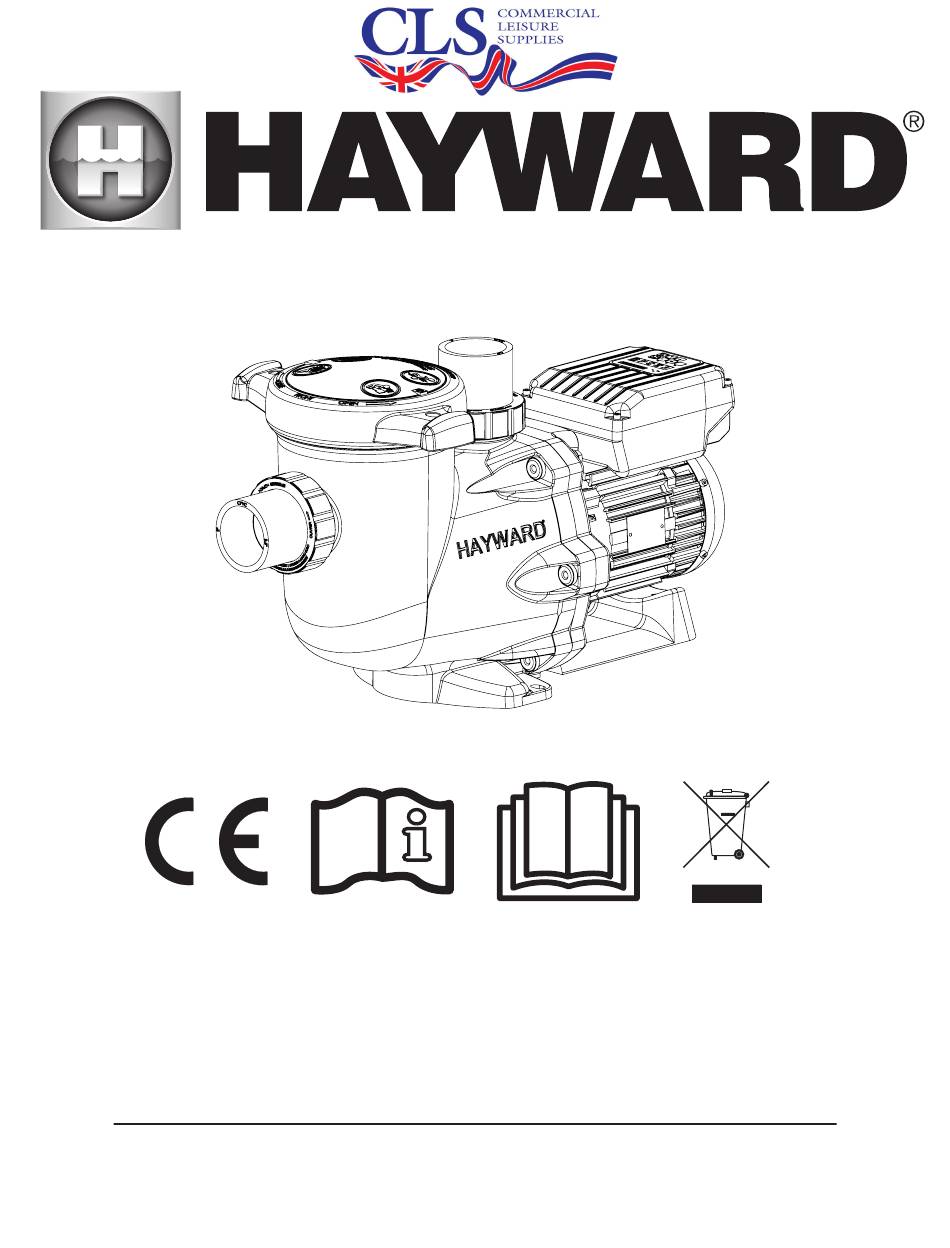

IS27000VSTD - Rev D BOMBA CENTRÍFUGA DE VELOCIDAD VARIABLE MANUAL DEL USUARIO CONSERVE ESTE MANUAL PARA CONSULTARLO POSTERIORMENTE HAYWARD POOL EUROPE - 1070 Allée des Chênes - CS 20054 Saint Vulbas - 01154 Lagnieu Cedex - France...
Page 2
WARNING: Electrical Hazard. Failure to follow • • instructions can result in serious injury or death. FOR USE WITH SWIMMING POOLS • WARNING – Disconnect the pump from the main power supply completely before servicing the pump or filter. • WARNING –...
GENERAL POINTS Congratulations, you have just acquired a Hayward variable speed pump ® Hayward variable speed pumps have a state-of-the-art permanent-magnet motor with AC electronic switching. This ® motor is controlled by a microprocessor combined with a frequency variator providing the following characteristics: •...
Electrical connection: Ensure that the supply voltage required by the motor corresponds to that of the distribution network and that the section and length of the power cable are adapted to the power and current of the pump. All the electrical connections on the pump and any change of power cable must be done by a qualified professional to avoid any danger.
2. PUMP OPERATING MODES 2.1 Manual mode In manual mode, the user can switch the pump on or off manually, according to when the pool is being used. • When you switch the pump on, it launches a priming phase (a). You can adjust this phase (speed and duration, section 4.2).
Page 6
2.5 Connecting external digital inputs CAUTION: Before carrying out any electrical work on the pump, unplug the power cord and wait 5 min. The filtration pump is equipped with a 3-m long 5-wire cord for connecting the 4 digital inputs or potential-free dry contacts (Open/Closed).
Page 7
Operation with the digital inputs The digital inputs can be operated in Manual or Timer mode. They have the highest priority level: they act as MASTER over all the functions currently in use. Only the Run/Stop and DISP/FUNC buttons remain active.
3. OPERATING THE PUMP 3.1 Power on 'Power' lights up and an LCD test runs on screen, 88888 r 1626 ..then the software version is displayed on screen 3.2 Priming phase After switching on the pump, the priming phase starts automatically (this is the same after restarting the pump). Priming phase begins automatically: 3000 •...
4. SETTINGS Note: To adjust the settings the pump must be powered on and in Manual mode (section 2.4), switched off or running (post priming phase). If no button is pressed for 2 minutes, the display will go back to normal (showing the speed or StoP) and the settings will not be saved.
Page 10
4.3 Setting the Skimmer function See section 2.2 for an introduction to this function • Press and hold DISP/FUNC for three seconds ConF All three LEDs will blink and the screen will display "ConF" >3s • Press DISP/FUNC repeatedly until 'SFO.15' is SfO15 displayed on screen: this is the default Skimmer time (in minutes)
Page 11
4.5 Setting the Timer mode The control panel allows you to program multiple sequences (see section 2.3) or Timers t0 to t5, which do not need to follow a chronological order. Unused Timer settings will be deactivated. Timer 't0' can be set to 00:00, 06:00 (by default), 12:00 or 18:00. It cannot be deactivated.
5. DISPLAYING CURRENT SETTINGS Note: The pump must be switched on, either running (post priming phase) or stopped. To display the current settings, press DISP/FUNC. If no button is pressed for 15 seconds thereafter, the display will go back to normal (showing the current speed or Stop).
MAINTENANCE 1. Completely disconnect the pump from the mains power supply before opening the cover and cleaning the strainer. Clean the strainer basket regularly. Do not bang on the basket to clean it. Check the seal on the cover of the strainer and replace it if necessary.
TROUBLESHOOTING (CONTINUED) 3. Check that the pump draws by freeing the suction as close as possible to the pump: a) if the pump does not draw despite being sufficiently full of priming water 1. Tighten the bolts and pipe accessories on the suction side. 2.
Page 15
Puissance Voltage Fréquence Taille et réglage Hauteur manométrique à Pompe Référence moteur Ampérage nominale Nb de phases disjoncteur débit=0 Voltage Frequency Circuit breaker size and Pump Motor reference Nominal power Amperage Manometric head at flow = 0 Number of phases setting Potencia Voltaje Frecuencia...
Page 21
N° SP2715VSTD SPX2700DLS SPX2700Z4 SPX2700M SPX2700AA SPX4000FG SPX2700ZPAK SPX2700Z3 SX220Z2 9 + 12 + 13 SPX2700ESA3 SPX2715C GMX0600F SPX3200Z5 SPX2700G SPX1100SFVSTD SPX1100SFVSTDSB SPX1100PE SP2700UNKIT50 SPX1100ELVSTD Ordre de serrage des boulons - Bolt tightening order - Orden de apriete de los pernos - Ordem de aperto dos parafusos - Anzugsreihenfolge der Bolzen - Volgorde waarin de bouten vastgedraaid moeten worden - Ordine di stringimento bulloni - Ordning för att dra åt bultarna - Spændngsrækkefølge for bolte - Rekkefølge for tiltrekking av boltene - Pulttien kiristysjärjestys - Порядок...
GARANTIE LIMITÉE Les produits HAYWARD sont garantis contre tous défauts de fabrication ou de matières pendant 2 ans, à compter de la date d’achat. Toute demande d’application de la garantie devra s’accompagner de la preuve d’achat, portant mention de la date.
