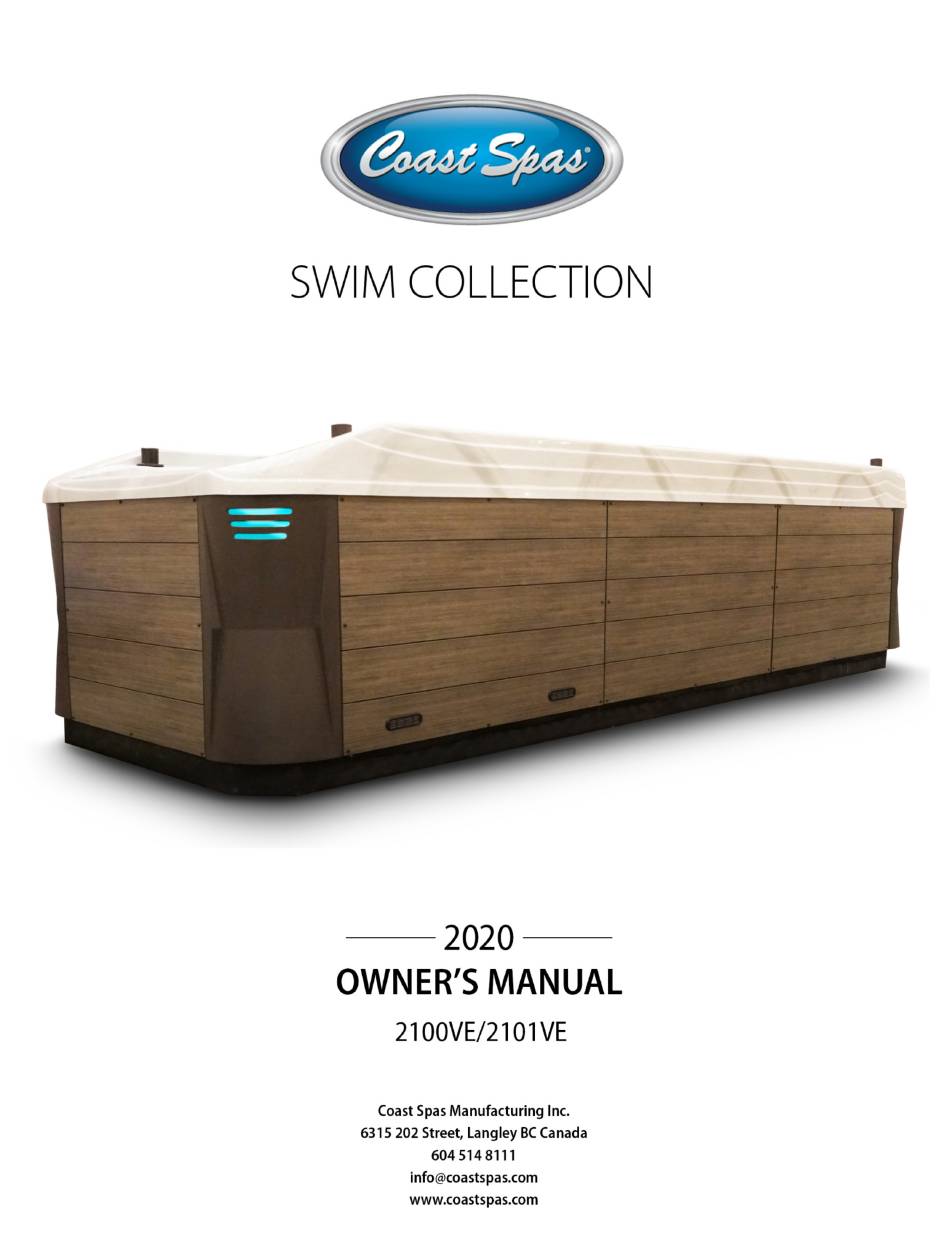

Coast Spas Wellness Spa Series Owner's Manual
  1. Manuals
  2. Brands
  3. Coast Spas Manuals
  4. Hot Tub
  5. Wellness Spa Series
  6. Owner's manual

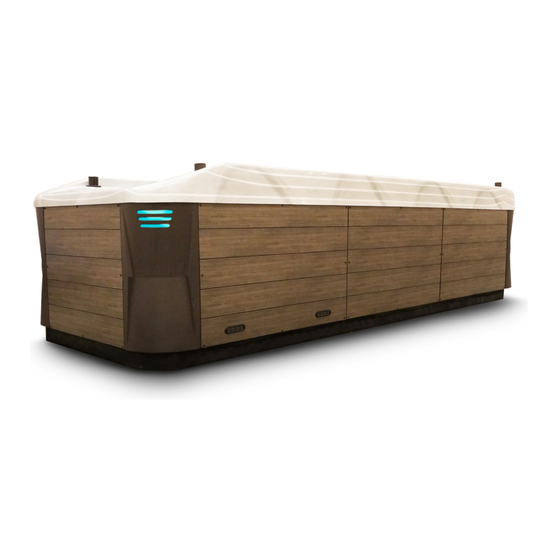

Coast Spas Wellness Spa Series Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wellness Spa Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coast Spas Wellness Spa Series

Summary of Contents for Coast Spas Wellness Spa Series

  • Page 2: Table Of Contents

    29-30 Page Ozone Instructions Page Letter from Coast Spas Manufacturing Inc. Page IMPORTANT GFCI INFORMATION Based on the testing conducted by the supplier of the true variable speed pumps, the Siemens brand GFCI can filter electrical spikes and avoid false trips. The use of a 60 Amp Siemens GFCI is...

  • Page 6: Important Safety Instructions

    OWNER’S MANUAL 2020 IMPORTANT SAFETY INSTRUCTIONS blood pressure, circulatory system problems or diabetes should consult a physician before using a hot tub. READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY DANGER: Risk of Injury. The suction fittings in this hot tub CAUTION: Risk of Hyperthermia: Hyperthermia occurs when are sized to match the specific water flow created by the pump.

  • Page 7: Preparation And Set-Up For Your New Spa

    OWNER’S MANUAL 2020 to hot tub components. Maintain water chemistry in accordance used in conjunction with the operations of the spa. Low voltage with manufacturer’s instructions. damage could result and this is not covered by warranty. NOTE: CAUTION: Use the straps and clip tie downs to secure the All components must be 120V;...
  • Page 8 OWNER’S MANUAL 2020 WINTERIZING YOUR SPA water is the most important spa maintenance you can do for In many areas of the world the temperature may drop below 32° yourself. F (0°C). We recommend the spa is always filled with water and running at normal spa temperatures.

  • Page 9: Filter Maintenance

    OWNER’S MANUAL 2020 FILTER MAINTENANCE The spa filter is one of the most important maintenance items of a hot tub. The filter is there to remove debris from the water and needs to be cleaned on a regular basis. Failure to do so may result in poor performance, poor water clarity and could prevent the spa from heating.

  • Page 10: Water Clarity Troubleshooting

    OWNER’S MANUAL 2020 WATER CLARITY TROUBLESHOOTING PROBLEM PROBABLE CAUSE POTENTIAL SOLUTIONS Water Odor Improper sanitization Add sanitizer   Excessive organics in water Shock spa with sanitizer   pH is too low Adjust pH   Chlorine Odor Chloramines are too high Shock spa with sanitizer ...

  • Page 11: Product & Care Guide

    Please be advised that the Spa Warranty will become void if Coast Spas or any of its selling or servicing agents determines that the spa has been exposed to Hydrogen Peroxide, TriChlor or any substance using it as an ingredient proven to be danger- ous to the Spa.

  • Page 12: Glossary Of Terms

    OWNER’S MANUAL 2020 CABINET CARE VERY IMPORTANT: We recommend a vinyl conditioner for Never spray cabinets with a high-pressure garden hose or pres- your spa cover. Your local dealer carries a wide variety of care sure washer for any reason. This action may induce an electrical and maintenance products.

  • Page 13: Basic Installation And Configuration Guidelines

    OWNER’S MANUAL 2020 DRAIN VALVE: Used in draining of the spa. Normally locat- necting means to be provided at time of installation. Permanently ed in the equipment area. connected power supply. EQUIPMENT ENCLOSURE: An enclosure that houses the Connect only to a circuit protected by a Class A Ground Fault control box, pump(s) and other electrical components.

  • Page 14: Troubleshooting Guide

    OWNER’S MANUAL 2020 TROUBLESHOOTING GUIDE SPA SYSTEM SYMPTOM PROBABLE CAUSE RECOMMENDED ACTION Spa does not work Power is turned off Reset GFCI   No display on the control panel Power is turned off Reset GFCI   Defective topside control Contact your Dealer ...
  • Page 15 OWNER’S MANUAL 2020 HEAT PROBLEMS PROBABLE CAUSE RECOMMENDED ACTION Water will not heat Error message on control panel Refer to the Reference Card for your control   panel to verify the error Spa is in a different Heat Mode Set spa to “Standard Mode”...

  • Page 16: Spa Controls

    OWNER’S MANUAL 2020 Introduction Main Screen - The main screen displays current time, water temperature, and status of the system accessories. Priming Mode - When power is ON, the system will enter priming mode with ‘Priming Mode’ displayed on the panel. In this mode, all devices such as PUMPS, BLOWERS or LIGHT are operable.
  • Page 17 OWNER’S MANUAL 2020 Settings Explained ROTATE VIEW - Rotate the view 180 degrees. The UP and DOWN buttons also swap when rotated. With ROTATE VIEW high- lighted, press MENU to enter ROTATE VIEW setting. Use UP/DOWN to select desired setting and RETURN to confirm the setting and exit.
  • Page 18 OWNER’S MANUAL 2020 2100 5 Pump Topside Quick Reference Card Settings Explained PANEL LOCK - provides a choice to select PANEL for locking all panel buttons except MENU button; use TEMP to lock UP/ DOWN button for changing set temperature; and MENU to lock MENU button (push and hold MENU button more than 15 seconds to unlock the Menu).
  • Page 19 OWNER’S MANUAL 2020 2100 5 Pump Topside Quick Reference Card Error Codes Explained ◄ Error caused when SENSOR 1 and SENSOR 3 have been plugged in incorrectly. Swap the SENSOR 1 and SENSOR 3 plug in controller to correct this problem. Check SENSOR 1 connection.
  • Page 20 OWNER’S MANUAL 2020 Introduction Main Screen - The main screen displays current time, water temperature, and status of the system accessories. Priming Mode - When power is ON, the system will enter priming mode with ‘Priming Mode’ displayed on the panel. In this mode, all devices such as JETS, BLOWERS or LIGHT are operable.
  • Page 21 OWNER’S MANUAL 2020 SELECTION ICONS SWIM SPA & SWIM WORKOUT 1.Press the SWIM button to turn the pump ON – the SWIM icon on the LCD screen turns ON. 2.Then press UP or DOWN button to select your desired SPEED #. 3.Press the SWIM button again to turn OFF the pump the blue SWIM icon on the LCD screen turns OFF.
  • Page 22 OWNER’S MANUAL 2020 Settings Explained DATE-TIME - set up Date and Time for the spa. With DATE-TIME highlighted, press MENU to enter the DATE-TIME setting. In this screen, pressing MENU will move and highlight various fields that can change the setting; UP/DOWN to change the values and RETURN to confirm the setting and exit.
  • Page 23 OWNER’S MANUAL 2020 OWNER’S MANUAL 2020 Error Codes Explained ◄ Error caused when SENSOR 1 and SENSOR 3 have been plugged in incorrectly. Swap the SENSOR 1 and SENSOR 3 plug in controller to correct this problem. Check SENSOR 1 connection. ► ◄...
  • Page 24 OWNER’S MANUAL 2020 Description of the Buttons Description of the Buttons DOWN DOWN RETURN RETURN MENU MENU LIGHT LIGHT JET 1 JET 1 JET 2 JET 2 SWIM SWIM WORKOUT WORKOUT Introduction Introduction Main Screen Main Screen - The main screen displays current time, water temperature, and status of the system accessories. - The main screen displays current time, water temperature, and status of the system accessories.
  • Page 25 OWNER’S MANUAL 2020 SELECTION ICONS SWIM SPA & SWIM WORKOUT 1.Press the SWIM button to turn the pump ON – the SWIM icon on the LCD screen turns ON. 2.Then press UP or DOWN button to select your desired SPEED #. 3.Press the SWIM button again to turn OFF the pump the blue SWIM icon on the LCD screen turns OFF.
  • Page 26 OWNER’S MANUAL 2020 Settings Explained DATE-TIME - set up Date and Time for the spa. With DATE-TIME highlighted, press MENU to enter the DATE-TIME setting. In this screen, pressing MENU will move and highlight various fields that can change the setting; UP/DOWN to change the values and RE- TURN to confirm the setting and exit.
  • Page 27 OWNER’S MANUAL 2020 Error Codes Explained ◄ Error caused when SENSOR 1 and SENSOR 3 have been plugged in incorrectly. Swap the SENSOR 1 and SENSOR 3 plug in controller to correct this problem. Check SENSOR 1 connection. ► ◄ Error caused by no water flow through heater or no water in heater. Check to be sure there is enough water flow through heater.

  • Page 28: Prv19 Instructions

    OWNER’S MANUAL 2020 PRV 19 STEREO SYSTEM GENERAL OPERATION - SEL button Press and hold this button to enter into SE- LECT function, then repeatedly short push in succession results in the following menu options: Bass, Treble, Balance, Fader, Loud, EQ, Beep, Initial Volume, Area. Press VOL + or VOL - to adjust the options.

  • Page 29: Dm6 Instructions

    OWNER’S MANUAL 2020 AQ-DM-6UBT—DIGITAL MEDIA LOCKER POWER ON Press the ON/OFF button. Red Light: Power to the docking station is ON, but the unit is in standby mode. Blue Light: The unit is powered ON and looking for an au- dio source.
  • Page 30 OWNER’S MANUAL 2020 AQ-DM-6UBT—DIGITAL MEDIA LOCKER LISTENING VIA BLUETOOTH DEVICE Bluetooth mode will be activated once a Bluetooth device is paired in any mode. Use MODE to change to the Bluetooth mode to listen to music. Play the song from device and the sound will play through the Digi- tal Media Locker.

  • Page 31: Ozone Instructions

    OWNER’S MANUAL 2020 DEL OZONE OPERATION MANUAL  Ozone will turn on during the programmed filter cycles and pump# 1 operation.  Verify that the green light on the Ozone turns on when acti- vated.  Check the spa drain (at the bottom of the spa) to verify that small ozone bubbles are coming out.

  • Page 32: Letter From Coast Spas Manufacturing Inc

    OWNER’S MANUAL 2020...

This manual is also suitable for:

Swim 2100veSwim 2101ve
