CDVI RTE-AIR Quick Start Manual

Product Features & Technical Specifications
NO/NC/COM Single pole architrave switch with LED Status
• Sensor: infrared adjustable 3-15cm
• Input Power: 12-24vdc
• Relay Timed: 0.1 sec – 30 sec
• Contact Rating: 24vdc 2A
• Output Contact: Single Pole
NO/NC/COM
• Mechanical Life – 500,000
Power Supply & Connections
A permanent 12-24 VDC supply is required to operate the touchless series of Exit
Buttons.
1
RTE-AIR

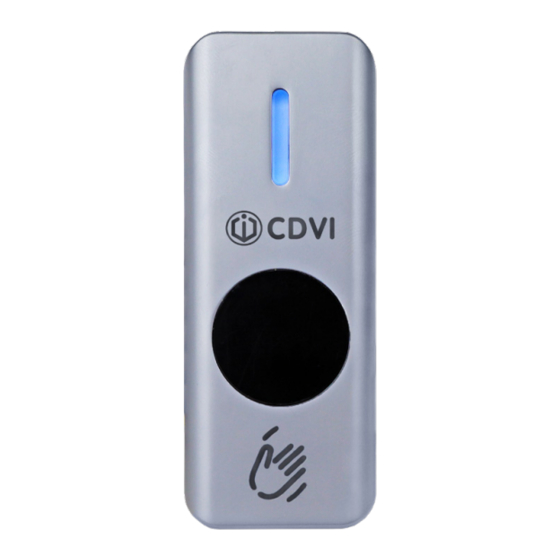

Architrave Infrared Touchless Exit Switch
Instructions of Use
Quick Start Guide
• IP rating: IP68
• Surface mount
• Operating temperature: -20°C to 55°C
• Operating humidity: 0-95%
• LED Status
Blue = Standby
Green = Activated
EN
2
YEAR
WARRANTY
