CDVI RTE-IR Instructions Of Use

Product Features & Technical Specifications
NO/NC/COM Single pole switch with LED Status

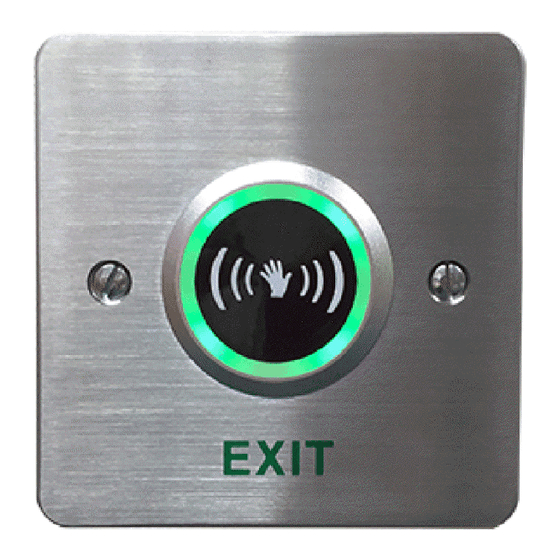

• Infrared Exit Switch, Touchless sensor
• 304 stainless steel
• Adjustable Sensitivity 3-15cm
• DC12~24V, 2A Contact
• LED Status
Blue = Standby
Green = Activated
Power Supply & Connections
A permanent 12-24 VDC supply is required to operate the RTE-IR & Touchless Series of
Exit Buttons.
1
RTE-IR
Infrared Touchles Exit Switch
Instructions of Use
Quick Start Guide
• UK back box format
• Surface or flush mount
• Dimensions: 85.5 x 85.5 x 42mm
(1.7mm flush)
• Operating temperature: -20°C to 55°C
• Operating humidity: 0-95%
EN
1.7mm
2
YEAR
WARRANTY
