- Page 1 FBP Probe Microscope with HD1 Display User Manual 18421 Bothell-Everett Hwy. Suite 110 Mill Creek, WA 98012 Phone: (800) 304-3202 or (425) 398-1298 ZP-PKG-0316 Fax: (425) 398-0717 E-mail: info@westoverscientific.com REV 2 Web: www.westoverfiber.com...
- Page 2 CertiFiCation tested equipment All pre-qualification tests were performed internally at Westover Scientific, Inc., while all final tests were performed externally at an independent, accredited laboratory. This external testing guarantees the unerring objectivity and authoritative compliance of all test results. Westover Scientific’s Commerce and Government Entities (CAGE) code under the North Atlantic Treaty Organization (NATO) is 0L8C3.
-
Page 3: Table Of Contents
Co n t e n t s IntrodUctIon ....................................2–3 Key terms & concepts......................................2 Fiber Connectors....................................3 Simplex, Ribbon & Jewel Fiber Connectors.........................3 Dirt & Contamination..................................3 Scratches........................................3 FBP ProBE MIcroScoPE ................................4–5 overview ..........................................4 Specification &... -
Page 4: Introduction
Throughout their lives, ber connectors must be inspected, analyzed and cleaned to maintain an acceptable level of functionality. By developing and introducing the equipment and software to inspect, analyze and clean ber connectors, Westover Scienti c is able to provide a comprehensive solution for the performance and preservation of ber optic interconnects. -
Page 5: Fiber Connectors
INTRODUCTION Simplex, Ribbon & Jewel Fiber Connectors, Dirt & Contamination, Scratches Simplex, Ribbon & Jewel Fiber Connectors Ferrule Fiber Simplex Fiber Connector A simplex ber connector contains a single ber located in the center of the ferrule. Common types include SC, LC, FC and ST. Ribbon Fiber Connector Simplex Fiber Connector A ribbon ber connector contains multiple linear bers (4, 8, 12, 24, 48 or... -

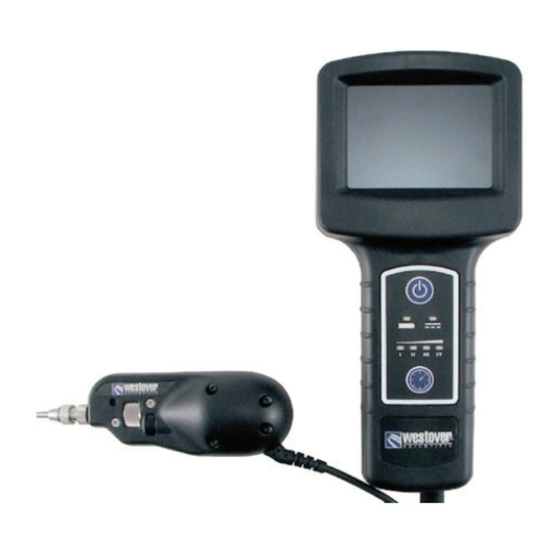

Page 6: Fbp Probe Microscope
From HD1, HD2 or HD3 Display Analog Probes Power Source or USB port of PC • Connect with Westover’s portable hand-held display devices (HD1, HD2 and HD3 Displays) common Probe Models* • Connect to USB Image Capture Module (digital converter) for use FBP-P1 Analog, Single (Low) Mag., NTSC... -
Page 7: Installation
The basic design of the FBP Series Probe Microscope incorporates an imaging system, integrated light source, video camera, focus mechanism and magnifi cation control. The probe is fully assembled and is powered by the HD1 Display. The only assembly required by the user is the connection to the display unit and installation of the appropriate barrel and/or the inspection tip. -
Page 8: Fbpt Probe Tips
A wide range of unique tips is available at Westover and is currently being applied in numerous industry-specific settings (e.g., component/system manufacturers, network service providers, premise networks, military & aerospace). Below are examples of barrel assemblies and inspection tips available at Westover. -
Page 9: Tip Assembly
FBPT-SC-A6 ribbonDrive™ Tips Westover’s patented RibbonDrive™ tips are specialty tips that allow inspection of high- density, multifi ber array connectors that are mounted within a bulkhead adapter. Each tip mates securely with connectors using a precision-keyed mating adapter interface. -
Page 10: Hd1 Display
HD1 DiSPLAy Westover Scientific FBP Probe & HD1 Display Overview & Specifications HD1 DiSPLAY Overview HD1 Display Specifi cations Dimensions 45.7 mm x 43.2 mm x 140 mm HD1 Series Video Display is a durable, lightweight, Weight 400 g ergonomic, drop-tested display unit for use with any NTSC FBP or Video Display 3.5”... -
Page 11: Installation
HD1 DiSPLAy Battery Installation & Connecting the Probe Microscope installation Battery installation Note: The Li-ion rechargeable battery is charged inside the HD1 Display by the power supply. Charge the battery for approximately 2.5 hours before operating for the fi rst time. The battery must be in the display for the unit to operate. The HD1 Display is powered by either a rechargeable Li-ion battery (Sony NP-550) OR by the 100–240VAC power supply. -
Page 12: Controls
HD1 DiSPLAy Westover Scientific FBP Probe & HD1 Display Controls (Auto Shut-down Interval & Contrast Control) controls Auto Shut-down interval (shared function control with Contrast Control) There are 4 settings that control the length of time the LCD will remain ON after the unit is turned on. -
Page 13: Hanging / Standing Accessory
HD1 DiSPLAy Hanging/Standing Accessory, Removable Magnet Hanging / Standing Accessory For hands-free operation, the Hanging/Standing Accessory can be used in 2 positions: The hook/hanging feature allows the unit to be “hooked” onto an appropriate location/device for convenient stowage. The standing feature allows the unit to be set down on a flat surface. - Page 14 ZP-PKG-0316 REV 2 © 2007 Westover Scientific, Inc. All rights reserved.
