Listen LCS-120-01 Quick Start Manual

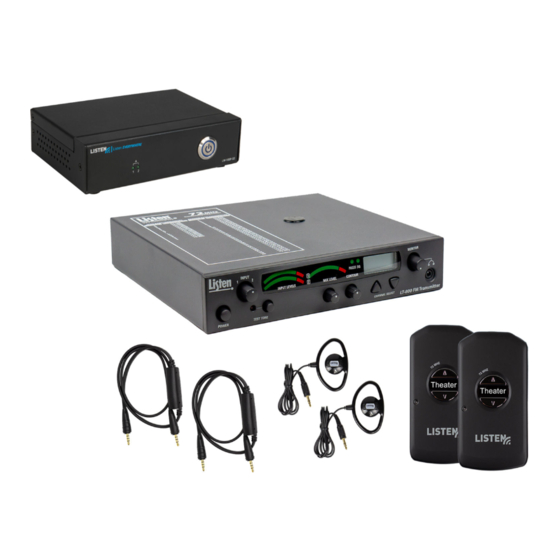

Wi-Fi/RF COMBO COMPLIANCE SYSTEMS
LCS-120-01, LCS-120-01- D, LCS-121-01 AND LCS-121-01-D
LISTEN EVERYWHERE SETUP
Audio Source
Power Input
Line Level Audio
TROUBLESHOOTING TIP
Experiencing lack of signal? Check IP addresses on the venue server
and smartphones to ensure they are on the same public network.
CLOUD SERVER SETUP (optional)
The cloud server offers in-app marketing features including banner
ads and promotional videos, web-based remote setup and
maintenance, and advanced customization. Create an account with
the Cloud Server by sending an email to
including the following information:
User Setup
Last Name
First Name
Phone
Email
Cloud Services
100P LE Server
Ethernet Switch
WAP
(Wireless Access Point)
Smartphone
support@listentech.com
Company Setup
Company Name
Phone
Venue Type
Address
LE Server Venue Serial Number
*Serial number looks like: LEL6-2345-43RF-TEW9
Let's get this audio started!
Internet
Router
Wireless
router combines
many features
QUICK START GUIDE
1. Connect Audio
Connect the audio source(s) to the
server via the terminal block
connectors on the rear panel.
Note: The input jacks accept line-level mono
input. If stereo output is required, use two
audio inputs for L and R audio, then select
"stereo" in the Cloud Server. (See Cloud
Service Setup on
www.listentech.com/support/manuals)
2. Network Connection & Power
Connect the LE server to your local
area network (LAN) via the
ethernet port on the rear panel,
then plug in the power cable. The
LAN should have at least one
wireless access point (WAP) and a
router, wireless router, or a DHCP
server. The server and
smartphones need to be on the
same public network.
3. Download App
Download the Listen EVERYWHERE
app from the App Store or Google
Play. Join the Wi-Fi network
associated with the Venue Server
(i.e., on the same LAN). Launch the
app, select channel to stream,
enjoy!
You will receive an email with login
credentials to
service.listeneverywhere.com
