Healthmark Flexible Inspection Scope Instructions For Use Manual

Brand Name of Product
Generic Name of Product
Product Code Number(s)
Intended Use
Range of Applications for Product
Key Specifications of Product
Shipping & Storage
Shipping Conditions &
Requirements
Storage Conditions
Packaging Contents
Shelf Life
Instructions for Using Product
Description of For visually inspecting items.
Use(s)
Instructions for Use: Flexible Inspection Scope Kit-USB
Flexible Inspection Scope Kit - USB
Flexible Inspection Scope Kit - USB
FIS-007U, FIS-007USK, FIS-007UB, CT-101, CT-102
For visually inspecting items.
Enhance visual inspection by providing lighted magnification, image capture and the
option for documentation in hard-to-see crevices, channels, and lumens in areas of
instruments that are not visible to the unaided eye.

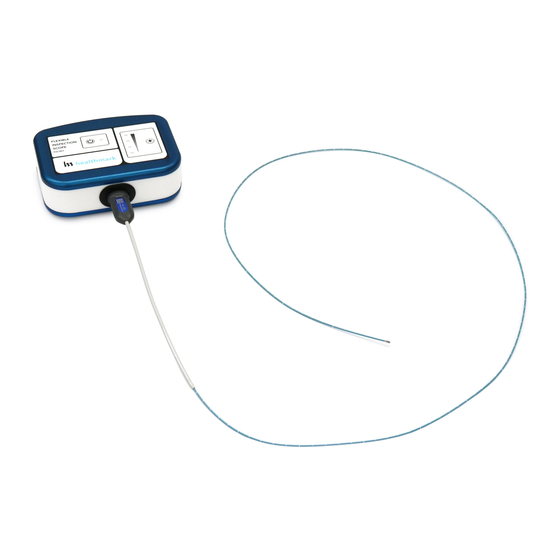

Flexible Inspection Scope- FIS-007U
•
CT-101 1.9 mm OD and 110 cm length
•
CT-102 1.06 mm OD and 110 cm length
•
Optical
o
Resolution format:
o
CT-102 1.06 mm— 40,000 or 200 x 200 pixels
CT-101 1.9 mm — 160,000 or 400 x 400 pixels
o
o
Field of View: 120° in air
o
Angle of view: 0°
USB Control Module: Control Module housing Camera processor and LED
illumination:
•
Dimensions: 5.25 in x 3.90 in x 1.85 in
•
Weight: 1.20 lbs
•
Digital Inspection Scope Connection
•
Illumination Control- LED in the Control Module
•
Power Cycle
•
USB Camera Cable
•
Easily change from small and large diameter scopes
Light Settings:
There are four light settings operated by one button.
Blinking Light (Indicates transmitting video data):
•
Splash proof (IPX5 Rating).
•
No external power needed.
Flexible Inspection Scope Software Requirements:
•
Compatible with Windows 10 Operating systems
•
USB Flash Drive includes Software.
N/A
Storage and transport
Humidity: 10 to 100 %rh (condensing)
Temperature: -20 to 60 °C
Pressure: 600 to 900 hPA
Normal Operation
Humidity: 0 to 100 %rh (condensing)
Temperature: 5 to 40 °C
N/A
Warranty: one-year from date of purchase.
