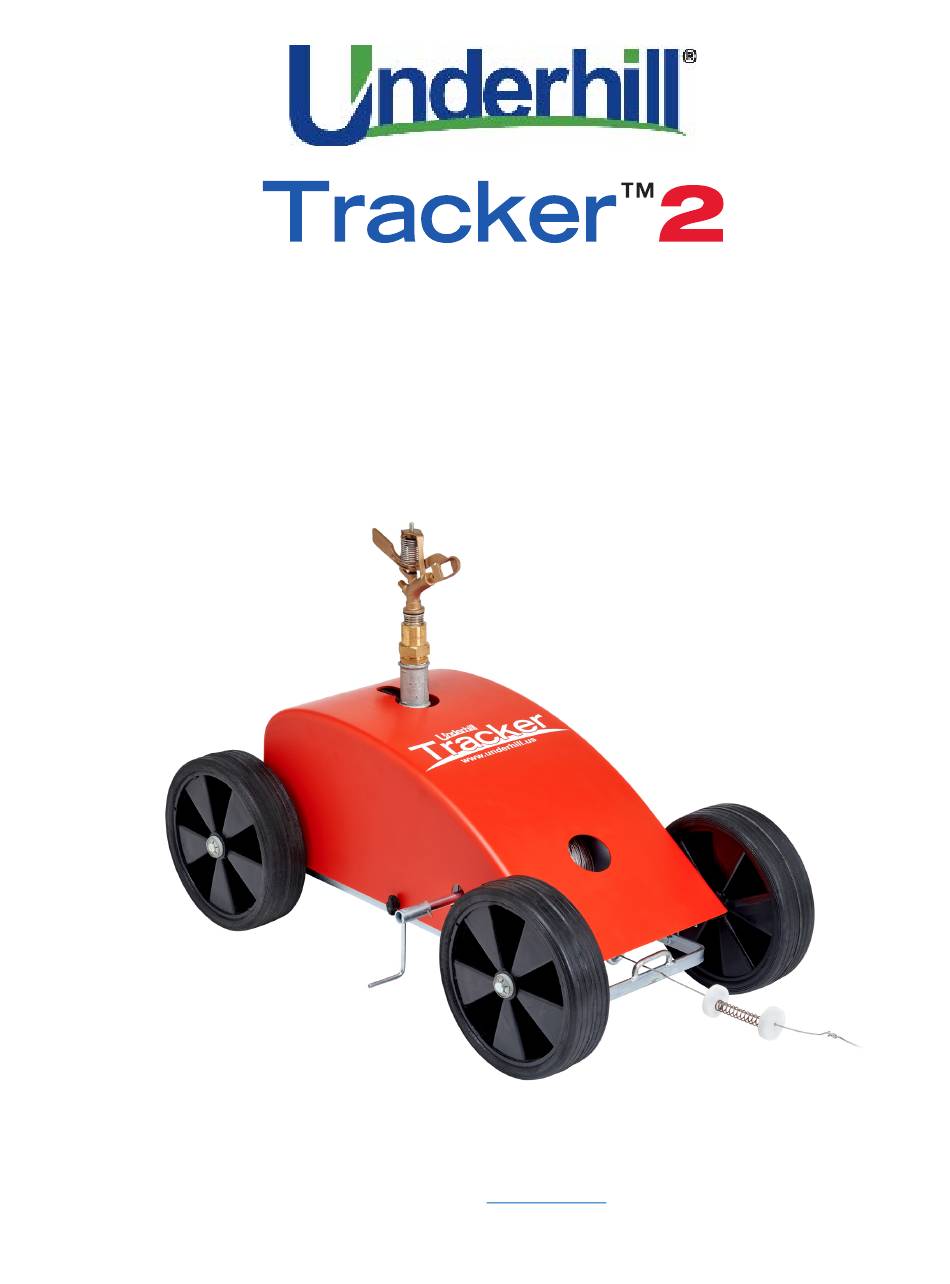

- Page 1 T-400-2 Portable Irrigation Machine Assembly and Operating Instructions Underhill International Corporation Irvine, CA USA 866-863-3744 • www.underhill.us...
- Page 2 Table of Contents INTRODUCTION ................................3 APPLICATIONS ................................3 GENERAL INSTRUCTIONS FOR SAFETY AND ACCIDENT PREVENTION ................3 BEFORE USE ................................4 RECOMMENDED TOOLS FOR ASSEMBLY ........................4 GETTING STARTED ..............................4 WINTERIZATION ................................. 7 SPECIFICATIONS ................................. 7 ................................ 7 RODUCT IMENSIONS ..........................
- Page 3 Introduction Congratulations on your purchase of Underhill’s newest generation of portable irrigation machine Tracker . Now more streamlined with the following unique features: • 328 ft. (100m) of galvanized steel pull cable, • Simplified gear drive assembly for longer life and consistent performance, •...
- Page 4 Before Use The following tasks should be reviewed and completed prior to setting the machine into operation: • Confirm anything that was previously disassembled for transport or maintenance are in their correct place including the impact sprinkler is tighten into the threaded sprinkler inlet •...
- Page 5 , see Figure 5-1. Notice the supplied brass hose quick-connect. Thread the male end of your 1” hose into the threaded female end of the brass quick connect. Underhill offers a wide variety of UltraMax 1” hoses in both standard and custom lengths.
- Page 6 7. Secure the ground stake where irrigation is to finish. To secure the pull cable, by pressing the lock nut and trip pin inward see Figure 6-1. Pull Lock Nut and Trip Push Lock Nut and Trip Pin Outward to Unlock Pin Inward to Lock Unlocking and Locking Pull Cable Figure 6-1...
- Page 7 Stopper Figure 7-1 Attention: The hose should not stay under water pressure after the unit has shut down for an extended period of time. The water supply is to be closed and any remaining water pressure relieved prior to opening the quick closing valve. Confirm the pull cable has been release per instruction #6.
- Page 8 Impact Sprinkler Performance Chart Nozzle Size Operating Pressure Radius Flow Rate at sprinkler Inches / (mm) (bar) 52’ 16,0 56’ 17,1 ¼” 56’ 17,2 (6.4mm) 59’ 18,0 62’ 18,9 62’ 18,9 12.7 Data below recommended operating pressure Hose Friction Loss Chart Friction Loss for 1"...
