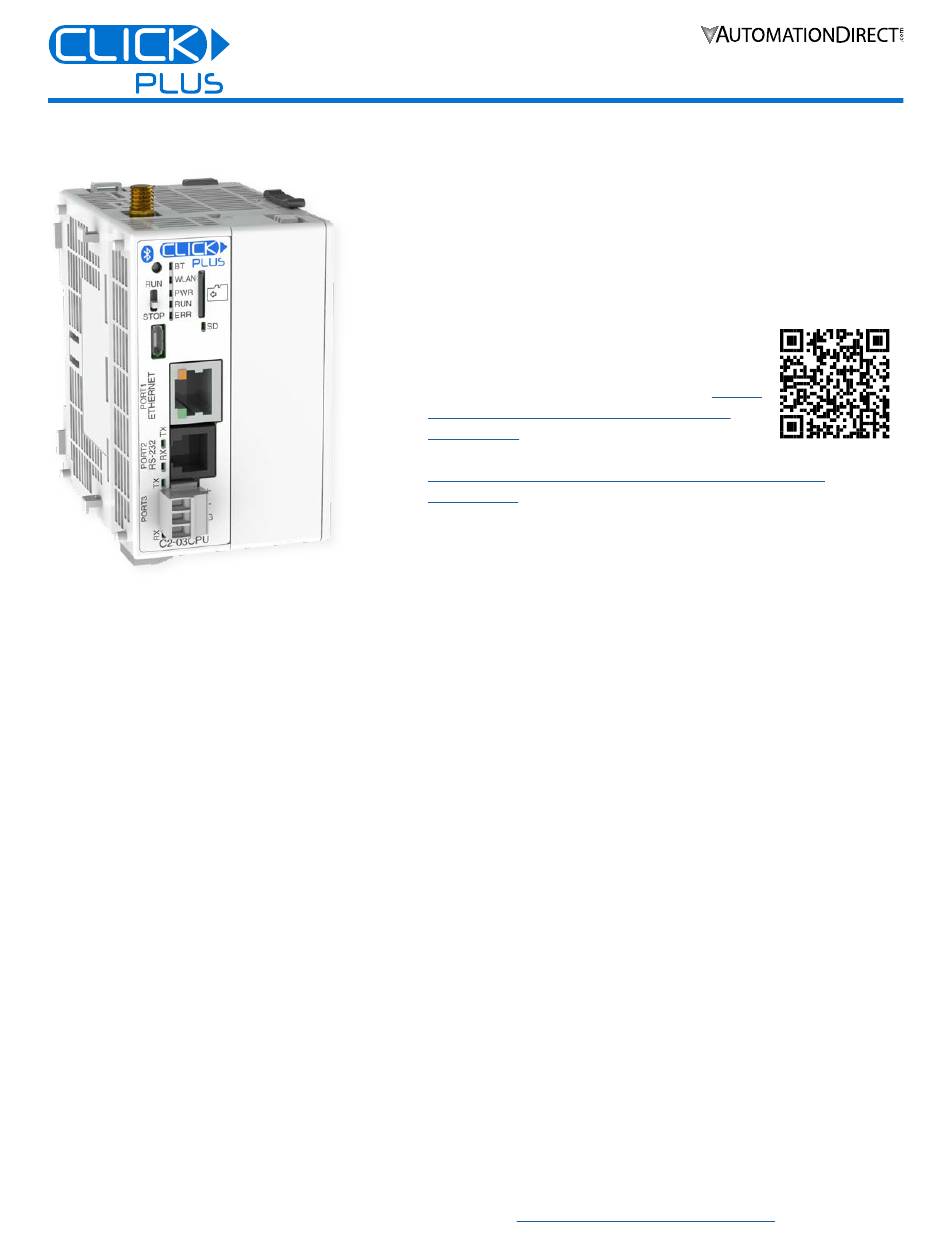

CLICK PLUS C2-03CPU
The CLICK PLUS C2-03CPU has the most
connectivity options in our CLICK PLUS
CPU family. It offers both Wi-Fi and Bluetooth
connection for simple wireless provisioning and
connectivity with the CLICK Mobile app. With
both RS-232 and RS-485 ports, you can connect
multiple serial devices. The RJ-45 Ethernet
port allows for a separate (secondary) network
connection apart from the Wi-Fi network.
Key Features
ƒ
Real Time Clock/Calendar
ƒ
Battery backup (battery sold separately)
ƒ
RS-232 port
ƒ
RS-485 port
ƒ
micro-B USB port
ƒ
microSD Card slot
ƒ
RJ-45 Ethernet
ƒ
WLAN
ƒ
Bluetooth
Copyright© 2020, Automationdirect.com Incorporated/All Rights Reserved Worldwide
C2-03CPU Quick Start Guide
Shown with optional C2-FILL
slot cover (sold separately)
Before You Begin...
This guide provides a quick overview of installation and setup of your
CLICK PLUS CPU. It assumes some familiarity with the installation
and operation of industrial control equipment.
Please read and understand the information in this guide prior to
installation, operation, or servicing this equipment.
The CLICK PLUS User Manual provides full specifications and more
in-depth information on installation, setup,
programming and operation of the device. The
User Manual (C2-USER-M) is available in PDF
format by scanning this QR code or from
www.automationdirect.com/pn/doc/manual/
C2-USER-M. Extensive online help is also
available from within the CLICK software or at
https://www.automationdirect.com/clickplcs/free-software/
software-help.
What You'll Need
ƒ
CLICK PLUS CPU
ƒ
PC, or Android or iOS mobile device (for setup/provisioning)
ƒ
Click Software ver. 3.00 or later (PC) or Click App (mobile device)
ƒ
24VDC power supply (SELV and Limited Energy)
(CLICK power supply C0-00AC or C0-01AC is recommended.)
ƒ
Appropriate enclosure with vertical surface for DIN rail or surface mount
ƒ
M4 screws, spring washers and flat washers if surface mounting
ƒ
Ferrules and crimping tool for wire terminations (recommended)
ƒ
An Option Slot cover (part #C2-FILL) is recommended if you are not
planning to use an Option Slot module. (Sold separately.)
ƒ
Basic tools (screwdriver, wire stripper, etc.)
PLEASE REVIEW THE SAFETY WARNINGS ON THE
NEXT PAGE!
www.automationdirect.com/click-plc
3505 HUTCHINSON ROAD
CUMMING, GA 30040-5860
1-800-633-0405
https://
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLICK PLUS C2-03CPU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AutomationDirect CLICK PLUS C2-03CPU

  • Page 1 ƒ 24VDC power supply (SELV and Limited Energy) (CLICK power supply C0-00AC or C0-01AC is recommended.) The CLICK PLUS C2-03CPU has the most connectivity options in our CLICK PLUS ƒ Appropriate enclosure with vertical surface for DIN rail or surface mount CPU family.
  • Page 2: Safety Warnings

    Don’t disassemble or modify equipment so as to avoid electric shock, equipment damage, or fire. ƒ Cut off all phases of the external power source before mainte- nance work, thus avoiding electric shock or equipment damage. Flow www.automationdirect.com/click-plc Copyright© 2020, Automationdirect.com Incorporated/All Rights Reserved Worldwide...
  • Page 3: Antenna Mounting

    Name Description Symbol Direct current IEC6047 No. 5031 Functional earthing IEC6047 No. 5017 Safety instruction for CAUTION ISO 7000 No.0434B battery replacement I/O wiring is discussed in each module’s documentation. www.automationdirect.com/click-plc Copyright© 2020, Automationdirect.com Incorporated/All Rights Reserved Worldwide...
  • Page 4 Battery may explode if mistreated. Reverse the procedure. Do not recharge, disassemble, or dispose of in fire. Lift slightly on the locking clips until they release, then slide each clip forward. Reverse the procedure. www.automationdirect.com/click-plc Copyright© 2020, Automationdirect.com Incorporated/All Rights Reserved Worldwide...
  • Page 5 Install the CLICK PLUS Provisioning App using one of the QR codes below, or search for the app in the appropri- ate app store (CLICK PLUS Provisioning, published by Automationdirect.com). Apple Store Google Play Store Pairing Button BT LED Flashing www.automationdirect.com/click-plc Copyright© 2020, Automationdirect.com Incorporated/All Rights Reserved Worldwide...
  • Page 6: Connect To A Wireless Access Point

    Select an Access Point and type in the correct password that the The PLC is now connected to the network and accessible to PCs PLC will need to connect. running the CLICK Programming Software and connected to the same network. www.automationdirect.com/click-plc Copyright© 2020, Automationdirect.com Incorporated/All Rights Reserved Worldwide...
  • Page 7: External Features

    1-800-633-0405 Connecting via USB External Features To connect the CLICK PLUS CPU to a PC, use a USB A to USB micro-B cable, such as the AutomationDirect USB-CBL-AMICB6 cable. Ba�ery (Op�on) Connect the cable between the CPU micro-B port and an WLAN/BLE External Antenna Port available USB port on your PC.
  • Page 8: Technical Specifications

    IP Address: 192.168.0.10 à Format FAT16 FAT32 Subnet Mask: 255.255.0.0 à Default Gateway: 0.0.0.0 à Capacity 128MB to 2GB 4GB to 32GB Manually configured Fixed Address ƒ Status Lamp Status Lamp MOUNTED/ACCESS LINK/ACT, 10/100 www.automationdirect.com/click-plc Copyright© 2020, Automationdirect.com Incorporated/All Rights Reserved Worldwide...
  • Page 9: Mechanical Drawings

    SE-ANT210 32.3 BLUETOOTH 1.27 PAIRING MODE SWITCH 46.6 1.83 MICRO USB 126.8 4.99 85.0 101.8 ETHERNET 10/100 3.35 4.01 SERIAL PORT RS-232 46.4 1.83 SERIAL PORT RS-485 POWER TERMINAL BLOCK 60.8 2.39 www.automationdirect.com/click-plc Copyright© 2020, Automationdirect.com Incorporated/All Rights Reserved Worldwide...
  • Page 10 The C2-03CPU complies with Part 15.247 modular (Inten- Dome tional Radiator) FCC rules and regulations. Changes or mod- 2.4 GHz antenna, ifications not expressly approved by AutomationDirect could IP67, panel mount, void the user’s authority to operate the equipment. 9.8ft/3m cable length.
