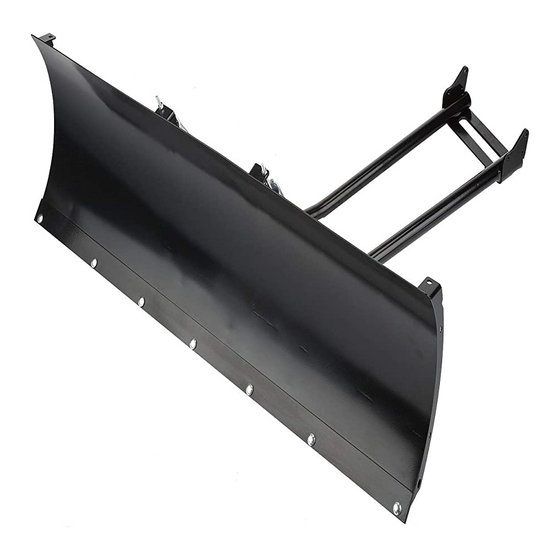

Motoalliance Viper Plow Manual

Motoalliance Viper Plow Manual

Plow system to using for snowing aside snow and dirt with use of you atv

Advertisement

Quick Links

23001 Industrial Blvd, Rogers, MN 55374 / 1-866-527-7637 / www.motoalliance.com
VIPER PLOW SYSTEM / Honda Rincon
MA11114
Thank you for purchasing the premium VIPER PLOW system. You now have a top-of-the-
line plow system to using for shoving aside snow and dirt with the use of your ATV. Please
note the following instructions and heed all warnings.
WARNING!!!
SEVERE INJURY OR DEATH MAY RESULT IF YOU IGNORE ANY OF
THE FOLLOWING.
−Read the Plow Operator's Manual, the Winch Operator's Manual, and all warning labels
before operating.
−Operate ATV at a walking speed with the blade installed. Do Not exceed 5mph (8 km/h)
even with the blade up.
-Plow Cautiously, impact with a hidden or stationary object may cause the ATV to stop
suddenly or go out of control.
--Do Not operate the ATV on slopes greater than 10° with the plow installed.
−Do Not stand or ride on the plow.
Stay clear of moving parts and joints. Keep others away when operating or adjusting plow.
−Inspect the plow mechanism, fasteners, cable, and adjustments before operating. Replace
all worn or damaged parts before operating.
−Lower the plow to the down position before leaving the ATV
unattended.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Viper Plow and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Motoalliance Viper Plow

  • Page 1 VIPER PLOW SYSTEM / Honda Rincon MA11114 Thank you for purchasing the premium VIPER PLOW system. You now have a top-of-the- line plow system to using for shoving aside snow and dirt with the use of your ATV. Please note the following instructions and heed all warnings.
  • Page 2 Parts List Plow Mount 1 5/16” dia x 1-1/8” wide U-bolt bolt (42012) 5/16” dia x 1-3/8” wide U-bolt bolt (42018) 5/16” dia flat washer 5/16” dia nylock nut III. Installation 4. Terminate the ends of the two 5/16” d 4.
  • Page 3 7. If using a winch to lift plow, connect winch clevis hook to blade and base assembly for easy connect and disconnect. WARNING -Tighten all nuts and bolts securely. Failure to check all nuts and bolts prior to use can result in product failure which can lead to vehicle damage and operator injury or death.
