BRCB-V2 Owner‛s Manual
Specifications
Dimensions (w/d/h): 4.39" x 2.38" x 1.98" (110mm X
60mm X 50mm)
Weight: 0.6 lbs. (270g)
Power Consumption: 9vdc/6ma or 18v/6ma
Battery Type: 9vdc (006p) x 1
AC Adapter (optional): 9vdc, negative tips (regulated
recommended) Boss PSA, Ibanez AC109, Dunlop Brick,
Voodoo Labs, 1-spot etc
Input Impedance: 500k Ω (min)
Output Impedance: 10k Ω
True Bypass Switching
DC JACK
when an external
power supply is used,the battery is
disconnected from the circuit.
remove four screws from the
bottom plate to access battery

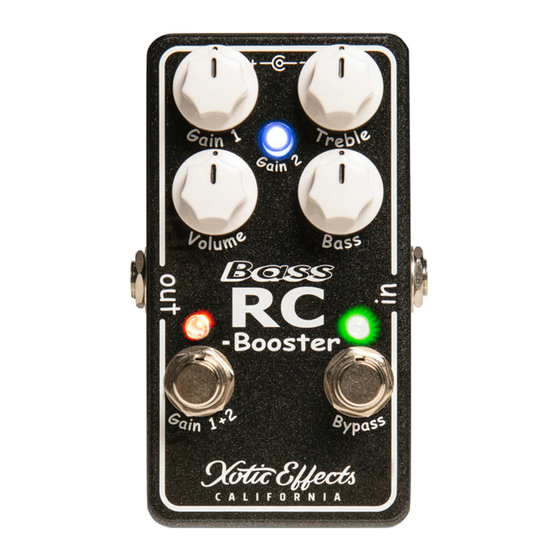

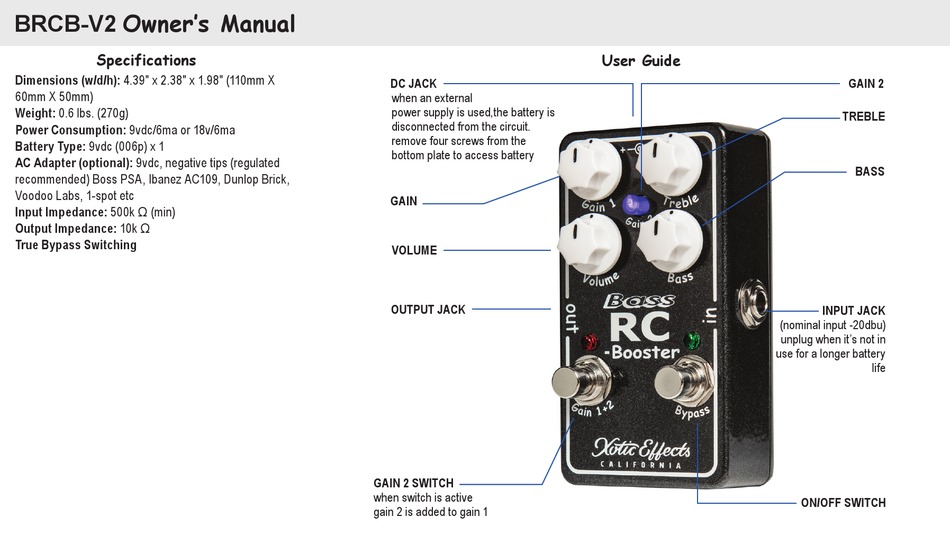

GAIN
VOLUME
OUTPUT JACK
GAIN 2 SWITCH
when switch is active
gain 2 is added to gain 1
User Guide
(nominal input -20dbu)
unplug when it's not in
use for a longer battery
GAIN 2
TREBLE
BASS
INPUT JACK
life
ON/OFF SWITCH
