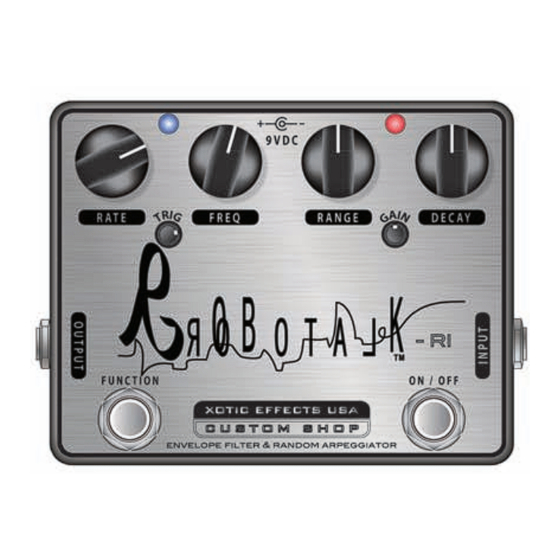

XOTIC EFFECTS RoboTalk-RI Manual

Congratulations on purchasing the NEW Xotic Robotalk-RI! After much R&D, the Xotic Effects Custom Shop has re-engineered
and revitalized the original Robotalk. Now in a compact size, we have improved its unique envelope filter tone and enhanced
the arpeggiator with more wonderfully strange and mesmerizing sounds.
9
10
11
12
2
8

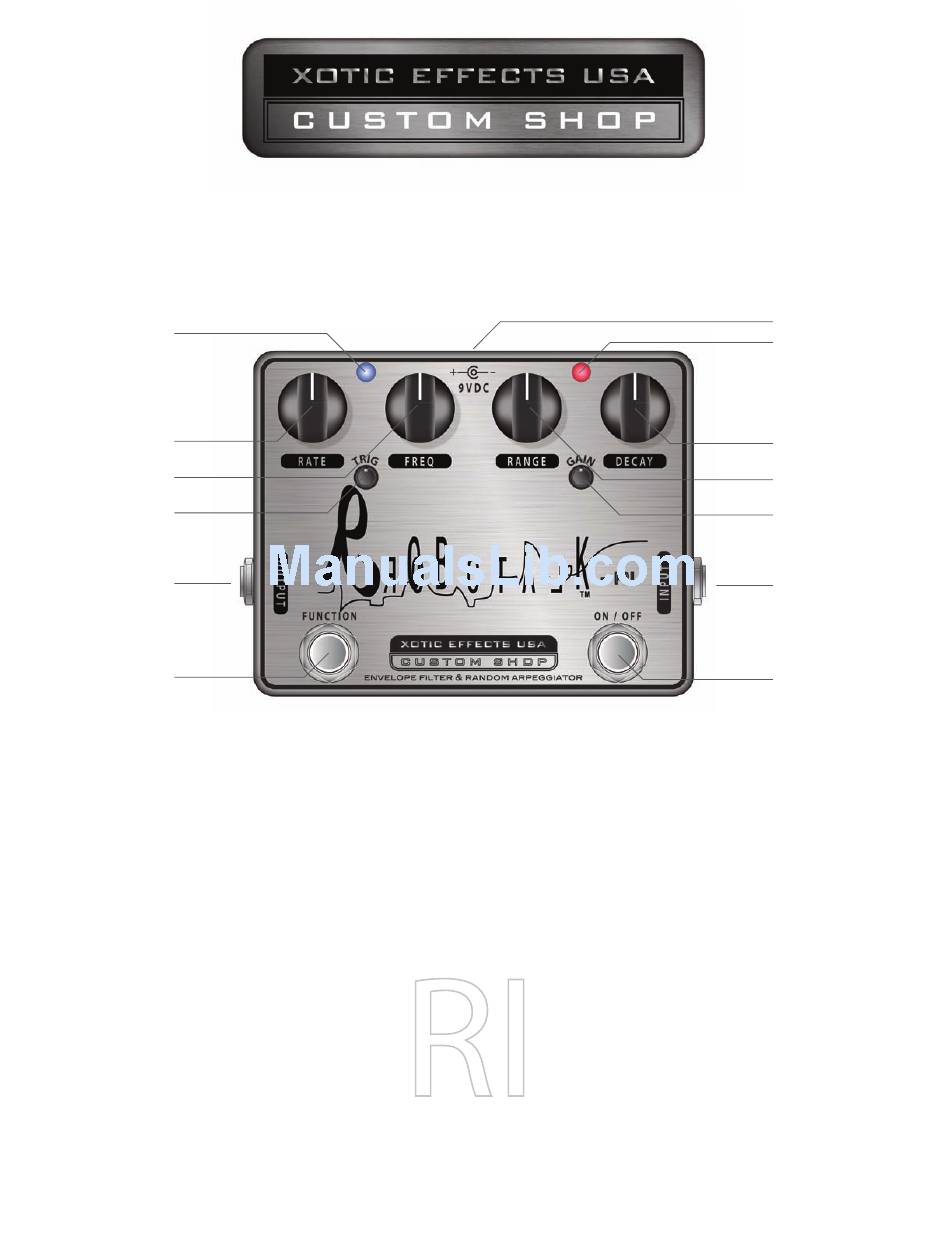

1. INPUT JACK - Connect instruments. Nominal input -20dBu.
2. OUTPUT JACK - Connects to amp.
3. ON/OFF SWITCH - Turns on/off the unit. True bypass for no tone loss.
4. STATUS LED - The LED lights up when the unit is turned on.
5. RANGE KNOB - Controls the sensitivity of envelope filter reacts by the input signal.
6. DECAY KNOB - Controls the length of decay time of envelope and the start frequencies.
7. GAIN KNOB - Boosts the output signal up to +15dB.
8. FUNCTION SWITCH - Switches between Envelope Filter and Random Arpeggiator.
9. TEMPO LED - Flashes at the tempo that is determined by the RATE knob.
10. RATE KNOB - Controls the tempo of arpeggiator.
11. FREQ. KNOB - Controls the center frequency of arpeggiator.
12. TRIG KNOB - Controls the intensity of arpeggiator.
13. DC JACK - 2.1mm x 5.5mm barrel plug / 9VDC negative center. Use only regulated power supply.
Note: Remove four screws from the bottom plate to access battery.
Features and Specifications
Dimensions (W/D/H): 4.7" x 3.7" x 2.0" (119mm X 94mm X 51mm)
Weight: 0.9 lbs. (400g), Power Consumption: 9VDC/20mA
Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): 9VDC Negative Tips, Regulated ONLY
Voodoo Lab Pedalpower, Dunlop DC Brick
Boss PSA, Ibanez AC109
Input Type: Active or passive unbalanced
Input Impedance: 1meg ohm
Output Impedance: 1k ohm
