Brano Z220-A Instruction Manual

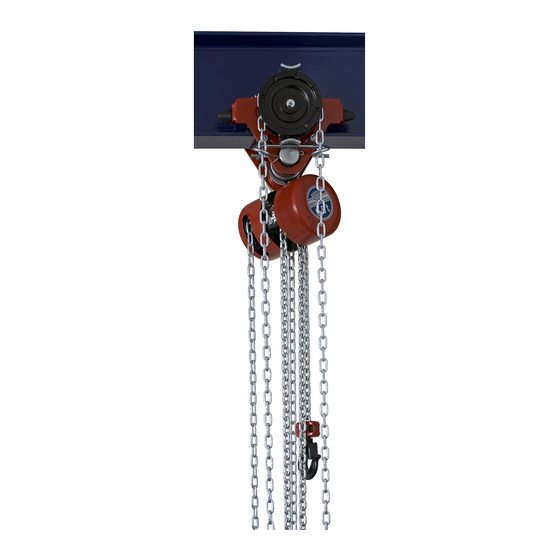

Travelling chain blocks
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BRANO a.s., 747 41 Hradec nad Moravicí
the Czech Republic
tel.: +420/ 553 632 303
http://www.brano-zz.cz; http://www.brano.eu
zz-info@brano.eu; info@brano.eu
INSTRUCTION MANUAL
SAFETY PRINCIPLES, OPERATION AND MAINTENANCE
FOR
TRAVELLING CHAIN BLOCKS
type Z220
modification according to the width of the running profile
– A, – B, – C
–
design for potentially explosive atmospheres
NEXP
lifting capacities
0,5t; 1t; 1,6t; 3,2t; 5t; 7,5t; 10t; 15t and 20t
Read carefully this manual before using this product. This manual contains important
information on use, safety, installation, operation and maintenance of the product.
Make this manual available to all responsible persons.
Keep for further use!
Edition 10
th
August 2020
Evidence number 1-56802-0-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z220-A and is the answer not in the manual?

Questions and answers

Related Manuals for Brano Z220-A

Summary of Contents for Brano Z220-A

  • Page 1 BRANO a.s., 747 41 Hradec nad Moravicí the Czech Republic tel.: +420/ 553 632 303 http://www.brano-zz.cz; http://www.brano.eu zz-info@brano.eu; info@brano.eu INSTRUCTION MANUAL SAFETY PRINCIPLES, OPERATION AND MAINTENANCE TRAVELLING CHAIN BLOCKS type Z220 modification according to the width of the running profile –...

  • Page 2: Table Of Contents

    CONTENT 1 DEFINITION ............................... 3 2 DEVICE PURPOSE ............................ 3 3 SAFETY PRINCIPLES ..........................4 3.1 SAFETY SUMMARY ........................... 4 3.2 SAFETY PRINCIPLES ........................4 3.2.1 Prior to use ............................4 3.2.2 When in use ............................. 5 3.2.3 After use ............................5 3.2.4 Risk analysis ............................

  • Page 3: Definition

    1 DEFINITION ! DANGER Danger: is used to indicate the presence of hazard, which will cause death or severe injury, if the warning is ignored. ! WARNING Warning: is used to indicate a possible hazard, which could cause death or severe injury, if the warning is ignored. ! CAUTION Caution: is used to indicate a possible hazard, which could cause light injury, if the warning is ignored.

  • Page 4: Safety Principles

    3 SAFETY PRINCIPLES 3.1 SAFETY SUMMARY Danger exists when lifting and travelling with loads, particularly when the chain block is not used properly or is poorly maintained. Since an accident or serious injury could result, special safety precautions apply to the operation with the chain block during its assembly, maintenance and inspection.

  • Page 5: When In Use

    3.2.2 When in use ALWAYS make sure the load is properly seated in the hook. ALWAYS make sure the safety latches of hooks work in the correct way. ALWAYS pay attention to the limit positions. ALWAYS use manual power only. ALWAYS when lifting loads approaching the nominal lifting capacity of the lifting device, we recommend, regarding the operating forces, the operation...

  • Page 6: Storage

    LIFTING CAPACITIES 0,5t; 1t; 1,6t; 3,2t and 5t Table 5.A - Technical parameters Lifting Travel Lifting Weight Type capacity speed speed Lift (m) (kg) (m/min) (m/min) Z220-A 16,9 Z220-B 18,6 ∅5x15 Z220-C 19,6 Z220-A 22,4 Z220-B 24,1 ∅7x21 Z220-C 25,1...
  • Page 7 Table 5.B - Dimensions I – beam Main dimensions – informative (mm) Lifting ( I, IPE, HEA, HEB, HEM ) Type capacity (t) Z220-A 89 - 144 58 - 113 58 - 226 (IPE, HEA, HEB) Z220-B 89 - 253 58 - 155...
  • Page 8 Travelling chain blocks with great length of lift can be equipped upon special request with a chain container LIFTING CAPACITIES 7,5t and 10t Table 5.C - Technical parameters Range of Lifting operating Weight speed Lift (m) Type temperatu (kg) (m/min) Z220 207,2 0,15...
  • Page 9 LOAD CAPACITIES 15t and 20t Table 5.E - Technical parameters Range of Weight Increase in Lifting Lift operating without weight per speed max. Type temperat chain 1m of lift (m/min) (kg) (kg) -20° C 0,15 Z220 ∅11x31 19,2 +50° C Notes: 1) Calculated under presumption of unwinding 30m of hand chain per minute on each chain block.

  • Page 10: Mechanical Classification

    5.1 MECHANICAL CLASSIFICATION Safety and life of the travelling chain block is guaranteed under presumption it works in accordance with the specified classification. The travelling chain block is designed for the class 1Bm according to the regulation FEM 9.511 – see TABLE 5.1. (conforms to classification of the mechanism M3 according to the ISO 4301/1).

  • Page 11: Data On Product

    5.3 DATA ON PRODUCT Every product is fitted with label with specified data as follows: Standard design: NEXP product design: Manufacturer’s identification Manufacturer’s identification Address of the manufacturer Address of the manufacturer Type of product Type of product Lifting capacity Lifting capacity Serial number Serial number...

  • Page 12: Assembly Of The Chain Block

    ! WARNING The permissible maximum deflection of the trolley beam track from loading by own mass and nominal loading capacity is 1/500 of distance between suspending (supports). Permitted maximum gradient of running surface is 0,3%. Maximum height of the trolley beam track above the floor is 20m. An application of the chain block on higher trolley beam tracks is necessary to be consulted with the manufacturer.

  • Page 13: Installation Onto Trolley Beam Track Of Lifting Capacities 1,6T; 3,2T; 5T; 7,5T And 10T

    6) The same number of distance washers set on the other side of the lifting loop (sheave fork). 7) Put on the lower flange of I – beam the other side plate and set on the cross beam all remaining distance washers and ensure by cotter pin. 8) Stretch ends of both cotter pins so that they cannot fall out.

  • Page 14: Setting Of The Hand Chain

    6.3.1 Setting of the hand chain After the installation of the chain block in the workplace we check the position of the hand chain. The distance of the end of bottom loop of the hand chain over the level of the surface, on which operation staff of the chain block stands during the operation, must be in the range 500 –1000mm.

  • Page 15: Lifting, Lowering

    It is operated by means of hand chains. It is determined for organisations and private persons as well. When installed outside, protect the chain block against the direct climatic influences. ! WARNING Since work with heavy loads may present an unexpected danger, it is necessary to follow all the “Safety instructions”...

  • Page 16: Safety Working Environment

    7.3 SAFETY WORKING ENVIRONMENT ! WARNING (1) The operating staff must be demonstrably familiarized with this manual, must follow safety and hygienic regulations and must be authorized to the operation of this equipment. (2) The operating staff must be equipped with helmet, gloves and suitable footwear. (3) Only verified binding means of appropriate lifting capacity are to be used for binding loads.

  • Page 17: Daily Inspection

    8.1.2 Daily inspection Check, at parts such as those listed in section 8.2(1) “Daily inspection”, whether chain blocks are not damaged or are without any defect. Provide this inspection also during the operation in the interval between regular inspections. Qualified employees shall determine, whether any defect or damage can constitute a hazard or more detailed inspection is required.
  • Page 18 3. Hooks Visually. Safety latch jump out Professional (1) Appearance from the hook top. inspection of lifting Bent shank of the device – replacing the hook, other visible hook and other hook deformations. damaged parts. (2) Hook rotation Turn the hook around Hook does not rotate Clean and lubricate.
  • Page 19 (2) Regular inspection (provided by qualified person) INSPECTION LIMIT/CRITERIA PART REMEDY METHOD FOR DISCARD 1. Fastening parts. Visual check of all Defective or missing Replace by new ones. bolts, nuts, rivets, parts. etc. Released parts. Fasten released parts. 2. All parts Visual check.
  • Page 20 Pitch of measured linksů Number of Discard limit Chain size p x 5 measured linksů Standart Limit 77,3 ∅5 108,2 ∅7 139,1 ∅9 159,7 ∅11 6. Brake - function Suspend the load equal After interrupting the If it does not happen, to nominal lifting operation, the brake ask for repairing and...

  • Page 21: Trouble-Shooting

    9 TROUBLE-SHOOTING Situation Cause Remedy 1. The chain block doe not Brake slips. Setting the brake or repair keep the load. according to the chapter „Maintenance“. 2. The chain block lifts hard (1) The chain block is (1) Decrease the weight of or fails to lift the load.

  • Page 22: Load Chain

    10.3 LOAD CHAIN ! WARNING The wrong maintenance and inappropriate lubrication of the chain can be a cause of a serious accident. ALWAYS lubricate the chain 1 x per week or more often according to the exigency of the operation. ALWAYS lubricate more often in corrosive environment than under normal circumstances (salt water, sea environment, acids, etc.).

  • Page 23: Brake Adjustment

    11.2.2 Multi-fall chain Take off the free end of the chain on the chain block body after previous dismantling of cotter pins and sliding off the pin. Hook C – link and end link of the new chain after the last link of the free strand - see pic.

  • Page 24: Repair

    11.6 CHECK Check all the dismantled parts, whether they are suitable for further use. 1. Check all gears including the shaft, whether they are not worn out and have no scratches or cracks. 2. Check, whether the treaded parts have undamaged tread. 3.
