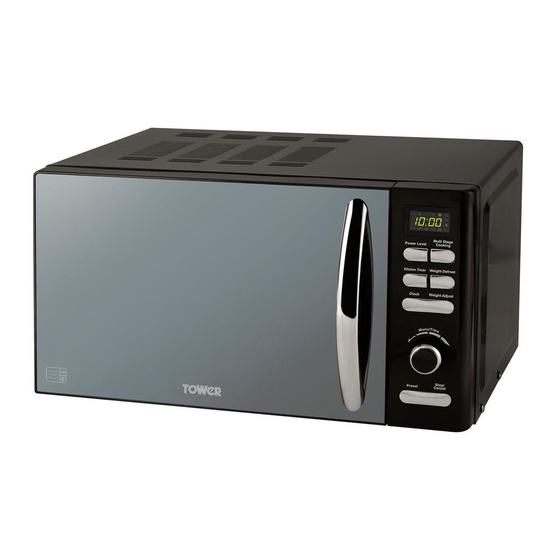

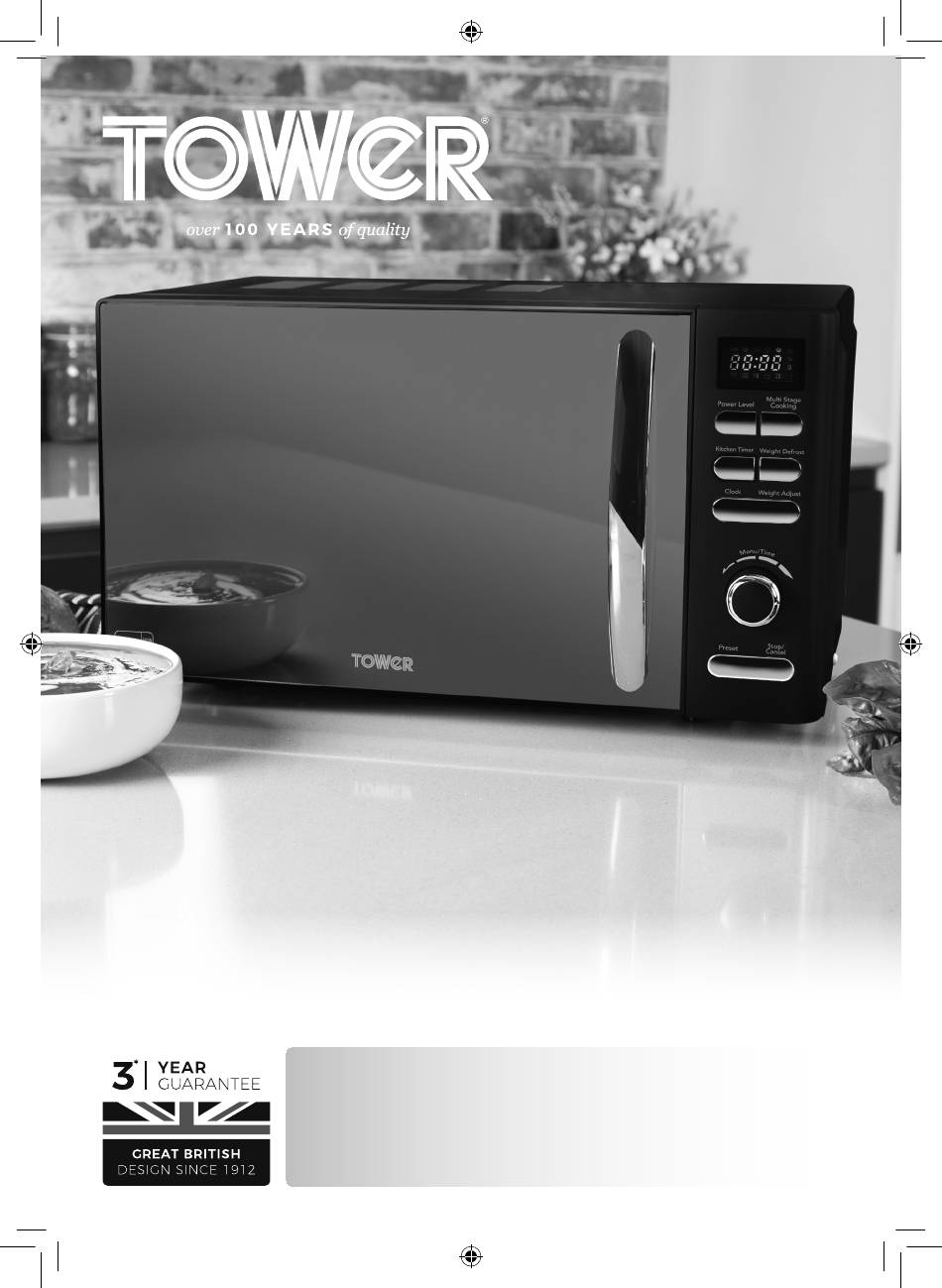

- Page 1 T24019 800W Digital Microwave SAFETY AND INSTRUCTION MANUAL PLEASE READ CAREFULLY *Subject to registering your Extended Guarantee online at www.towerhousewares.co.uk.
- Page 2 GREAT BRITISH DESIGN, INNOVATION AND EXCELLENCE SINCE 1912 Since the turn of the 20th century, Tower has been designing, developing and manufacturing housewares and small appliances used by millions of households throughout the UK and beyond. During the 1960s, the rise in popularity of pressure cooking saw Tower become the UK’s largest producer of pressure cookers, right through into the late 1980s.
- Page 3 Contents: Specifications Components and Thank you for purchasing this appliance from the structure Tower range. Technical data Please read this manual carefully BEFORE using the appliance for your own safety. Important Safety Information It has been designed to provide many years of trouble-free use.
- Page 4 1 - Specifications: This box contains: Instruction Manual Microwave Oven Roller Ring Glass Turntable Structure of your appliance: Oven Window Door Handle Roller Ring (inside) Control Panel Glass Turntable (inside)
- Page 5 2 - Technical Data: Description: Digital Microwave Oven Model: T24019 Rated Voltage: 230-240V Frequency: 50Hz Input Power: 1200W Output Power: 800W Microwave Frequency: 2450Mhz Documentation We declare that this product conforms to the following product legislation in accordance with the following directive(s): 2014/30/EU Electromagnetic Compatibility Directive.
- Page 6 Important Safety Information: Please read these notes carefully BEFORE using your Tower appliance • • Check that the voltage Switch off at the wall of the main circuit socket then remove the corresponds with the plug from the socket rating of the appliance when not in use or before operating.
- Page 7 • • Cleaning and user DO NOT place any maintenance should object (such as kitchen not be undertaken towels, napkins, etc.) by children without between the microwave supervision. front face and the door, or allow food or cleaner • Take care when any residue to accumulate appliance is used near on sealing surfaces.
- Page 8 • sided containers with DO NOT use wooden narrow necks. Stir the containers and ceramic liquid before placing containers that have the container in the metallic (e.g. gold or microwave and again silver) inlays. Always halfway through the remove metal twist ties. heating time.
- Page 9 • • DO NOT attempt Follow exact directions deep fat frying in your given by each microwave. This could manufacturer for their result in a sudden boil popcorn product. over of hot liquid. leave the oven unattended while • If smoke is observed, corn is being popped.
- Page 10 • • This appliance is The door or outer intended to be used in surface may get hot household and similar when the appliance is applications such as: operating • staff kitchen areas in • shops. Offices In the unlikely event and other working the appliance develops environments.
- Page 11 4 - Before First Use • Take out all of the packaging. If there is a safe film over the oven, tear it off before use. Check carefully for damage. Should you find any, immediately notify your dealer or contact our Customer Service Team. •...
- Page 12 5 - Using Your Appliance Door lock: The microwave’s oven door must be properly closed in order for it to operate. Oven window: Allows users to see the contents at any time. Roller ring: The glass tray sits on its wheels; it supports the glass tray and helps it to balance when rotating.
- Page 13 Control Panel Operation Menu action screen Kitchen timer Cooking time, power, The timer functions action indicators, and independently, even clock time are displayed. while a cooking program is in process. Power Level Use to select the cooking Preset power level. Use to set the oven to start at a later time.
- Page 14 Microwave Cooking Power: Press the Power button multiple times to reach the required power setting. There are six power settings, as follows: Setting Power Press the power button 100% microwave power. Applicable for Once quick and thorough cooking 80% microwave power. Applicable for Twice medium express cooking 60% microwave power.
- Page 15 Auto Cook: With the Auto Cook function you do not need to program the microwave power or set the timer. You are only required to select the type and weight of the food. To use Auto Cook: Turn the Menu/Time dial to the required food/cooking mode. Press the Weight Adjust button to the required weight.
- Page 16 Multi-Stage Cooking: Some recipes may require setting a two stage cooking program with different power levels. Touch Stop/Cancel to reset the system. Input the microwave cooking program. Press the Multi Stage Cooking button. Input the second microwave cooking program. Touch the Start/Quick Start button. Note: You may need to turn over the food half way through the operation.
- Page 17 Utensils guideline: It is strongly recommended to only use containers which are suitable and safe for microwave cooking. Generally speaking, containers made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use metal containers for microwave cooking and combination cooking as sparks are likely to occur and there is a risk of fire or injury.
- Page 18 Cooking tips: The following factors may affect the cooking result: Food arrangement: Place thicker areas towards the outside of the dish with the thinner parts towards the centre. Spread it evenly and avoid overlap if possible. Cooking time length: Begin cooking on a shorter time setting and evaluate the food after it times out. Extend the time as necessary.
- Page 19 6 - Trouble Shooting & Faq’s Questions Answers Is it normal for the Yes. The glass turntable can rotate clockwise or an- glass turntable to turn ti-clockwise, depending on the rotation of the motor in either direction? when the cooking cycle starts. Can I operate my No, never run it empty or with a very small load for a microwave whilst it is...
- Page 20 7 - Servicing safeguards - Microwave radiation It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. The temperature of accessible surfaces may be high when the appliance is operating.
- Page 21 8 - Recycling DISPOSAL OF THE UNIT Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items.
- Page 22 9 - Cleaning & Care • The microwave should be cleaned regularly and any food deposits removed. • Remove the power cord from the wall outlet before cleaning. Don’t immerse the appliance in water or other fluids when cleaning. • Failure to maintain the microwave in a clean condition could lead to deterioration of the surface.
- Page 23 10 - Wiring Safety for UK Use Only Earth Fuse (Green/Yellow) Neutral Live (Blue) (Brown) IMPORTANT As the colours in the mains lead of this Always ensure that the cord grip is fastened appliance may not correspond with the correctly. coloured markings identifying the terminals in your plug, please proceed as follows: The plug must be fitted with a fuse of the...
- Page 24 10 - Warranty This product is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials of workmanship, the faulty products must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer.
- Page 25 11 - Your Receipt Affix your store receipt to this page for safe keeping.
- Page 26 NOTES...
- Page 27 NOTES...
- Page 28 thank you! We hope you enjoy your appliance for many years. As a thank you for purchasing one of our fantastic products, we are offering you an extra 2 years peace of mind in addition to your 1 year guarantee.. *To receive your extra 2 years guarantee, register your appliance online within 28 days of purchase by visiting: www.towerhousewares.co.uk...
