American TIM-341 Manual

2-in-1 waste oil drainer and changer
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
TIM-341
2-IN-1 WASTE OIL DRAINER AND CHANGER
Superior Technology at an Affordable Price
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the TIM-341 and is the answer not in the manual?

Questions and answers

Related Manuals for American TIM-341

Summary of Contents for American TIM-341

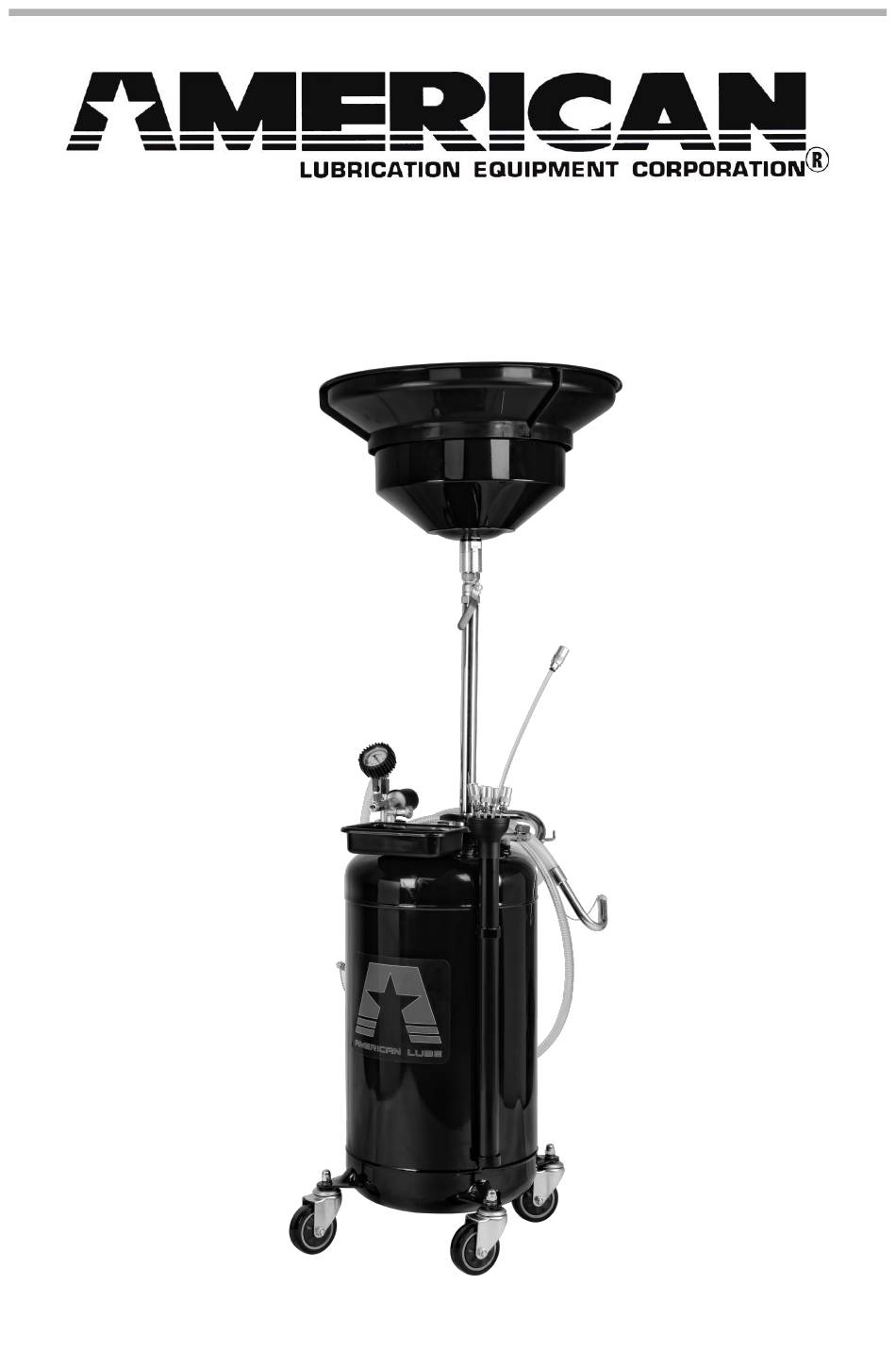

  • Page 1 TIM-341 2-IN-1 WASTE OIL DRAINER AND CHANGER Superior Technology at an Affordable Price ®...

  • Page 2: Safety Precautions

    • Only use the device for the purpose for which it has been designed • Do not modify any component of the equipment • Only use original spare parts PRODUCT DATA Item No. TIM-341 Air inlet 1/4" NPT Extension funnel Capacity 90L/24Gal •...
  • Page 3 ASSEMBLY L(open) P(open) P(closed) Suction hose L(closed) Air inlet for suction J (closed) Discharge hose K(open) J(open) K(closed) H（closed） H(open) Air inlet for I(closed) I(open) discharge...
  • Page 4 ASSEMBLY Fig.2: Assemble the vacuum gauge(D) and close Fig.1: Assemble the handle(B) and insert the the ball valve(J). probe assembly, close the ball valve(H). (close) J(close) Fig.3: Assemble the tube, oil collecting bowl, Fig.4: Insert the assembly into the reservoir, filtrating plank and extension funnel.
  • Page 5 OPERATION SUCTION Fig.5: Close all the valves (K, P, Fig.6: Connect the air supply, Fig.7: Connect the probe (S), J, H, I, L). Open the handwheel and make the vacuum gauge (F) then put it into the car engine, index reach the green area. open the ball valve (J) for (E) counterclockwise direction evacuating oil.

  • Page 6: Troubleshooting Guide

    DRAINING Fig. 11: Close the handwheel Fig.12: Connect the air supply, Fig.10: Close all the valves (K, (E) clockwise direction, put the and open the valve (H) for P, J, H, I, L ). spout (M) into the waste oil tank, draining.
  • Page 7 EXPLODED & PART LIST Mercedes Adapter Volkswagen Adapter BMW Adapter TIM-340-PRB Probe Assembly includes the following: Tubes: Q'ty 5mm OD (70cm L) plastic 5mm OD (70cm L) copper 6mm OD (70cm L) plastic 6mm OD (70cm L) copper 7mm OD (100cm L) plastic 8mm OD (70cm L) plastic Adapters: Q'ty...
  • Page 8 OIL COLLECTING BOWL ASSEMBLY & PART LIST Pos. No. Description Q'ty Pos. No. Description Item No. Item No. Q'ty Tube assembly TIM-341-TUBE Filtrating plank TIM-317-38 Ball valve TIM-317-32 Funnel extender TIM-FNL-XTND Screw TIM-317-34 Rotor TIM-317-36 Bowl supporting tube TIM-317-33 O-ring 2 per pack...
  • Page 9 RESERVOIR & PART LIST Part No. Description Item No. Q'ty Part No. Description Item No. Q'ty Reservoir assembly Not available Spring washer TIM-317-41 Handle TIM-317-20 Nuts TIM-317-6 Screw M6*8 TIM-317-17 7-10 Elbow TIM-317-7 Valve 3/4" NPT 7-11 TIM-317-11 TIM-317-8 Swivel adapter TIM-317-10 7-12 Tube with label...
