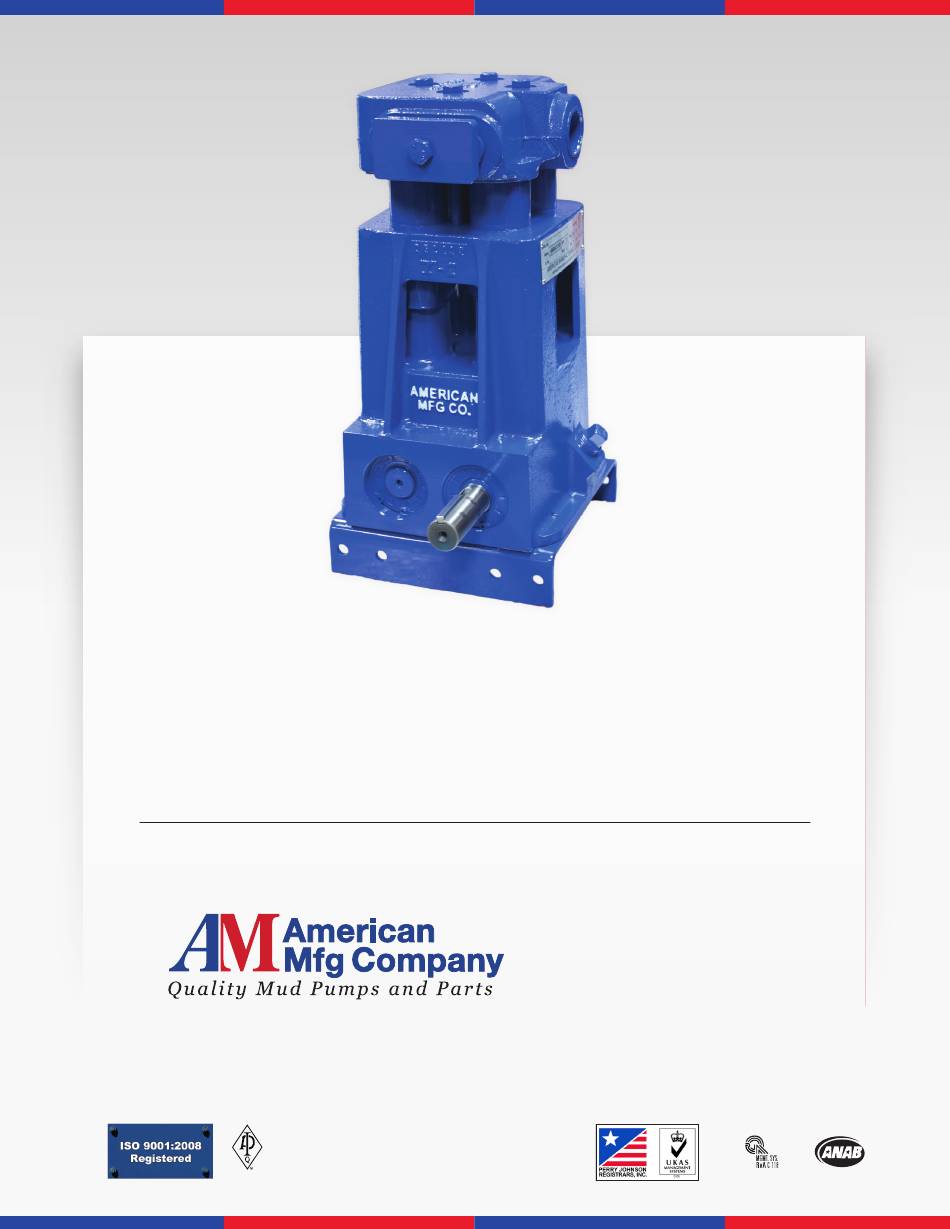

- Page 1 Pump AME0413HD Operation And Maintenance Manual Factory/Sales Office P.O. Box 640 736 19th Avenue NE St. Joseph, Minnesota 56374 (888) 299-3412 ~ Toll Free (320) 363-7273 ~ Phone (320) 363-7274 ~ Fax info@american-manufacturing.com www.american-manufacturing.com 7k-0266...
- Page 2 Operation And Maintenance Manual For AME0413HD Pump Summary: This is a manual for American Mfg Company AME0413HD vertical quadruplex piston pump with disc valves. Alternate valve seat option: The standard model AME0413HD comes with PPFMC 5260142 Valve seat, Raised face.
- Page 3 It is loaned for limited purposes only and remains the property of American Mfg Company. It may not be reproduced in whole or part or disclosed to third parties without the prior written consent of American Mfg Company. The...
-
Page 4: Table Of Contents
Table Of Contents Important Safety Instructions................AME0413HD Pump Features................Storage Instructions................... Short Term Storage................... Short Term Storage for Severe Environments............Returning a Stored Pump to Operation..............Precautions During Freezing Weather..............Installation Guidelines..................General Location....................Mounting Pump to Foundation and Power Source........... - Page 5 Table 4 Component Part List..................Table 5 Torque Values for Critical Pump Fasteners.............. Table 6 Clearance Chart....................Figure 1 AME0413HD Pump Assembly................Figure 2 Power End Components..................Figure 3 Fluid End Components..................Figure 4 Valve Seat Removal Tool..................Figure 5 Pump Mounting Dimensions................
-
Page 6: Important Safety Instructions
Observe all safety instructions on packaging. FOLLOW NORMAL ENVIRONMENTAL GUIDELINES WHEN fluids, lubricants, or solvents are disposed of or spilled. NEVER MODIFY THE PUMP to perform beyond its rated specifications without proper authorization in writing from AMERICAN MFG COMPANY. Page 6 of 38... -
Page 7: Ame0413Hd Pump Features
AME0413HD Pump Features The AME0413HD drive shaft standard end comes with 1-1/8” diameter shaft and 1/4” square keyway. Corrosion resistant disc valves are stacked in the fluid end using Polished ceramic O-ring seals for easy cylinders provide servic e unsurpassed wear and... -
Page 8: Storage Instructions
Storage Instructions Proper storage of your American Mfg Company pump will ensure that it is ready for service when needed. Follow the guidelines below that fit the requirements of your application. American Mfg Company pumps come from the factory without crankcase oil and are prepared for storage periods of up to six (6) months in proper environmental conditions. -
Page 9: Returning A Stored Pump To Operation
Once these steps have been completed, follow the normal pump start up procedures outlined in this manual. NOTE: American Mfg Company can factory prepare units for long term storage for a nominal fee if specified at the time of order. -
Page 10: Installation Guidelines
The AME0413HD pump must be mounted in a vertical position only. Secure the pump to the mounting surface using the holes provided in the pump base. The design of the AME0413HD pump allows the drive shaft to be rotated in either direction. -
Page 11: Discharge Piping Recommendations
American Mfg Company recommends that all piping be supported independently of the pump. By supporting the piping this way, vibrations are reduced and stress on the pump is kept to a minimum. The use of elbows, nipples, unions, or other fittings should be minimized. - Page 12 Never install valves in the relief valve discharge line or between the pump and relief valve. American Mfg Company recommends that the discharge be returned to the tank or drain, not back into the pump suction line.
-
Page 13: How To Start A Pump
Table 2 and that the oil has not been contaminated with water or other contaminants. NOTE: American Mfg Company pumps are shipped with no oil in the power frame and must be filled to the proper level with the proper grade of oil prior to start-up. -
Page 14: Lubrication Of Power End
Few factors can influence the life of a pump more than the power end lubricant (oil). Careful selection of the right type of oil for each particular application will help ensure optimal performance from an American Mfg Company pump. NOTE: Lubricant temperatures should not exceed 170° F (77° C) for continuous duty or 180° F (82° C) for intermittent duty applications. - Page 15 Recommended Lubricant Chart Oil Lubricant Synthetic Lubricant* Type of Ambient ISO Viscosity Manufacturer Brand ISO Viscosity Manufacturer Brand Service Temperature Grade (cSt@40 C) Viscosity Name Grade (cSt@40 C) Name Texaco ® Meropa 100 Shell ® Rotella T General 0 F to 100 F 10W-30 90.0@40 Shell ®...
-
Page 16: Inspection And Preventative Maintenance Chart
Inspection and Preventative Maintenance Chart Routine maintenance is an essential part of any successful pump installation. Properly maintained American Mfg Company pumps are designed to offer years of trouble-free service. Regular maintenance and inspection will keep your pump operating at peak performance. American Mfg Company pumps have been carefully engineered to minimize maintenance requirements and simplify these tasks when they are required. -
Page 17: Components Parts List
Component Parts List To order service parts or see exact component configurations for your particular pump, refer to the cross-section parts drawing. Contact your local American Mfg Company pump distributor or American Mfg Company if you do not have this information. -
Page 18: Power Frame Components
Power Frame Components Figure 2: Power End Components Page 18 of 38... -
Page 19: Fluid End Components
Fluid End Components Figure 3: Fluid End Components Page 19 of 38... -
Page 20: Service Procedures
Service Procedures American Mfg Company pumps are designed to simplify all required maintenance. The following sections illustrate step-by-step instructions for performing most common service procedures of a pump. Read each section before starting service work on the pump. Refer to figures 2 and 3 in section 8.0 for location of components. - Page 21 New piston cups will wear quickly if operated in cylinders with rough or grooved bores. Note: To provide maximum operational time between service, American Mfg Company recommends that all four piston cups, not just the one that shows signs of leakage, be replaced whenever piston service is required.
- Page 22 11. Place gaskets (37) and ceramic cylinder in counterbore of power frame. 12. Apply light oil or glycerin around the OD of the piston cups, then place them in the open (top) end of the cylinders. Use thumb to press the cups down firmly into the holder of each cylinder. 13.
-
Page 23: Replacing Suction And Discharge Valves
Replacing Suction and Discharge Valves 1. To access the suction and discharge valves, the valve cover clamps (29) must be removed from each side of the fluid cylinder. Remove the cap screws (30) and valve cover clamp from the each side of the fluid cylinder. - Page 24 5. Use the same procedure to remove the suction valve cage, valve disc-spring and valve seat, which are located directly under the discharge valve seat. Turning the valve seat on edge will help it go through the discharge valve seating area easier. Repeat for the remaining three (3) pump cylinders. 6.
-
Page 25: Servicing The Power End
Servicing the Power End CAUTION: Ensure that all pressure inside the pump fluid cylinder has been bled off before starting any service work. Ensure that the power to the pump is off. If applicable, it should be locked and tagged out. 1. - Page 26 7. Use snap ring pliers to remove the four crankshaft retainer snap rings (10) from each side of the pump. 8. Using a hammer and wood block (or rubber mallet) drive each crankshaft until one bearing (9, 12) on each shaft clears the power frame.
- Page 27 When piston cups are not installed the pump shaft should rotate freely. See Table 2 in section 6.2 for oil type and filling instructions. NOTE: The AME0413HD pump models require 1 quart (0.95 liters) of oil. Page 27 of 38...
-
Page 28: Fastener Torque Requirements
10.0 Fastener Torque Requirements NOTICE: No pump service procedure is complete without applying the proper fastener torque. Failure to properly tighten the pump bolts could cause the pump to leak or possibly allow the pump to fail. Always use a calibrated torque wrench during the installation of all critical fasteners listed in Table 5 below. -
Page 29: Critical Clearances
11.0 Critical Clearances When maintenance requiring disassembly of the power end is performed, the following clearances should be checked to see if they are within factory specification or within maximum allowable limits. Additional clearance is allowed for component wear. This additional clearance is a maximum of .002 inches of total diametral wear that can be added to the clearance values in Table 6. -
Page 30: Trouble-Shooting Pumps
12.0 Trouble-Shooting Pumps This chart is designed to aid in the solution of pump and pump system problems. Once the problem has been identified, work through the possible causes and solutions until the problem has been corrected. Symptom Possible Cause Possible Solution No flow from •... - Page 31 Symptom Possible Cause Possible Solution Pump runs • Broken or weak valve spring • Replace disc and spring assembly rough, • Valve damaged or unseated • Repair/replace valve or re-seat knocks, or vi- • Loose plunger, piston, or rod • Tighten loose components brates (ONLY) •...
- Page 32 Symptom Possible Cause Possible Solution Crankshaft • Drive belts loose and slipping (if equipped) • Correctly adjust belt tension jerks or • System relief valve pressure set too high • Reduce relief valve pressure setting starts and • Discharge line blocked or partially blocked •...
-
Page 33: Ordering Parts
13.0 Ordering Parts Service parts are available through American Mfg Company ’s worldwide network of distributors or from the original supplier. If unsure where to purchase parts, contact American Mfg Company customer service for the location of an authorized parts retailer in your area. -
Page 34: Pump Mounting Dimensions
14.0 Pump Mounting Dimensions 7.45 [189] 3.69 [94] 1-1/4 NP T 3/4 NP T SUCTIO N DISCHARGE 1.500 [38] 8.86 [225] DRIVEN DRIV E CRANK CRANK 8X .438 [Ø 11.11] 2.86 [73] 2X 2.19 [56] 2X 3.75 [95] 4.72 [120] 1.12 [29] 3.86 [98] 12.0 [305]... -
Page 35: Glossary Of Commonly Used Terms
15.0 Glossary of Commonly Used Terms CAPACITY -- The total volume throughput per unit of time at suction conditions. It includes both liquid and any dissolved or entrained gases. For all practical purposes this can be considered the volume flow rate in the suction pipe. - Page 36 All require a driver with a rotating shaft, such as a motor or engine, as a power source. PUMP VALVE -- A check valve that allows flow of liquid in one direction. American Mfg Company pumps have a series of two valves, one suction (inlet) and one discharge, per pumping cylinder.
-
Page 37: Reference Information
16.0 Reference Information Use the following section to record key information about your specific pump model. Information such as part and serial numbers will be needed when ordering service parts. This data may be found stamped on the metal nameplate located on the pump power frame. This area may also be used to make notations about special parts, procedures, phone numbers, or other important information related to your pump. -
Page 38: Maintenance Log
17.0 Maintenance Log Date Service By Service Performed Remarks Page 38 of 38...
