NuTone 192 Specification Sheet

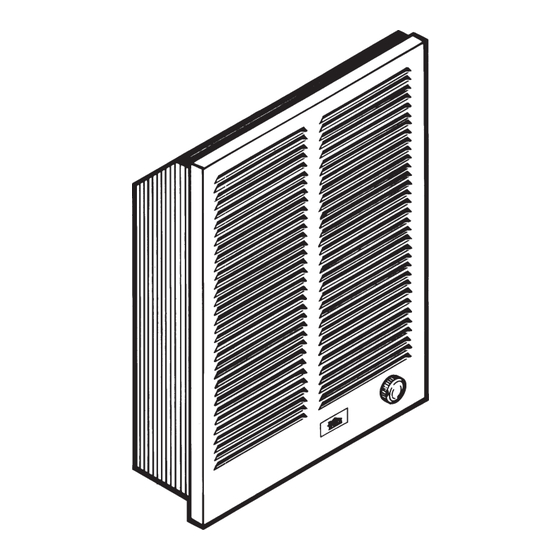

HIGH-CAPACITY
WALL HEATERS
MODELS 192, 194 & 198
Powerful and reliable for commercial uses yet
good looking enough to blend with residential
decors.
FEATURES
GRILLE:
•
One-piece, heavy-duty 18 gauge steel with downflow
louvers
•
White, baked enamel
•
Front-mounted thermostat
•
Color coordinated thermostat knob
•
Thermostat security cover – prohibits tampering
HEATER ASSEMBLY:
•
Heating Element: Heavy-duty sheath element with steel-
plate fins
•
Thermostat: Snap-action heavy-duty disc-type
•
Motor: Permanently lubricated (Models 192 & 194);
Totally enclosed, permanently lubricated (Model 198)
•
Thermal Overload: Manual reset protector
•
Fan delay prevents cold air delivery as element heats up
and provides warm air delivery as element cools down
•
Operates on 240 VAC or 208 VAC
•
Factory-wired wattages (easy field conversion to half-
wattage): 2000W (Model 192); 3000W (Model 194);
4000W (Model 198).
HOUSING:
•
Sturdy, 22 gauge steel construction finish with black,
epoxy paint
•
Mounts directly to wall studs in new or existing construction
•
Furnished with a housing mask – prevents construction
damage to roughed-in units
•
Can be recess or surface mounted (surface mounting
requires Model 85 Kit)
Broan-NuTone LLC, 926 West State Street, Hartford, Wisconsin 53027 (1-800-637-1453)
REFERENCE QTY.
ACCESSORIES: (Purchase separately)
•
Model 86W Line-Voltage Thermostat
•
Model 85 Surface Mounting Kit
•
Model 59W / 59V 60-Minute Timer (for use with Model 192
only)
•
Model 61W / 61V 15-Minute Timer (for use with Model 192
only)
TYPICAL SPECIFICATION
Heater shall be Broan Model 192 (Model 194), (Model 198).
Unit shall have steel housing finished with black, epoxy paint.
It will recess (surface) - mounted.
Heater to deliver 2000 watts (Model 192), 3000 watts (Model
194), 4000 watts (Model 198) of fan-forced heat. It must be
field-convertible to operate at half-wattage. Heater shall
include a manual reset thermal overload protector (and a fan
delay). Motor to be permanently lubricated.
Grille will be White in color and made from 18 gauge steel.
Unit to be controlled with front-mounted thermostat, Broan
Model 86W. A security cover shall be provided so tamper-
proof operation can be permitted.
Heater shall be U.L. Listed.
REMARKS
SPECIFICATION SHEET
Project
Location
Architect
Engineer
Contractor
Submitted by
50G
Date
99041274F
