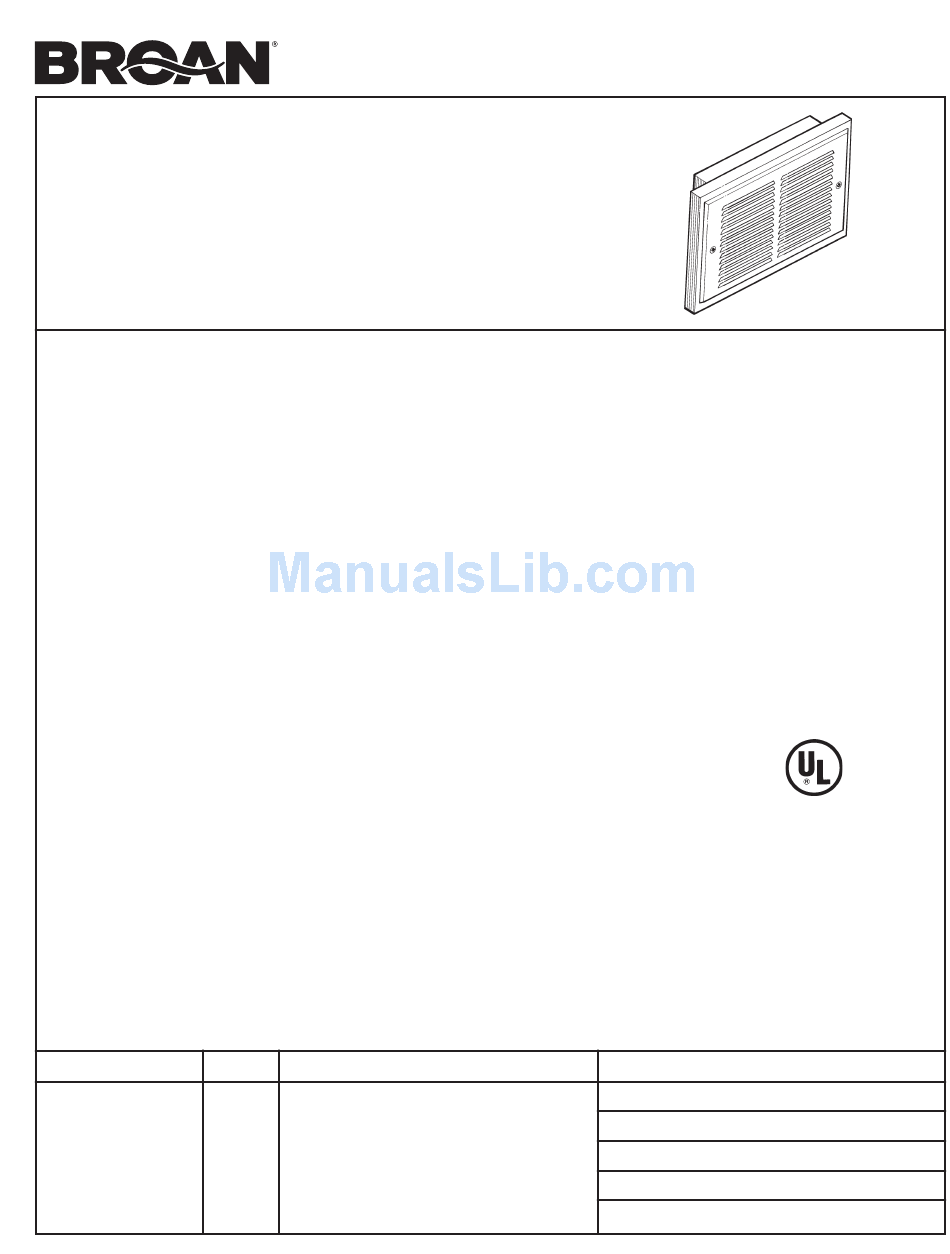

NuTone 120 Specifications

REGISTER
HEATERS
FOR IN-WALL RECESSED MOUNTING
Don't give up beautiful woodwork for baseboard
heating — Use these space-saving, downflow
alternatives.
FEATURES:
GRILLE:
Sturdy, one-piece construction
•
20 gauge, with downflow louvers
•
White, baked enamel finish
•
Color-coordinated mounting screws
•
HEATER ASSEMBLY:
Nickel-chrome resistance alloy heating element
•
Mica insulated, zig-zag element configuration
•
120 VAC units can be converted to operate on 240 VAC
•
All models can be converted to operate at half-wattage
•
Manual reset thermal overload protector
•
Permanently lubricated motor
•
High-efficiency blower wheel
•
Removable from housing for cleaning or servicing
•
HOUSING:
24-gauge steel finished with black epoxy paint
•
Removable wiring cover - connect wiring away from tight
•
corners
Mounts directly to wall studs
•
Includes housing mask - to prevent construction damage to
•
roughed-in heater
Model 171H: Rough-in housing for use with finish assemblies
ACCESSORIES: (purchase separately)
Model 86W Line-Voltage Thermostat
•
Model 59V, 59W 60-Minute Timer
•
Model 61V, 61W 15-Minute Timer
•
NOTE: This heater is intended to be used to supply supplemental
heat from a wall location in new or existing construction.
Broan-NuTone LLC, 926 West State Street, Hartford, Wisconsin 53027 (1-800-637-1453)
REFERENCE QTY.
TYPICAL SPECIFICATION
Heater shall be Broan Model 120, (124), (128).
Unit shall have steel housing finished with black, epoxy
paint. It will be recessed mounted in the wall.
Heater to deliver 1000 watts (Model 120), 1500 watts (Model
124), 2000 watts (Model 128) of fan-forced heat at safe
"black" temperatures. It must be convertible to operate at
half-wattage, 120 VAC units must be converted to operate at
half-wattage. 120 VAC units must be convertible to operate
on 240 VAC. Heater shall include a thermal overload protector
with manual reset.
Grille will be White in color, of one-piece construction and
will have downflow louvers. Color-coordinated grille screws
to be provided.
Unit shall be controlled with a wall-mounted thermostat
(Model 86W - Line Voltage Thermostat), or timer (Model 59V,
59W - 60-Minute Timer), (Model 61V, 61W - 15-Minute
timer).
Heater shall be U.L. listed.
REMARKS
SPECIFICATION SHEET
Project
Location
Architect
Engineer
Contractor
Submitted by
60K
Date
99042423E
