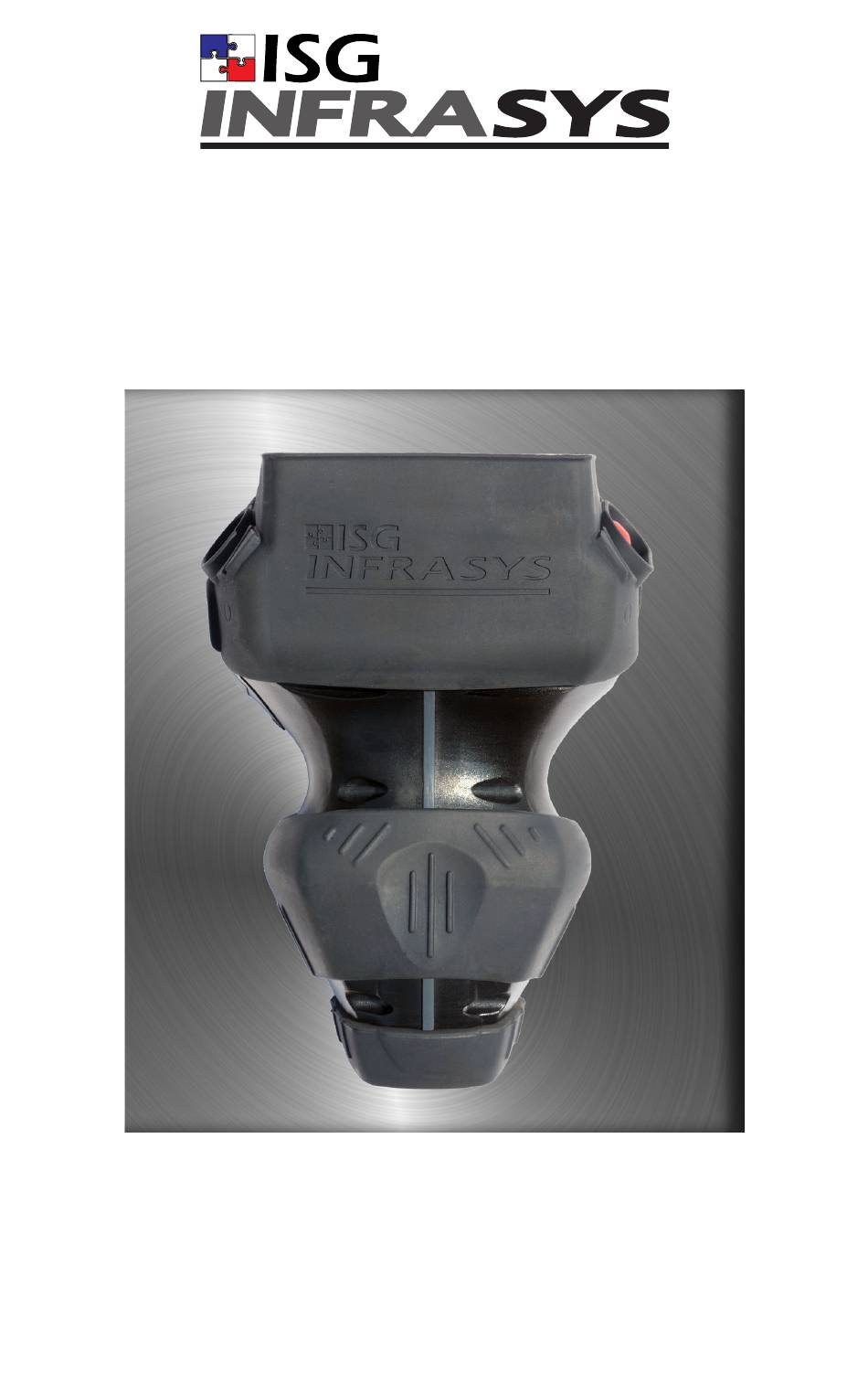

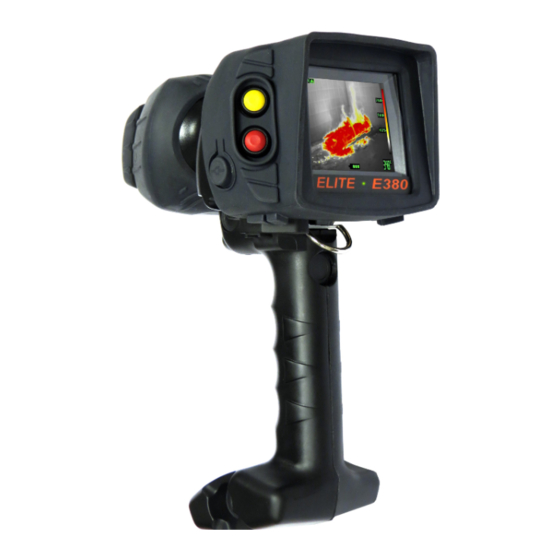

  • Page 1 E380 OPERATING MANUAL Copyright 2012 INFRARED SYSTEMS GROUP...

  • Page 2: Table Of Contents

    CONTENTS COMPANY BACKGROUND ................3 SPECIFICATIONS .................6 SYSTEM COMPONENTS ..............7 OPTIONAL ACCESSORIES ..............7 CHARGING THE BATTERIES ..............8 FITTING ACCESSORIES ..............9 OPERATOR CONTROLS ..............10 DIGITAL DIRECT TEMPERATURE ...........10 WARNING AND INFORMATION SYMBOLOGY ........10 COLOR REFERENCE BAR / HEAT INDICATING COLORATION ..12 INTELLIGENT FOCUS OVERRIDE FEATURE ........13 EMISSIVITY AND ITS EFFECTS ON DDT .........14 CLEANING AND MAINTENANCE .............16...

  • Page 3: Company Background

    E380 Operating Manual COMPANY BACKGROUND For more than eighteen years, thousands of firefighters in thousands of fire departments all across the country have come to rely on see-through-smoke technology provided by ISG / INFRASYS. ISG / INFRASYS is the world leader in the design and development of innovative thermal imaging technology for firefighters.
  • Page 4 The E380 Thermal Imager is not life support equipment and should not be used as such. All users must be thoroughly trained on the proper operation of the E380, its features and full functionality prior to use. This includes understanding thermal images and how they are interpreted.
  • Page 5 11. The service life of the E380 depends in part on how it is used and the environmental conditions in which it is used. Under heavy usage, or under extreme environmental conditions, the service life of the equipment may vary.

  • Page 6: Specifications

    E380 Operating Manual SPECIFICATIONS Physical Characteristics Shell Material Radel High-Heat Thermoplastic Handstrap Material Kevlar Rubber Parts Neoprene Weight 2.9 lbs with Battery Water Resistance IP 67, Immersion to 3 Feet Drop Tolerance 6 Feet Intrinsic Safety UL Class 1 Div 2 (Approval Pending)

  • Page 7: System Components

    E380 Operating Manual SYSTEM COMPONENTS Your E380 comes complete with the following: • E380 Thermal Imager • Battery • Battery Conditioning Charger • Quick Start Guide and Operating Manual (CD) • Shipping Container In the event that any of the above items are not supplied, please contact ISG / INFRASYS.

  • Page 8: Charging The Batteries

    E380. There are alignment markings located on the battery and E380 case as show in Figure A. Insert the battery into the E380 so Figure A that the alignment markings connect as illustrated below.

  • Page 9: Fitting Accessories

    E380 Operating Manual CAUTION Failure to lock the battery into place may result in the battery falling out of the camera while in use. Failure to observe these instructions may result in minor or moderate injury and/or equipment damage. FITTING ACCESSORIES 5.1 Lanyard (optional)

  • Page 10: Operator Controls

    E380 Operating Manual OPERATOR CONTROLS 6.1 Switching the Thermal Imager On/Off To switch the unit On, press and release the GREEN power button. Upon power up a GREEN LED will illuminate below the bottom of the display. To switch the unit Off, press and hold the GREEN power button.
  • Page 11 Failure to observe any of the low battery warnings and egress to a safe location upon notification, could result in death or serious injury. Overheat Indicator 8.2 Overheat Warning The E380 is equipped with an internal electronics overheat indicator, . See illustration. This indicator will activate when internal electronics have reached temperatures beyond their safe operating range.

  • Page 12: Color Reference Bar / Heat Indicating Coloration

    E380 Operating Manual COLOR REFERENCE BAR / HEAT INDICATING COLORATION The E380 is equipped with heat-indicating colorization and a color reference bar. Heat-indicating colorization overlays over the thermal images and is designed to assist users approximate the relative temperature of objects in the scene.

  • Page 13: Intelligent Focus Override Feature

    E380 will automatically select what it thinks is the most appropriate sense mode - unless a firefighter forces the E380 to select a different sense mode than what it automatically selected. The firefighter selects a sense mode by merely pointing the camera’s crosshair.

  • Page 14: Emissivity And Its Effects On Ddt

    The better the characteristic to absorb heat (the higher the emissive value), generally the more accurate the temperature reading. The DDT installed in the E380 assumes an emissivity of 0.95. That is, for objects with emissivity of 0.95, the DDT will return temperature readings accurate to within 10% of the actual temperature.
  • Page 15 E380 Operating Manual Actual vs. Displayed Temperatures for Differing Emissivity Temperature of Surrounding 70°F Displayed temperature, deg F 1000 1187 1373 1736 2093 1084 1388 1688 -110 1211 1481 -155 1096 1348 0.5 -172 1013 1250 1175 1114 1063 1019 11.1 Typical Emissivity Values...

  • Page 16: Cleaning And Maintenance

    11. Inspect the mechanical hardware to make sure no screws have loosened or are missing. 12. Store your E380 in its optional truck mounted charger, or in the delivery case provided. 13. The thermal imager should be cleaned using warm soapy water and nonabrasive cleaners.

  • Page 17: Service Procedure

    E380 Operating Manual 13. SERVICE PROCEDURE Should any ISG / INFRASYS Thermal Imager or any of its accessories, need repair, refer to the instructions below. Note: Prior to returning the thermal imager, the device should be fully decontaminated. ISG / INFRASYS reserves the right to send the unit back to the user for decontamination.

  • Page 18: Warranty Information

    E380 Operating Manual 14. WARRANTY INFORMATION ISG /INFRASYS warrants the E380 thermal imager to the original owner to be free of defects in material and workmanship under intended use and service for one year from the date of purchase. ISG / INFRASYS’ obligation under this warranty is limited to the replacement or repair, at ISG / INFRASYS’...
  • Page 19 E380 Operating Manual NOTES Copyright 2012 Infrared Systems Group...
  • Page 20 All Rights Reserved ISG / INFRASYS 305 Petty Road Lawrenceville, GA 30043 Toll Free: (877) 733-3473 Fax: (678) 442-1295 Web: www.isgfire.com Email: info@isgfire.com Issue E38020121QA...
