- Page 1 USER MANUAL MD HD EASY TWIN 122013 DIGITAL MODULATOR WITH 2 INPUTS ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (España) Teléfono: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
USER MANUAL MD HD EASY TWIN TABLE OF CONTENTS Introduction: ..............................................3 Description: ............................................3 Key features: ............................................3 Packaging content: .......................................... 3 INTERFACES, DISPLAY INFORMATION AND CONNECTION: ......................4 Interfaces: ..............................................4 Display information......................................... 4 Installation diagram: ........................................5 Basic programming using buttons: .................................. -
Page 3: Introduction

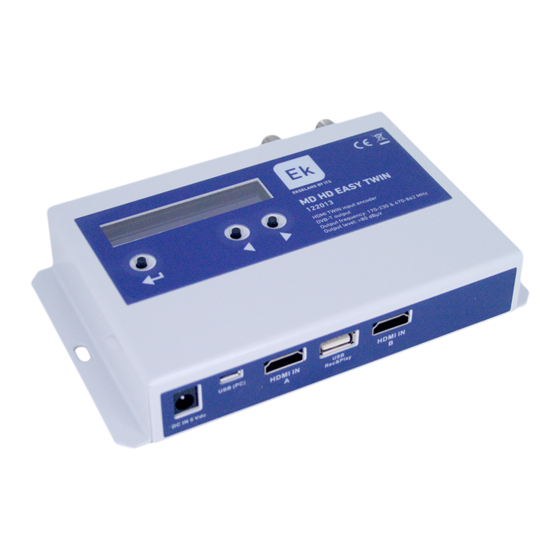

USER MANUAL MD HD EASY TWIN Introduction: Description: Double HD digital modulator 2x HDMI to COFDM. 2 HDMI input. USB 3.0 input PLAY & REC. Output frequency: 170-230 MHz + 470-862 MHz. Output level (DIN 45004B): >85dBμV. RF mix input. •... -
Page 4: Interfaces, Display Information And Connection
USER MANUAL MD HD EASY TWIN INTERFACES, DISPLAY INFORMATION AND CONNECTION: Interfaces: 1 -Buttons. 2 -Display. 3.-RF output. 4.-RF input. 5.-Power adapter input (5Vdc). 6.-A-Type USB input for programming. 7.-HDMI “A” Input. 8.-B-Type USB input for memory stick. 9.-HDMI “B” Input. Display information. -
Page 5: Installation Diagram
USER MANUAL MD HD EASY TWIN Installation diagram: 1 -Keys for configuring. 2 –Display. 3.-RF out. 4.-RF in for combining signal. 5.-Connect external power supply. 6.-Connect to the PC if necessary to configure with the MD HD SOFT application. 7.-Connect signal modulated as "A". -
Page 6: Basic Programming Using Buttons
USER MANUAL MD HD EASY TWIN Basic programming using buttons: There are two menus for the settings of the modulator. • Quick menu: It allows a fast set up of the modulator , , . • Advanced menu: It allows to perform advances settings. Press , , . - Page 7 USER MANUAL MD HD EASY TWIN YES (access the following submenus) NO (we do not access the menus) Value from 0 to 31. Modify the network ID. Modify the original NET ID. “Logic Channel Number" is used to automatically sort all channels by TV set, reordering them at the same time as we search.
- Page 8 USER MANUAL MD HD EASY TWIN YES (access the following submenus) NO (we do not access the menus) Input channel identifier B. Note that THE PROGRAM IDs within the same modulator must be different. Input program name B. Logical Channel Number is used to set an specific order when an automatic sort of all channels in TV sets is required.
-
Page 9: Advanced Programming Using Md Hd Soft
USER MANUAL MD HD EASY TWIN Advanced programming using MD HD Soft Configurable parameters and options • For advanced programming, download the "MD HD Soft" Software from the website www.ek.plus. • Connect modulator and computer using a USB cable (Type A/ Type B). RF Parameters. - Page 10 USER MANUAL MD HD EASY TWIN Creating a Playlist or Recordlist. As the device can be connected to an external USB memory stick and keeps the time, events of recording and playing can be programmed: Select initial and final date and time Select the days of the week.
- Page 11 USER MANUAL MD HD EASY TWIN Recording and playing by front buttons The modulator allows recording and playing .ts files with the support of a USB memory stick. The selection of the files can be done both by using the front buttons or by “MD HD Soft” software. The use of the USB port is priority over the HDMI A input.
-
Page 12: Using The Usb Memory
USER MANUAL MD HD EASY TWIN USING THE USB MEMORY • The modulator allows recording and playing .TS files. • TS files must be stored on a USB 3.0 memory with FAT32 files system. • The "EK Converter" software can be found on the website https://ek.plus/software/. This converts the most common video and image formats to .TS format. -
Page 13: Technical Specifications
USER MANUAL MD HD EASY TWIN Technical specifications REFERENCE MD HD EASY RC Code 122013 Inputs 2x HDMI (A /B) VÍDEO Video resolution 480p - 576p - 720p - 1080p Video compression H.264 Vídeo rate Kbps 500-15000 AUDIO Audio compression MPEG1-L2, AAC-LC Audio rate Kbps... -
Page 14: Frequency And Channels Table (Standard B/G)
USER MANUAL MD HD EASY TWIN Frequency and channels table (Standard B/G) • Band III. 7MHz Bandwidth • Band IV - V. 8MHz Bandwidth BAND Channel Start Freq. End Freq Central Freq 174 MHz 181 MHz 177,5 MHz 181 MHz 188 MHz 184,5 MHz 188 MHz... - Page 15 USER MANUAL MD HD EASY TWIN BAND Channel Start Freq. End Freq Central Freq 606 MHz 614 MHz 610 MHz 614 MHz 622 MHz 618 MHz 622 MHz 630 MHz 626 MHz 630 MHz 638 MHz 634 MHz 638 MHz 646 MHz 642 MHz 646 MHz...
