LAIA B&H Talk User Manual

Hide thumbs Also See for Laia B&H Talk:

Advertisement

Quick Links

Download this manual
Laia B&H Talk
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Laia B&H Talk and is the answer not in the manual?

Questions and answers

Related Manuals for LAIA Laia B&H Talk

Summary of Contents for LAIA Laia B&H Talk

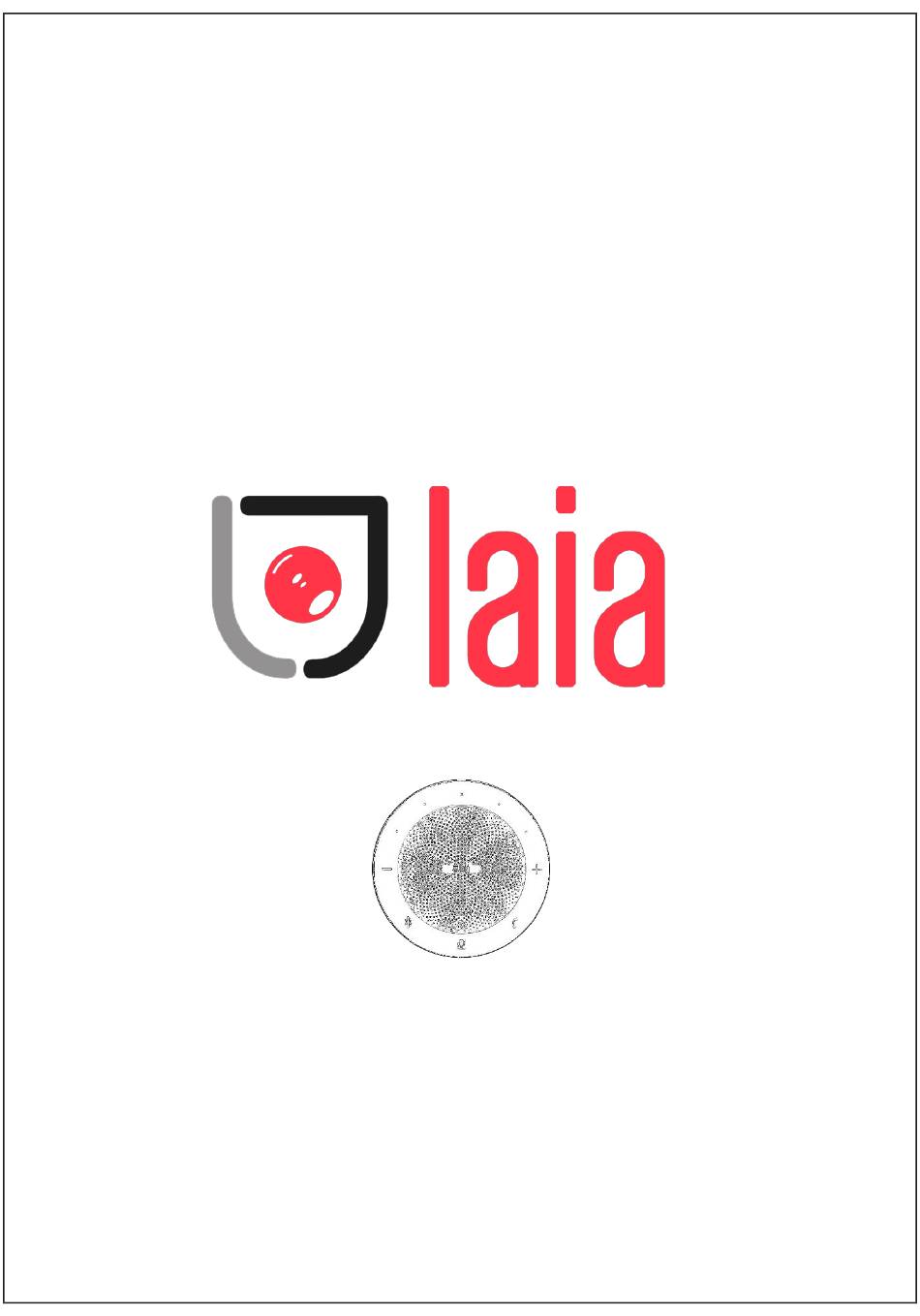

  • Page 1 Laia B&H Talk User Manual...
  • Page 2 Note: All the pictures in this manual are for reference only, please refer to the actual product.

  • Page 3: Table Of Contents

    Contents 1. Important Information ......1 2. Safety Warnings and Precautions ....2 3. Special statement ......8 4. Product Appearance ....... 15 5. Product Usage ......17 6. Common faults and troubleshooting ... 29 7. Key Specifications ......33...

  • Page 4: Important Information

    Important Information This manual Contains the precautions and the product usage. Please read and understand all the instructions before using the device. The damage caused by failure to follow the instructions is not covered by the warranty. Please keep this manual properly.

  • Page 5: Safety Warnings And Precautions

    Safety Warnings and Precautions 2.1. Be careful of electric shock or fire! This device is not waterproof, please keep it 2.1.1. dry; if water is immersed in this product, please shut down immediately and contact the customer service centre according to the prompt provided by the customer service centre before using it again.
  • Page 6 This device should be turned off and 2.1.3. unplugged before lightning storms. 2.2. Be careful of short circuit or catching fire! Before connecting this device to an 2.2.1. electrical outlet, please make sure that the power supply voltage matches the voltage value printed on the back or bottom of the product.
  • Page 7 Never place this device or any objects on a 2.3.1. power cord or other electronic devices. If this product is transported at a temperature 2.3.2. below 5℃, please unpack the product and wait until the temperature reaches room temperature before connecting it to a power outlet.
  • Page 8 internal parts of the product! 2.4. Be careful overheat! Never install this device in an enclosed space. 2.4.1. Always leave at least 4 inches space around the product for ventilation. 2.5. Children's health 2.5.1. This device and accessories may contain some small parts, please keep them out of the reach of children to avoid danger.
  • Page 9 high-performance materials and components. Never dispose of this product with other 2.6.2. household wastes. Please understand the local regulations on the sorting collection of electronic, electrical products and batteries. 2.6.3. Proper disposal of these products helps to avoid potential negative effects on the environment and human body health.
  • Page 10 microfiber cleaning cloth. 2.8. Maintenance & servicing Please contact professional service 2.8.1. personnel for all repair services; Please do not insert any sharp object into the 2.8.2. inside of the device; Please do not drop or hit the device to avoid 2.8.3.

  • Page 11: Special Statement

    FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 12 compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 13 harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
  • Page 14 -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This symbol, affixed to the product or its packaging, indicates that the product must not be processed with househlod waste.
  • Page 15 be brought to an electric and electronic waste collection point for recycling and disposal. By the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources.
  • Page 16 Special statement 4.1. Intellectual property statement: the hardware design and software programs of this product are copyright protected. Anyone copying the contents of this product and instructions without the authorization of this company will bear the corresponding legal responsibilities. 4.2. This manual is for reference only. The actual final functions are subject to the actual ordering of the customer and the actual functions of the product received.
  • Page 17 4.3. The pictures are for reference only, please refer to the actual product. The company reserves the right to make improvements on and changes to the product appearance and design without prior notice. Bluetooth words and trademarks are owned by Bluetooth SIG, Inc.

  • Page 18: Product Appearance

    Product Appearance...
  • Page 19 a. Type-C port b. 4-section 3.5 mm audio input/output hole c. Volume down Button d. Bluetooth Button e. Microphone mute Button f.Answer/hang up Button g. Volume up Button h. Power Button...

  • Page 20: Product Usage

    Product Usage 6.1. Turn on/off the device Long press and hold the power key for 2 seconds to turn on or off the device. 6.2. Bluetooth When Bluetooth is not connected, long press 6.2.1. to turn Bluetooth on/off; When Bluetooth is connected, long press to 6.2.2.
  • Page 21 Mode 1: Connect the computer/conference 6.3.1. plat (Windows or Mac) to this device via USB cable. Mode 2: Connect this device with the original 6.3.2. AUX audio cable (4 sections). Mode 3: Connect this device with Bluetooth. 6.3.3. The Bluetooth indicator will flash to indicate that the device is in Bluetooth pairing state.
  • Page 22 device list. Please refer to the nameplate at the bottom of the device for the name of bluetooth (when the conference panel is connected to the wireless omnidirectional mic speaker, USB bluetooth adapter is required to ensure the stability of bluetooth connection) Mode 4:USB Bluetooth audio adapter 6.3.4.
  • Page 23 into the computer, and turn on the device to enter the Bluetooth pairing status (If you use a USB Bluetooth adapter to connect to the conference plat, please connect it to the front-mounted USB port of the conference plat to ensure best use effect);...
  • Page 24 If it is necessary to re-pair the USB Bluetooth audio adapter to the new wireless omni-directional speaker, the distance between the USB Bluetooth audio adapter and the wireless omni-directional speaker should be controlled within 3 meters. When Bluetooth is disconnected from the wireless omni-directional speaker, long press and hold the Bluetooth key for 9 seconds to enter the binding mode.
  • Page 25 plugging the USB Bluetooth audio adapter, the USB Bluetooth audio adapter will be rebound successfully within 30 seconds. Note: to connect computer/conference plat with USB Bluetooth audio adapter, it is necessary to set this device as the default playback and recording device in the computer/conference plat sound setting interface.
  • Page 26 Bluetooth and audio ports. It can work in three connection modes at the same time so as to support simultaneous access of multiple parties for the conference. 6.5. Answer/hang up call *This device can only use the function of answering and hanging up the phone when connecting to the phone.
  • Page 27 hang up the call. When there is an incoming call, long press 6.5.3. and hold the“ ”key for 3 seconds to reject the call. 6.6. Mute microphone When the device is connected to Bluetooth or plugged into a AUX audio cord or USB cord, short press the microphone mute key to turn the microphone on or off.
  • Page 28 increase or decrease the volume accordingly. 6.8. Bluetooth status/Settings Status Indicator State This state is status descriptio actionable Blue Waiting Long press the lights bluetooth button flashing bluetooth 3s to enter S4; connection Long press the bluetooth button 9s to enter S3...
  • Page 29 Blue Bluetoot h Long press light is connected bluetooth button always 3s to enter S1 White Repair Long press lights status bluetooth button flashing with USB 3s to enter S1 bluetooth adapter White Bluetooth Long press the light is bluetooth button...
  • Page 30 always function 3s to enter S1 turned off 6.9. Charging the Device Connect the original power adapter(5V/2A) 6.9.1. with USB cable for charging. Use the selected wireless charger to charge 6.9.2. the device (this device has the wireless charging function. In order to ensure the charging quality and charging safety, it is suggested that you purchase this wireless charger via proper channel).
  • Page 31 When charging, the white indicator of the 6.9.3. power key will flash; when fully charged, the green indicator of the power key will be normally on. 6.10. Checking the battery In the power-on state, short press the power key to view the current remaining electric quantity.

  • Page 32: Common Faults And Troubleshooting

    Common faults and troubleshooting The following table contains common faults and their solutions. Please read it carefully. Fault Possible Solution Cause Unable to Low or no Connect the turn on the electricity adapter to device charge Shut down Insufficient Connect the automaticall electric adapter to...
  • Page 33 running for a while No sound Is the Select the connection correct sound correct? Is the source input; volume turned adjust the device...
  • Page 34 Is there any Please use the Unable work with mistake in original USB using the USB cable to make a cable? call. Unable to Is there any Please use the work with mistake in original AUX using the AUX cable (4 cable? sections) to make a call.
  • Page 35 Invalid key Long press and hold the be accidentally power button touched. for 8seconds to reset the system. Unable to The charging Replace it with charge the device is in a charging device fault or the device with battery is normal already full.

  • Page 36: Key Specifications

    Key Specifications Frequency band(s)::2402-2480MHz(BT) Maximum power transmitted: 13dBm...
