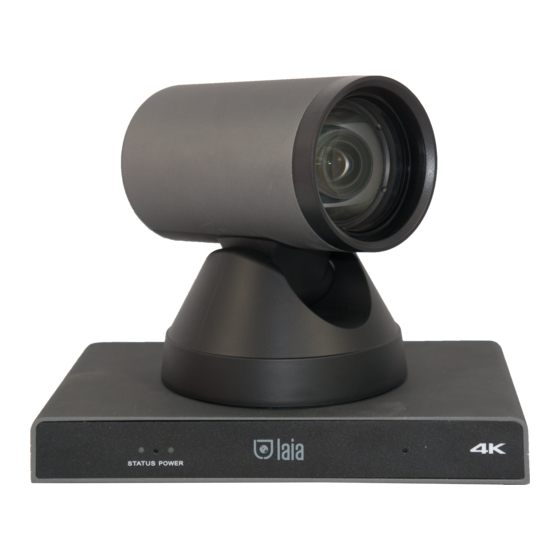

CUTE 4K
User Manual
Copyright Notice
All contents of this manual, whose copyright belongs to our Corporation cannot be cloned, copied or
translated without the permission of the company. Product specifications and information which were
referred to in this document are for reference only. We may change, delete, or update any content at
any time and without prior notice.
============================================================================
This is class A production. Electromagnetic radiation at specific frequencies may affect the image
quality of TV in home environment.
Copyright © 2019 Laia · www.laiatech.com
All rights reserved
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LAIA CUTE 4K
Summary of Contents for LAIA CUTE 4K
- Page 1 We may change, delete, or update any content at any time and without prior notice. ============================================================================ This is class A production. Electromagnetic radiation at specific frequencies may affect the image quality of TV in home environment. Copyright © 2019 Laia · www.laiatech.com All rights reserved...
-
Page 3: Table Of Contents
Catalogue Note ........................1 Packing List ......................1 Quick Start ......................2 System Select Video Format................... 3 About Product ......................3 Features ..........................3 Product Specification ......................4 Interfaces and Buttons ......................5 Dimension ........................... 5 Remote Control ........................6 RS-232 Interface ......................... - Page 4 Audio Settings ........................18 7.6.5 System Settings ....................... 19 7.6.6 Network Settings ......................19 7.6.7 Device Information ......................21 Download the Network Upgrade Program ................21 Maintenance and Troubleshooting ................ 21 Copyright © 2019 Laia · www.laiatech.com All rights reserved...
-
Page 5: Note
Don’t touch camera lens by hand. Mechanical RS232 Cable damage may be caused by doing so. Remote Control Do not use in corrosive liquid, gas or solid User Manual environment to avoid any cover (plastic Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 6: Quick Start
3) After the camera is powered on, it starts to initialize, right up to the limit position, and then both horizontal and vertical go to the middle position, the motor stops running, and the initialization is completed. (Note: If preset 0 is saved, PTZ will be move to preset 0) Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 7: System Select Video Format
SNR of image is as high as 55dB. Remote Control Through the RS232 and RS485 serial ports, the camera can be controlled remotely. Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 8: Product Specification
±30° Interface 1 x RS232 IN: 8pin Min Range DIN, Max Distance: 30m, Pan Speed 1.54° ~ 82°/s Protocol: VISCA / Pelco-D / Range Pelco-P Tilt Speed 0.43° ~ 42.7°/s Range Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 9: Interfaces And Buttons
-40°C ~ 60°C Temperature Power 7.32W (Max) Consumption ＞30000h MTBF Size 200 x 129 x 161mm Net Weight 1.35Kg 5.3 Interfaces and Buttons Item Name System Select Switch Network Interface RS232 OUT Interface Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 10: Remote Control
Set preset: Store a preset position. 14. PTZ Control Key [SET PRESET] + Numeric button (0-9): Press arrow buttons to perform panning and Setting a corresponding numeric key preset tilting. Press [HOME] button to face the Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 11: Rs-232 Interface
Mini DIN pin: [*]+[＃]+[8]: Look the camera version [*]+[＃]+[9]: Quickly set up inversion Camera Mini DIN 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.NC 8.NC 8.NC Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 12: Visca Network
At this point, the user can use the serial port command to control the camera. List of protocols (omitted) The serial port of the camera follows the VISCA/Pelco-D/Pelco-P standard protocol. If Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 13: Gui Settings
Average Select Item Change Value [Menu] Back Mode: Exposure mode, optional items: Auto, Manual, SAE, AAE, Bright. ExpCompMode: Exposure the compensation mode, optional items: On, Off (Effective only in Auto mode). Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 14: Color
(Effective only in Manual mode). Style: Optional items: Norm, Clarity (LED), colortemp: Optional items: 2500K ~ 8000K Clarity, Bright, PC, Custom. (Effective only in VAR mode). LDC: Optional items: Off, -10 ~ +10. Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 15: P/T/Z
Call Preset Speed: Optional items: 1 ~ 24. Russian. Pre Zoom Speed: Optional items: 0 ~ 7. DVI Mode: Optional items: DVI, HDMI. USB Mode: Optional items: ISOC, BULK. ID CONF: Optional items: 1 ~ 2. Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 16: Communication Setup
2400, 4800, 9600, 38400. 6.9 RESTORE DEFAULT Move the main menu cursor to [RESTORE DEFAULT], and press [HOME] key enter the restore default page, as shown in the following figure. RESTORE DEFAULT Restore? Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 17: Network Function
Connect by Switch/Router login window pop up, input username: admin, password: admin, shown as below: 7.4 IP camera controlled by LAN 7.4.1 Setup IP address Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 18: Ip Camera Controlled By Wan
“Ctrl + N”; as below: number in “Ext Port”, add a new port number in “Int port”, put camera IP address to “Internal IP”, then select “Save”, shown as below: Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 19: Ip Camera Parameter Setup
3) Full screen switch button. RTSP port number default 554. If the camera port default is 80, then unnecessary to input port number of URL address. Copyright © 2019 Laia · www.laiatech.com All rights reserved... - Page 20 Type a number between 0 and 254 into the Preset box. Copyright © 2019 Laia · www.laiatech.com All rights reserved...
-
Page 21: Video Settings
3) Encode Protocol Restrain the fluctuation magnitude of variable rate, grade 1 ~ 6. Support H.264, H.265 and MJPEG three 10) Slice Split Enable formats. Enable or disable slice split function. Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 22: Image Settings
Sharpness 0 ~ 15, slider control, on the right 8) Input Vol R shows the corresponding numerical. The volume of the right channel. Default value is 1. 9) ADTS Options 5) Hue Copyright © 2019 Laia · www.laiatech.com All rights reserved... -
Page 23: System Settings
The default work mode is RTSP. Optional items: RTSP, SDK, Multicast. 2) Reboot Click the “Reboot” button, system restart. 3) Username and password The user can modify the password (letters and Numbers only). 7.6.6 Network Settings Copyright © 2019 Laia · www.laiatech.com All rights reserved... - Page 24 When port mapping, need to be consistent with the port number (default port: 80). B. RTSP Port Network camera support RTSP protocol, use the VLC tools broadcast, default port: 554. C. PTZ Port Copyright © 2019 Laia · www.laiatech.com All rights reserved...
-
Page 25: Device Information
There is no video image in IE Browser lens. If the camera is very dirty, clean it Please visit VLC website with diluted neuter detergent. Do not use (http://www.videolan.org/vlc) download Copyright © 2019 Laia · www.laiatech.com All rights reserved... - Page 26 Series port can not control 1) Check whether the camera protocol, address such is the same. 2) Check whether the control line is connected well. Copyright © 2019 Laia · www.laiatech.com All rights reserved...
