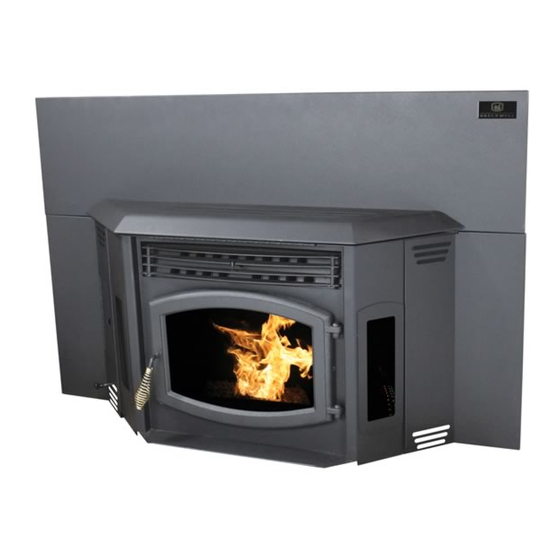

Breckwell Tradition P24FSA Owner's Manual

Tradition series
Hide thumbs Also See for Tradition P24FSA:
Table of Contents

Advertisement

Quick Links

TRADITION SERIES P24
P24FS
P24I
OWNER'S MANUAL
Warning: If your appliance is not properly installed a house fire may result. For your safety, follow
the installation directions. Contact local building or fire officials about restrictions and installation
inspection requirements in your area.
PLEASE read this entire manual before installation and use of this pellet fuel-burning room heater.
Failure to follow these instructions could result in property damage, bodily injury, or even death.
Save these instructions
PROFESSIONAL INSTALLATION IS HIGHLY RECOMMENDED
Manufactured by
National Steelcrafters of Oregon, Inc.
DBA Breckwell Hearth Products
Eugene, Oregon
BRECKWELL HEARTH PRODUCTS
Grand Prairie, Texas
C-L-060 1/04

Advertisement

Table of Contents
loading

Related Manuals for Breckwell Tradition P24FSA

Summary of Contents for Breckwell Tradition P24FSA

  • Page 1 Failure to follow these instructions could result in property damage, bodily injury, or even death. Save these instructions PROFESSIONAL INSTALLATION IS HIGHLY RECOMMENDED Manufactured by National Steelcrafters of Oregon, Inc. DBA Breckwell Hearth Products Eugene, Oregon BRECKWELL HEARTH PRODUCTS Grand Prairie, Texas C-L-060 1/04...

  • Page 2: Introduction

    Keep this manual handy for future reference. Your Breckwell P24 comes as a fireplace insert or as a freestanding stove with a pedestal. This stove has been independently tested to ASTM E1509-95 Standard Specification for...

  • Page 3: Safety Precautions

    NOT BE INSTALLED IN A BEDROOM (Per H.U.D. requirements). Check with local building officials. Breckwell Hearth Products grants no warranty, implied or stated, for the installation or maintenance of your stove, and assumes no responsibility of...

  • Page 4: Table Of Contents

    Panel Controls Opening Door Room Air Fan Re-Starting a Warm Stove If Stove Runs Out Of Pellets Damper Control Refueling Breckwell Maintenance Tool Shutdown Procedure Safety Features Optional Thermostat Thermostat Installation (Please Read This) Operating Safety Precautions MAINTENANCE Ash Removal...

  • Page 5: Specifications

    NOTE: Normally, your dealer will perform these functions. CLEARANCES The Breckwell P24 Freestanding has been tested and listed for installation in residential, mobile home and alcove applications. The P24 Insert is approved for installation into code complying masonry fireplaces, listed factory built fireplaces (UL 127), and standard residential built- ins (see As A Built-In Fireplace), including Mobile Home built-in installations, of the following description: all brands at least 36”...

  • Page 6: Combustion Air Supply

    The flashing should not necessarily seal the fireplace face. VENTING The Breckwell P24 Freestanding is certified for use with listed TYPE L-Vent, 3” or 4” diameter in size. The stove was tested with Simpson Duravent brand. Class “A” chimney is not required. Refer to the instructions provided by the vent manufacturer, especially when passing through a wall, ceiling or roof.

  • Page 7: Freestanding Installations

    Equivalent Vent Length (EVL) The longer the run of pipe in your installation (both with insert and freestanding), the more restriction there is in the system. Therefore, larger diameter pipe should be used. Use 4” pipe if you have more than 15 feet of equivalent vent length.
  • Page 8 VERTICALLY WITH NEW CHIMNEY SYSTEM (Refer to Figure 9a & 9b) NOTE: Follow L-Vent chimney manufacturer’s instructions. OPTION: To achieve a center vertical installation a 45º elbow and a clean-out tee can be used to offset the pipe from the exhaust outlet to the rear center of the stove (see figure 9a).
  • Page 9 VERTICALLY INTO EXISTING CHIMNEY SYSTEM Adapters are available to adapt from 3” L-Vent to 6” or 8” Class-A chimney. (Figure 10a) As an alternative, 3” or 4” L-Vent can be run inside existing chimney to termination. (Figure 10b) This is the preferred method. Follow guidelines for equivalent vent length.
  • Page 10 VERTICALLY INTO EXISTING MASONRY FIREPLACE NOTE: Follow L-Vent chimney manufacturer’s instructions. Have the masonry chimney inspected by a qualified chimney sweep or installer to determine its structural condition. You will need a pipe length equal to the chimney height from the hearth. If outside combustion air is to be used, you will need a pipe length equal to the chimney height plus 18 inches.

  • Page 11: Insert Installations

    “Breckwell P24 Z-C Skirt” (part # A-ZC-SKRT), or “Breckwell P24 Z-C Legs” (part #A-S-ZCLEGS), can be used to bridge the gap between the hearth and stove bottom.
  • Page 12 WHEN VENT PIPE EXTENDS TO CHIMNEY TOP (Refer to Figure 15) You will need a pipe length equal to the chimney height (from hearth) plus 6 inches. If outside combustion air is to be used, you will need a pipe length (see “COMBUSTION AIR SUPPLY”) equal to the chimney height plus 12 inches.
  • Page 13 INSTALLATION AS A BUILT-IN FIREPLACE Figures 16 and 17 describe a P24 installation vented into either a special chase built outside an outer wall or a false inside wall. This is especially suited for new construction or remodeling. The equipment compartment (sides and rear of the stove in fireplace) must be enclosed per the applicable electrical standards.

  • Page 14: Electrical Installation

    Voltage variations can lead to serious performance problems. The Breckwell electrical system is designed for 120V AC with no more than 5% variation. Breckwell cannot accept responsibility for poor performance or damage due to inadequate voltage. If connected to an older, two-prong outlet, a separate ground wire should be run to a proper ground (refer this to a qualified technician).

  • Page 15: Operation

    You will have to empty the burnpot plus vacuum the entire system more often. Poor quality pellets could damage the auger. Breckwell cannot accept responsibility for damage due to poor quality pellets. Your dealer can recommend a good quality pellet dealer in your area.

  • Page 16: Opening Door

    ON/OFF SWITCH When pushed the stove will automatically ignite. No other firestarter is necessary. The igniter will stay on for at least 10 and up to 15 minutes, depending on when Proof of Fire is reached. The fire should start in about 5 to 7 minutes. The green light located above the On/Off button (in the On/Off box) will flash during the ignition start-up period.

  • Page 17: If Stove Runs Out Of Pellets

    Scrape ashes from burnpot. SHUTDOWN PROCEDURE Turning your Breckwell stove off is a matter of pressing the “On/Off” control panel switch. The green light will go out. The blowers will continue to operate until internal firebox temperatures have fallen to a preset level.

  • Page 18: Optional Thermostat

    A thermostat may help you maintain a constant house temperature automatically. A millivolt thermostat is required. A fixed wall mount or Breckwell’s hand held model can be used. The control panel can be set up two ways to operate your stove in thermostat mode.

  • Page 19: (Please Read This) Operating Safety Precautions

    DO NOT STORE OR USE FLAMMABLE LIQUIDS, ESPECIALLY GASOLINE, IN THE VICINITY OF YOUR BRECKWELL STOVE. NEVER USE A GAS OR PROPANE TORCH, GASOLINE, GASOLINE- TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID OR SIMILAR FLUIDS TO START OR “FRESHEN UP”...

  • Page 20: Maintenance

    FAILURE TO CLEAN AND MAINTAIN THIS UNIT AS INDICATED CAN RESULT IN POOR PERFORMANCE AND SAFETY HAZARDS. NEVER CLEAN WHEN HOT. NOTE: Inspect burn pot periodically to see that holes have not become plugged, if so, clean thoroughly. ASH REMOVAL Ashes should be placed in a metal container with a tight-fitting lid.

  • Page 21: Vacuum Use

    CLEANING Heat Exchange Tubes – Your Breckwell stove is designed with a built-in heat exchange tube cleaner. This should be used every two or three days to remove accumulated ash on the tubes, which reduces heat transfer on the P24.

  • Page 22: Chimney Cleaning

    While wearing leather gloves (or any other gloves suitable for handling broken glass), carefully remove any loose pieces of glass from the doorframe. Dispose of all broken glass properly. Return the damaged door to your Breckwell Dealer for repair or replacement.
  • Page 23 MAINTENANCE FIGURE 29...

  • Page 24: Troubleshooting Guide

    TROUBLESHOOTING GUIDE When your stove acts out of the ordinary, the first reaction is to call for help. This guide may save time and money by enabling you to solve simple problems yourself. Problems can be caused by to only five factors: 1) poor fuel; 2) poor operation or maintenance; 3) poor installation;...
  • Page 25 TROUBLESHOOTING GUIDE STOVE SHUTS OFF AND THE # 3 LIGHT FLASHES Possible Causes: The hopper is out of pellets. The air damper is too far open for a low feed setting. The burnpot is not pushed completely to the rear of the firebox. The burnpot holes are blocked.
  • Page 26 TROUBLESHOOTING GUIDE STOVE FEEDS PELLETS, BUT WILL NOT IGNITE Possible Causes: Air damper open too far for ignition. Blockage in igniter tube or inlet for igniter tube. The burnpot is not pushed completely to the rear of the firebox. Bad igniter element. The control board is not sending power to the igniter.
  • Page 27 TROUBLESHOOTING GUIDE STOVE WILL NOT FEED PELLETS, BUT FUEL FEED LIGHT COMES ON AS DESIGNED Possible Causes: F2 fuse on control board blew High limit switch has tripped or is defective Bad auger motor Auger jam Loose wire or connector Bad control board Possible Remedies: Remove the control board.
  • Page 28 TROUBLESHOOTING GUIDE GLASS “SOOT’S” UP AT A VERY FAST RATE FLAME IS LAZY, DARK, AND HAS BLACK TIPS AFTER STOVE HAS BEEN ON FOR A WHILE, THE BURNPOT OVERFILLS Possible Causes: Stove or vent pipe is dirty, which restricts airflow through the burnpot.

  • Page 29: Smoke Smell Or Soot Build-Up

    SMOKE SMELL OR SOOT BUILD-UP Because it is a wood-burning device, your Breckwell may emit a faint wood-burning odor. If this increases beyond normal, or if you notice an unusual soot build-up on walls or furniture, check your exhaust system carefully for leaks. All joints should be properly sealed. Also clean your stove, following instructions in “MAINTENANCE”.

  • Page 30: Electrical Diagram

    ELECTRICAL DIAGRAM FIGURE 30...

  • Page 31: Replacement Parts List

    REPLACEMENT PARTS Contact an Authorized Breckwell Pellet Stove Dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards. ITEM Air Switch Air Switch Hose Auger Motor Breckwell Maintenance Tool...

This manual is also suitable for:

Tradition p24iTradition p24fs
