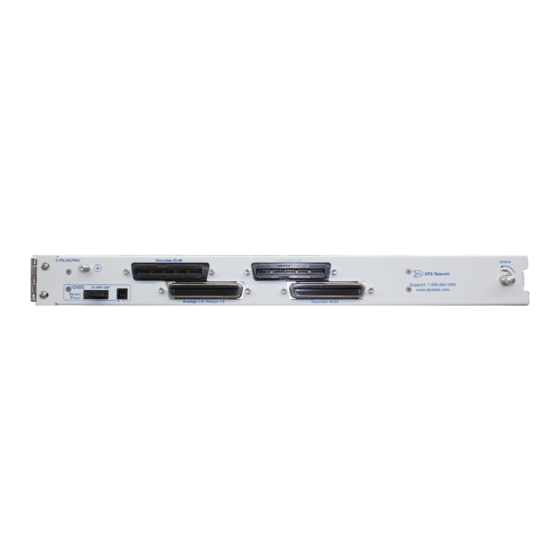

NetGuardian 864 Hinged Back Panel
April 25, 2019
D-PK-NGPAN-12059.00001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetGuardian 864 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DPS NetGuardian 864

Summary of Contents for DPS NetGuardian 864

  • Page 1 NetGuardian 864 Hinged Back Panel April 25, 2019 D-PK-NGPAN-12059.00001...
  • Page 2 DPS Telecom, except as required by United States copyright laws. The material in this manual is for information purposes and is subject to change without notice. DPS Telecom shall not be liable for errors contained herein or consequential damages in connection with the furnishing, performance, or use of this manual.

  • Page 3: Table Of Contents

    Contents Visit our w ebsite at w w w .dpstelecom .com for the latest PDF m anual and FAQs NetGuardian 864A Hinged Surge Panel Overview Shipping List Specifications Hardware Installation Tools Needed Pinout of NetGuardian 864A 4.2.1 Alarm and Control Relay Connector Pinout Table 4.2.2 Discretes 1- 48 Connector Pinout Diagram 4.2.3...

  • Page 4: Netguardian 864A Hinged Surge Panel Overview

    Shipping List While unpacking the NetGuardian 864 Hinged Back Panel please make sure that all of the following items are included. If some parts are missing, or if you ever need to order new parts, please refer to the part numbers listed and call DPS Telecom at (800) 622-3314.
  • Page 5 QTY 3 QTY 4 Metric Rack Screws 3/4-Amp GMT Fuses 2-000-80750-03 2-741-00750-00 QTY 4 QTY 2 Large Power Connector Plugs for Main Power Cable Ties 2-820-00862-02 (Sixteen with hinged panel) QTY 2 Cable, 50 PIN Amph. Male to Female, 3ft. Pads D=PR-971-10A-36 2-015-00030-00...
  • Page 6 Optional Items QTY 2 3/4-Amp GMT Accessory Fuses 15 ft. 50 Pin Male Amphenol Open End Cable 2-741-00250-00 D-PR-957-10A-15...

  • Page 7: Specifications

    Physical Dimensions: 12.5" wide, 6.4" deep, 1.75" tall. Hardware Installation Tools Needed To install the NetGuardian 864 Hinged Back Panel, you'll need the following tools: Phillips No. 2 Screwdriver Small Standard No. 2 Screwdriver Wire Strippers/Cutter Wire Wrap Gun (if hinged wire wrap panel is used)

  • Page 8: Pinout Of Netguardian 864A

    Pinout of NetGuardian 864A Alarm and control relay connectors The NetGuardian 864's discrete alarm inputs, control relay outputs, and first six analog alarm inputs are connected through the two 50-pin connectors labeled "Discretes 1–24" and "Analogs 1–6/Discretes 25–32/Relays 1–8" on the back panel.

  • Page 9: Discretes 1- 48 Connector Pinout Diagram

    ADC** channels 4, 5, 6, and 8 may be unavailable for external use. These analog channels are sometimes configured in hardware for monitoring A and B power feeds, internal temperature, and external temperature. 4.2.2 Discretes 1- 48 Connector Pinout Diagram Fig.

  • Page 10: Analogs 1-6/Discretes 49-64/Relays 1-8 Connector Pinout Diagram

    4.2.3 Analogs 1-6/Discretes 49-64/Relays 1-8 Connector Pinout Diagram Pinout Diagram for Analogs 1-6/Discretes 49-64/Relays 1-8 Connector RTN* is the alarm return pin. Standard configurations have this pin tied to GND. While it is possible to change this configuration to utilize different types of alarms (i.e. TTL, Open Collector, Battery Closure), the hardware must be ordered in that configuration.

  • Page 11: Pinout Of Hinged Surge Panel

    Pinout of Hinged Surge Panel 4.3.1 Connector Pinout Diagram (4 Amphenols) Hinged Surge Panel (front) to External Equipment. Discretes 1-24: Discretes 25-48:...
  • Page 12 Hinged Surge Panel (front) to External Equipment. Discretes 49-64: Analogs 1-6 / Relays 1-8:...

  • Page 13: Connector Pinout Diagram (2 Amphenols)

    4.3.2 Connector Pinout Diagram (2 Amphenols) Hinged Surge Panel (rear) to NetGuardian 864A. Discretes 1-48: Analogs 1-6/ Discretes 48-64/ Relays 1-8:...

  • Page 14: Hinged Surge Front Panel

    Hinged Surge Front Panel Hinged Surge Rear Top/Rear Bottom Panel...

  • Page 15: Instructions For Installing The Hinged Surge Panel

    The Hinged Surge Panel allows for upgrades from a NetGuardian 864A without having to change out the existing wiring. The original amphenol cables from the NetGuardian 864 are now connected to the back of the Hinged Surge Panel. Fig.6.12.1 - Silk screen on the Hinged Pluggable Back Panel indicates which way to turn the black swivel to lock and unlock the gate.
