- Page 1 BM100 Backpack Motorized Mist Sprayer © 2021 Vectorfog® is a registered trademark of Vectornate USA Inc.
- Page 2 INSTRUCTION MANUAL When spraying outdoors, you should only spray for short periods of time and when there is minimal wind. When fogging indoors you should start at the furthest point away from the building and work your way until you get to the entrance or exit. It is essential to read the chemical manufacturer’s instructions before you start using the product, including diluting ratio and safety precautions.
-
Page 3: Specifications
Let the engine heat up for 3-5 minutes before application. The BM100 can be used for spraying chemicals and/or liquids to control pests and weeds in fruit and vegetable gardens, on trees and bushes, citrus, coffee, tobacco, cotton and many other areas. -
Page 4: Product Overview

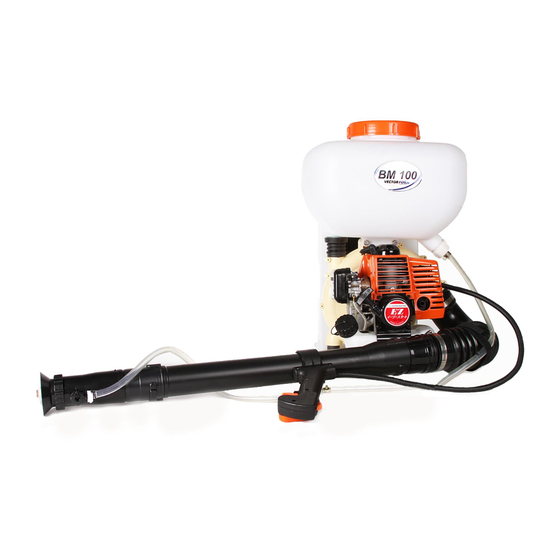

PRODUCT OVERVIEW Container Container Cap Ignition Wire and Plug Starter Grip Choke Knob Adjustment Screws Air Filter Cover Fuel Tank Cap Muffler Pleated Hose Rubber Material Outlet Nozzle Back Plate with Reset Pad Rubber Buffers Pleated Hose Air Pipe for Spray Nozzle Air Pipe Handle Grip Assembly Chemical Hose Valve... -
Page 5: Spare Parts
SPARE PARTS 1. Container 2. Spark Plug 3. Choke Knob 4. Starter Grip 5. Fuel Tank 6. Fuel Tank Plate 8. Motor Cover 7. Muffler... - Page 6 SPARE PARTS 9. Motor 10. Ignition Coil Cap 11. Ignition Coil 12. Blow Fan 13. Mist Spray Nozzle Assembly 14. Air Pipe for Spray Nozzle 15. Pleated Hose 16. Throttle Cable...
- Page 7 SPARE PARTS 17. Chemical Hose Valve 18. Handle Grip Assembly 19. Assembly Tool 20. Chemical Hose 21. Pipe Clip 22. Hose Clip...
- Page 8 ASSEMBLING BM100 The unit is partly disassembled for ease of shipment and must be completely assembled be- fore it is used for the first time. The only tools required for assembly are a Philips (+) screwdriver and a pair of pliers.
- Page 9 CONNECTING THE CHEMICAL HOSE First slide a hose clip onto either end of both chemical hoses. Push one end of the chemical hose onto the stub leading from the solution tank. Using a pair of pliers, open the hose clip and slide it over the hose and stub and close the clip again.
- Page 10 FILLING FUEL AND CHEMICAL TANKS This engine is certified to operate on unleaded petrol and with the mix ratio 50:1. Your engine requires a mixture of gasoline and quality two-stroke engine oil with the classification TC. Use regular unleaded gasoline with a minimum octane rating of 90 RON. If the octane number of the regular grade gasoline in your area is lower use premium unleaded fuel.
-
Page 11: Starting Machine
STARTING MACHINE Before starting, place the unit on a clear patch of ground. Make sure you have a firm foothold, keep a firm grip on the machine and check that there are no objects which could be sucked in by the fan (between engine and back plate). To start the machine, hold the top of the machine with your left hand and put one foot on the base plate to prevent the machine from slipping while starting. -
Page 12: Running The Machine
Keep children and pets away from areas that have just been sprayed. BM100 Backpack Mist Sprayer is a one-person machine. To reduce the risk of eye or other injury from thrown objects, insure that bystanders are at least 50 feet (15m) away during use. -
Page 13: Cleaning The Machine
These gases (e.g. carbon monoxide) may be colorless and odorless. To reduce the risk of serious or fatal injury from breathing toxic fumes, never run the BM100 indoors or in poorly ventilated locations. Ensure proper ventilation when working in trenches or other confined areas. -
Page 14: Product Warranty
PRODUCT WARRANTY This product is warrantied for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced or repaired during this period by the seller or authorized distributor from whom you purchased the unit. Transportation charges or duties shall be borne by Purchaser. - Page 15 NL OFFICE | KOREA OFFICE | US OFFICE NL +31 (20) 899 0992 KOREA +82 (0)70 4694 2489 US +1 305 479 2301 info@vectorfog.com www.vectorfog.com...
