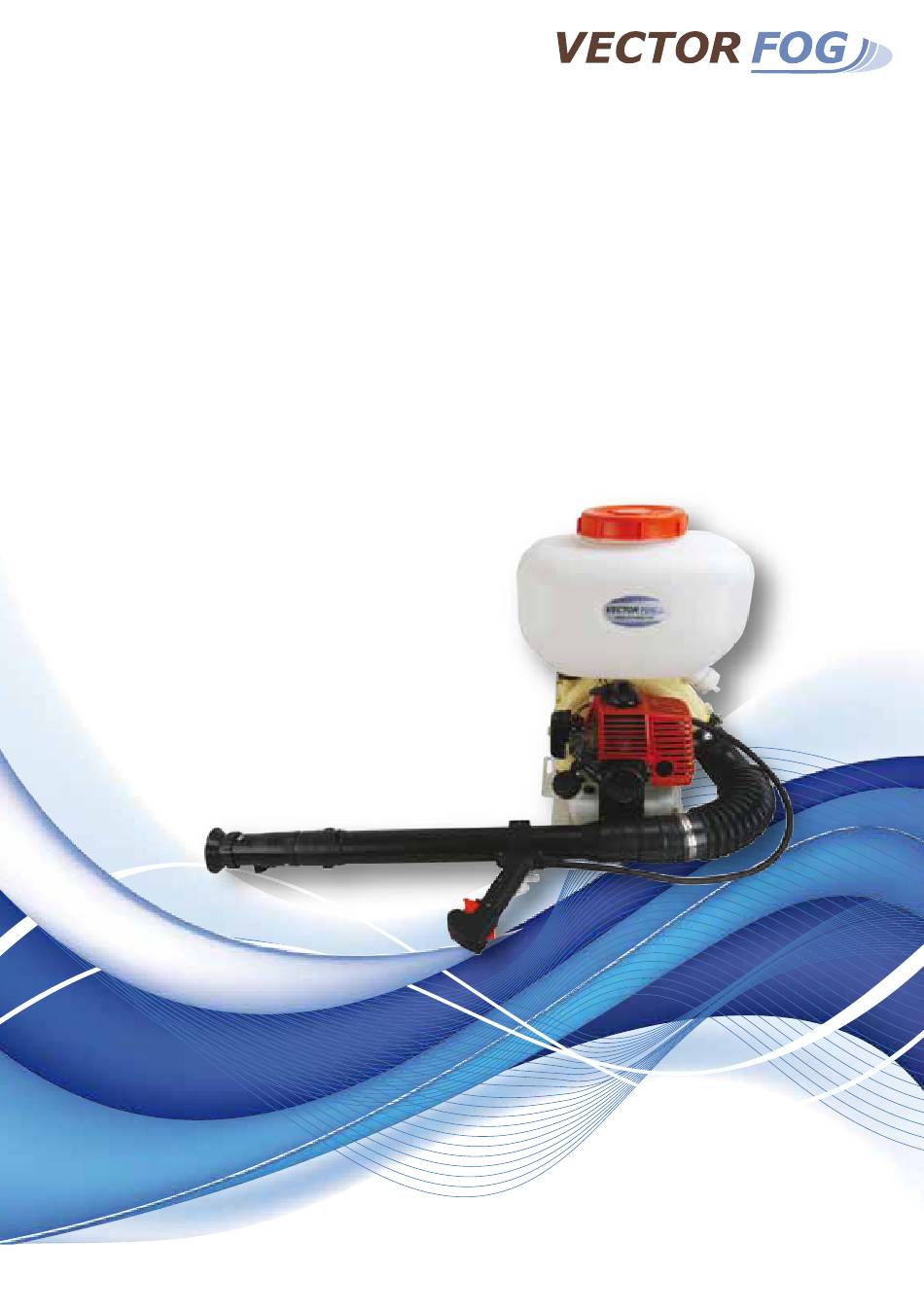

- Page 1 Backpack Motorised Mist Sprayer...
- Page 2 INSTRUCTION MANUAL VECTORFOG BM100 BACKPACK MIST SPRAYER When spraying outdoors, you should only spray for short periods at a time and when there is not much wind. When fogging indoors you should start at the furthest part of the building and work your way back until you get to the entrance or exit.
- Page 3 Tank capacity 16 Litres Engine Air-cooled 2-stroke Gasoline engine Displacemnet 40cc Spray distance 20 Metres Starting system Standard recoil Dimension 41.5 x 50.5 x 71 cm Weight 10.6 kg Application range 2600m² VectorFog™ motorized backpack sprayers are powered by a two stroke engine. The ratio between gasoline and oil is 25:1.
- Page 4 1 =Pleated hose For spraying, dusting or spreading in the desired direction. 2 =Carrying harness For carrying the unit. 3 =Back plate Helps protect the back of user. 4 =Back rest pad Increases carrying comfort. 5 =Air filter cover Covers the air filter element. 6 =Rubber buffers Elements designed to reduce the transmission of vibrations created by the engine to the...
- Page 5 ASSEMBLY The unit is partly disassembled for ease of shipment and must be completely assembled be- fore it is used for the first time. The only tools required for assembly are a Philips (+) screwdriver and a pair of pliers. MOUNTING THE ELBOW To mount the elbow onto the body of the machine first line the elbow up in a position to allow for the pleated hose to point forward.
-
Page 6: Attaching The Straps
CONNECTING THE CHEMICAL HOSE First slide a hose clip onto either end of both chemical hoses. Push one end of the chemical hose onto the stub leading from the solution tank. Using a pair of pliers open the hose clip and slide over the hose and stub and close the clip again. - Page 7 FILLING THE FUEL AND CHEMICAL TANKS This engine is certified to operate on unleaded petrol and with the mix ratio 50:1. Your engine requires a mixture of gasoline and quality two-stroke engine oil with the classification TC. Use regular unleaded gasoline with a minimum octane rating of 90 RON. If the octane number of the regular grade gasoline in your area is lower use premium unleaded fuel.
-
Page 8: Starting The Machine
STARTING THE MACHINE Before starting, place the unit on a clear patch of ground. Make sure you have a firm foothold, keep a firm grip on the machine and check that there are no objects which could be sucked in by the fan (between engine and back plate). - Page 9 To reduce the risk of serious injury from burns, never attempt to refuel the unit until it has been completely removed from the operator. Check for fuel leakage while refuelling and during operation. If fuel or oil leakage is found, do not start or run the engine until leak is fixed and spilled fuel has been wiped away.
- Page 10 Exercise extreme caution when handling chemicals. Follow all safety precautions and instructions laid down by the manufacturer. Avoid contact with chemicals and chemical solutions. Be sure the mistblower is the proper tool for the job. Do not spray flammable liquids; such as gasoline or paint thinner. Such substances create a risk of fire or explosion and may damage the mistblower.
-
Page 11: Product Guarantee
PRODUCT GUARANTEE This product is guaranteed for 12 months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced or repaired during this period by the seller or by Purchaser. The guarantee is subject to the following provisions: Running the machine without cooling for longer periods than recommended in this manual will invalidate this guarantee.
