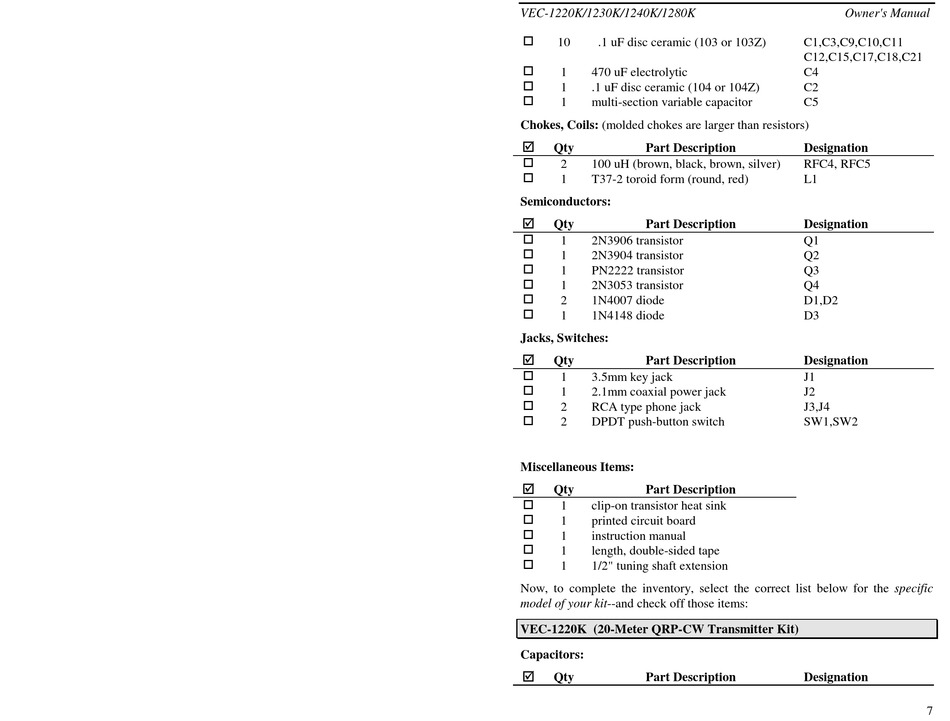

Vectronics VEC-1220K Owner's Manual page 9

VEC-1220K/1230K/1240K/1280K
!
10 .1 uF disc ceramic (103 or 103Z)
!
1 470 uF electrolytic
!
1 .1 uF disc ceramic (104 or 104Z)
!
1 multi-section variable capacitor
Chokes, Coils: (molded chokes are larger than resistors)
"
Qty Part Description
!
2 100 uH (brown, black, brown, silver)
!
1 T37-2 toroid form (round, red)
Semiconductors:
"
Qty Part Description
!
1 2N3906 transistor
!
1 2N3904 transistor
!
1 PN2222 transistor
!
1 2N3053 transistor
!
2 1N4007 diode
!
1 1N4148 diode
Jacks, Switches:
"
Qty Part Description
!
1 3.5mm key jack
!
1 2.1mm coaxial power jack
!
2 RCA type phone jack
!
2 DPDT push-button switch
Miscellaneous Items:
"
Qty Part Description
!
1 clip-on transistor heat sink
!
1 printed circuit board
!
1 instruction manual
!
1 length, double-sided tape
!
1 1/2" tuning shaft extension
Now, to complete the inventory, select the correct list below for the specific
model of your kit--and check off those items:
VEC-1220K (20-Meter QRP-CW Transmitter Kit)
Capacitors:
"
Qty Part Description
Owner's Manual
C1,C3,C9,C10,C11
C12,C15,C17,C18,C21
C4
C2
C5
Designation
RFC4, RFC5
L1
Designation
Q1
Q2
Q3
Q4
D1,D2
D3
Designation
J1
J2
J3,J4
SW1,SW2
Designation
7
