Resistor Color Code - Vectronics VEC-1220K Owner's Manual

VEC-1220K/1230K/1240K/1280K

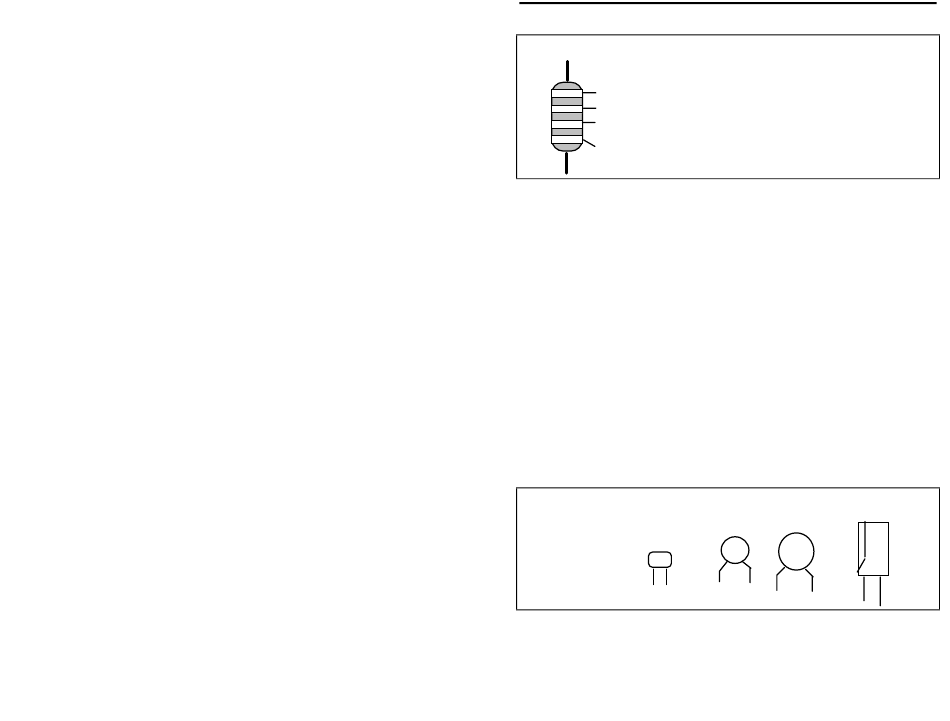

Resistor Color Code

Black
1st Digit Brown = 1 (hundreds)
2nd Digit Red
Multiplier Orange = 3 (10K)
Yellow = 4 (100K)
Tolerence
Green
(gold or silver)
When you look at a resistor, check its multiplier code first. Any resistor with a
black multiplier band falls between 10 and 99 ohms in value. Brown designates
a value between 100 and 999 ohms. Red indicates a value from 1000 to 9999
ohms, which is also expressed as 1.0K to 9.9K. An orange multiplier band
designates 10K to 99K, etc. To sort and inventory resistors, first separate them
into groups by multiplier band (make a pile of 10s, 100s, Ks, 10Ks, etc.). Next,
sort each group by specific value (1K, 2.2K, 4.7K, etc.). This procedure makes
the inventory easier, and also makes locating specific parts more convenient later
on during construction. Some builders find it especially helpful to arrange
resistors in ascending order along a strip of double-sided tape.
Some VEC kits may contain molded chokes which appear, at first glance, similar
to resistors in both shape and band marking. However, a closer look will enable
you to differentiate between the two--chokes are generally larger in diameter and
fatter at the ends than resistors. When doing your inventory, separate out any
chokes and consult the parts list for specific color-code information.
Reading Capacitors:
Unlike resistors, capacitors no longer use a color code for value identification.
Instead, the value, or a 3-number code, is printed on the body.
Value Code
10 pF = 100
Multilayer
100 pF = 101
(270 pF)
1000 pF = 102
271
.001 uF = 102*
.01 uF = 103
.1 uF = 104
As with resistors, it's helpful to sort capacitors by type, and then to arrange them
in ascending order of value. Small-value capacitors are characterized in pF (or
pico-Farads), while larger values are labeled in uF (or micro-Farads). The
transition from pF to uF occurs at 1000 pF (or .001 uF)*.
4
Owner's Manual
= 0 (tens) Blue = 6
Violet = 7
= 2 (K) Gray = 8
White = 9
Silver = 10%
= 5 (1Meg) Gold = 5%
Electrolytic
Ceramic Discs
1 uF
(.001 uF) (.1 uF)
1uF
|
104
102
35V
|
+
-
Today, most
