USE AND CARE GUIDE

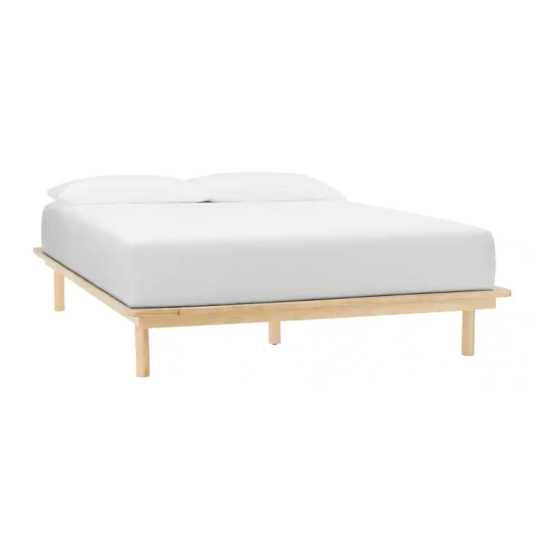

Banwick Solid Wood Platform Bed with Peg Leg - Queen/King
Questions, problems, missing parts?
Before returning to the store, call Customer Service.
8 a.m. –7 p.m., EST, Monday –Friday, 9 a.m. –6 p.m.,
EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Stylewell through the purchase of this Banwick Solid
Wood Platform Bed with Peg Leg - Queen/King. We strive to continually create quality products designed to enhance
your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing stylewell!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StyleWell XMB1015
Summary of Contents for StyleWell XMB1015
- Page 1 HOMEDEPOT.COM THANK YOU We appreciate the trust and confidence you have placed in Stylewell through the purchase of this Banwick Solid Wood Platform Bed with Peg Leg - Queen/King. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents .............. Table of Contents ....................Maintenance Safety Information ................Warranty Care and Cleaning......12 ............ What is Covered ..........What is n ot Covered .............. Pre-Assembly ..........Planning Assembly ..........Hardware Included ..........Package Contents ................Assembly... -
Page 3: Safety Information
Safety Information Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any question regarding the product, please call customer service at 1-877-527-0313, 8 a.m. –7 p.m., EST, Monday –Friday, 9 a.m. –6 p.m., EST, Saturday □... -
Page 4: Warranty
Warranty 1 YEAR WARRANTY WHAT IS COVERED We guarantee this product to be free of manufacturing defects to the original purchaser for one year. WHAT IS NOT COVERED This warranty does not cover commercial use, acts of nature, and abusive use. Pre-Assembly Planning Assembly □... -
Page 5: Package Contents
Pre-Assembly (cont.) Quantity Description Part Screw Screw Ø6X40 Washer Screw Nuts Screw Ø8X45 Allen key D 5mm Allen key D 4mm Wrench D14 Wrench D10 PACKAGE CONTENTS Quantity Description Part Panels Side panels Legs Center support Support legs Slats... -
Page 6: Assembly
Assembly Place side panels (Bx2) horizontally and insert wood dowel (AAx8) into the showed holes. Take out the panels (Ax2) facing up,screw cam bolt (BBx4) and locking pins(DDx4) into the correct holes as shown photos. - Page 7 (Cont.) (Cont.) Assembly Assemble legs to side panels(Bx2). Place the legs(Cx4) vertically,attach side panels(Bx2)to legs(Cx4) with screw(MMx8),use allen key(NN)to drive screw(MM) as shown. Take out center support(D),fasten support legs (Ex2) to center support(D) with screw(GGx4).Use allen key(OO) to drive screw(GG).
- Page 8 (Cont.) (Cont.) Assembly Assemble panels(Ax2) to side panels (Bx2). Attach panels(Ax2) from step 2 to side panels(Bx2) via cam bolts(BB) & locking pins(DD). Put the locking nuts (EE) together with locking screw (FF) into the large round holes and go through the lockin pins(DD) in shown photos,use wrench(PP) to drive locking screw(FF) tightly.
- Page 9 (Cont.) (Cont.) Assembly Assemble hinge(HH) to panels (Ax2) via screw (II) and fasten screw(II) tightenly.
- Page 10 (Cont.) (Cont.) Assembly Attach center support (D) from step 4 to hinges (HH) from step 6,fasten screw(JJ) via screw nut(LL) fitted with washer(KK) by wrench(QQ) and allen key(OO).
- Page 11 (Cont.) (Cont.) Assembly Lay the 2 sets of slat (F) to fit on the rail on the sideboards. Check and ensure that the designated slat on each set is firmly affixed to the raill on the sideboard. Remove adhesive covering from the 2 pieces of slate. The assembly of the bed platform is complete.
-
Page 12: Maintenance
Maintenance □ Keep the product away from direct heat and sunlight. □ Prolonged exposure to heat sources may cause scorching, or even cause color to fade. □ Regular vacuuming or light brushing helps to remove dirt and prevent soil build-up, which increases the appearance wear. - Page 13 Questions, problems, missing parts? Before returning to the store, call Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future...
